0-54
REXTON 2007.09
8710-02

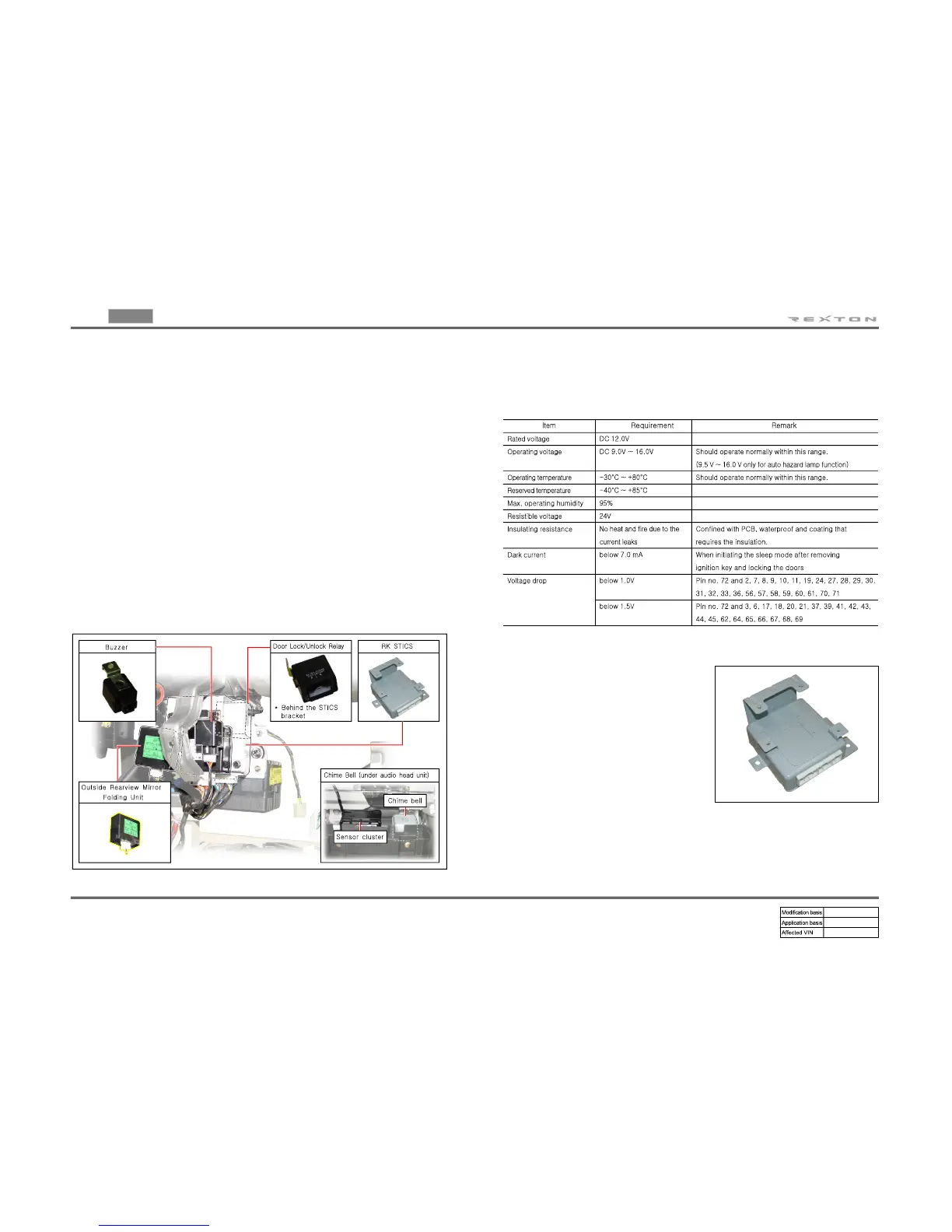

CIRCUIT
(3) CIRCUIT DESCRIPTION
A. OVERVIEW
The RKSTICS (REKES + STICS (Super Time & Integrated Control System)) communicates
with the transmitter (remote controller) and other electronic systems to transmit and receive
the data. The STICS also includes a diagnosis function that can inspect the error for related
devices.
B. MAJOR CHANGES
▶Integration of Auto Light Sensor and Rain Sensor
The auto light sensor integrated rain sensor communicates with STICS.
▶Auto Washer Coupled Wiper
When pressing the auto washer switch, the washer fluid is sprayed on the windshield and
the wiper sweeps off 4 times, and then the washer fluid is sprayed and the wiper sweeps
off 3 times again.
▶Communication with SPWM
The communication with SPWM is added due to the introduction of easy access function to
SPWM.
▶SPWM Unit
C. SPECIFICATIONS
▶Electrical Performance
- Electrical Performance
- Characteristics of Radio Wave
Transmitting frequency: 447.800 ±
0.0125 MHz
Channel width: below 12.5 KHz
Frequency bandwidth: below 8.5 KHz
Modulation method: FSK (Frequency
Shift Keying)
Receiving distance: Approx. 10 ~ 15 m
(In case there are not obstacles around
the system)
·
·
·
·
·
To Next Page
