0-56
REXTON 2007.09
8710-02
CIRCUIT
Wiper MIST and Front Washer Coupled Wiper
▶
The wiper relay is turned on at 0.3 seconds after from the time when the washe
switch is turned on for 0.1 to 0.59 seconds (T2) with the ignition switch “ON”, .
If the wiper parking terminal gets off, the wiper relay is turned off.
The wiper relay is turned on at 0.3 seconds (T1) after from the time when the washe
switch is turned on for more than 0.6 seconds (T2) with the ignition switch
“ON”. The wiper relay gets on 3 times immediately after turning off the washer
switch.
When the washer switch is turned on for more than 0.6 seconds during the wipe
operation by AUTO switch, the wiper operates three times. When it is turned on for a
certain period of time (0.1 to 0.59 seconds), the wiper operates once.
-
-
-
Auto Washer and Wiper Switch
▶
When the auto washer switch is turned on with the ignition switch “ON” and the
AUTO switch “OFF”, the washer motor output gets ON for 1 second. If the
system recognizes the output signal, the wiper relay output gets ON during 4 cycles
and the washer motor output gets ON for 1 second. Then, the wiper relay output gets
OFF after 3 cycles.
The auto washer switch output is overridden during the washer coupled wipe
operation.
The auto washer switch input is overridden during the auto washer coupled wipe
operation.
The auto washer switch input is overridden during the rain sensor coupled wiper o
vehicle speed sensitive AUTO wiper operation.
When the AUTO switch input is received during the auto washer operation, the auto
washer operation stops and the auto INT operation is activated.
-
-
-
-
-
F. FUNCTIONS AND SPECIFICATIONS ▶Rain Sensor Coupled Wiper and Auto Light Control
If equipped with RKSTICS rain sensor, it has following operation system.

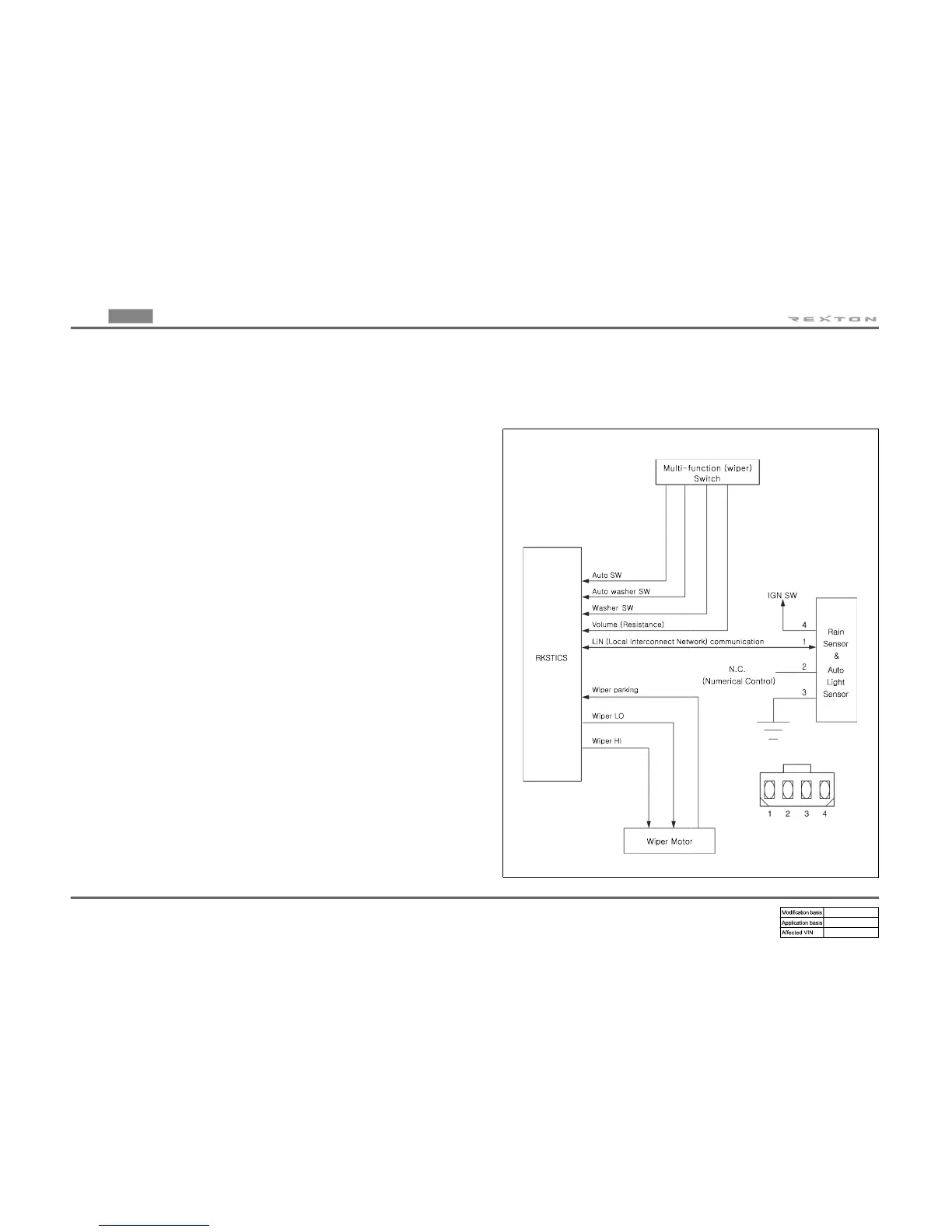

- System layout
To Next Page
