0-84
REXTON 2007.09
8930-01
CIRCUIT
▶AUX Termainal (for vehicle with AV system)
The AUX terminal is located between the seat warmer switches on the lower side of the
AV head unit and it is installed only for the vehicle with the AV system. It is composed o
AUDIO-R/AUDIO-L and VIDEO terminal which can be connected to a digital camera,
camcoder and other digital devices to play the video through the AV system.

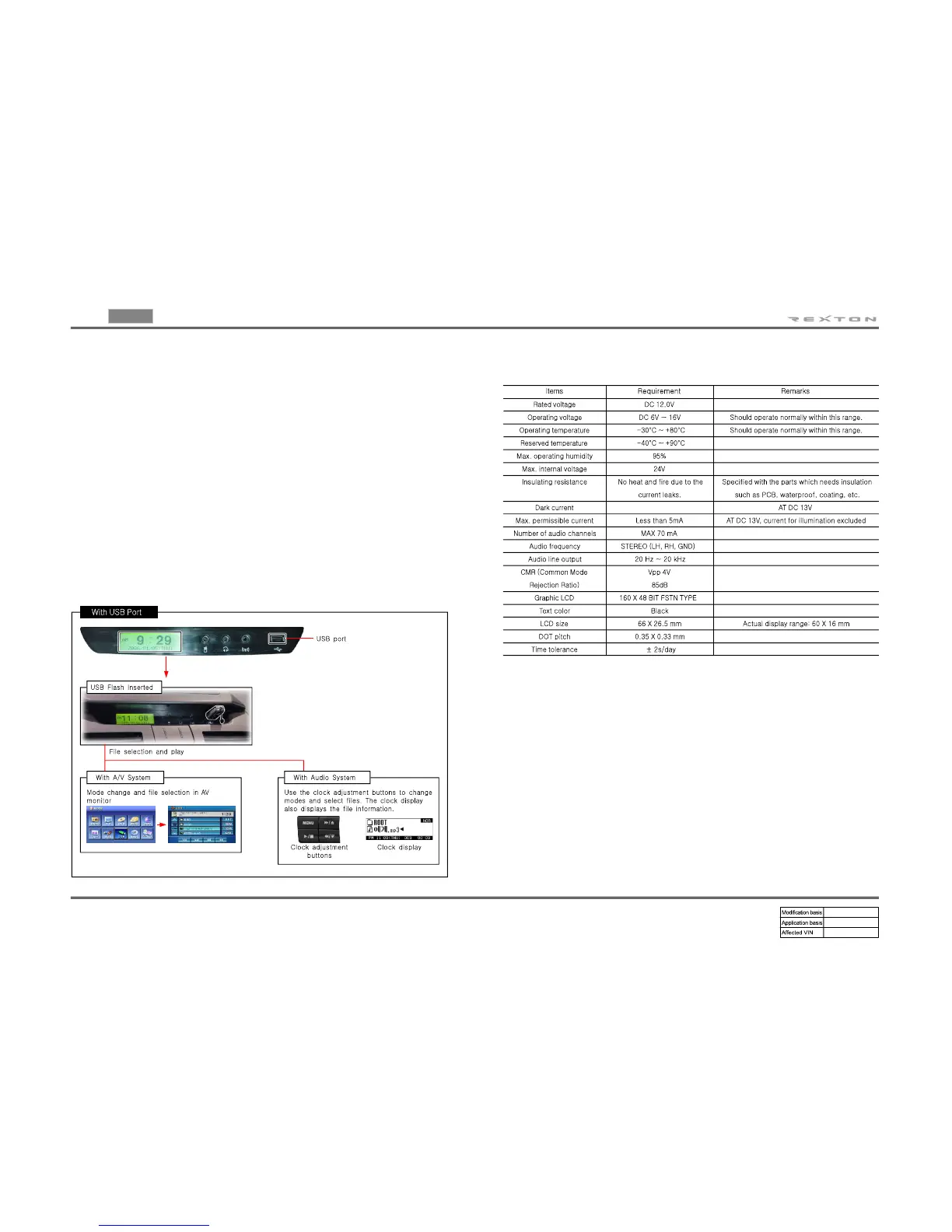

B. MULTI JACK STATION
▶Overview
The multi jack station is an integrated unit of digital clock and various audio play devices. It
also includes the stereo jack which can be connected to an external audio device and the
MP3 USB jack which can be connected to the USB flash drive for playing music through
the speakers on vehicle.
▶Functional Specification
- Functions
Clock (including date and year) adjustment
Audio output through the stereo jack
File search and play through the USB flash drive
·
·
·
▶Electrical Performance
To Next Page
