0-35
CIRCUIT
REXTON 2007.09
8010-01
(3) CIRCUIT DESCRIPTION
A. INSTRUMENT CLUSTER
The instrument cluster uses the CAN communication.
The HDC warning lights (green & red) are added since the HDC function has been introduced
into ESP system.

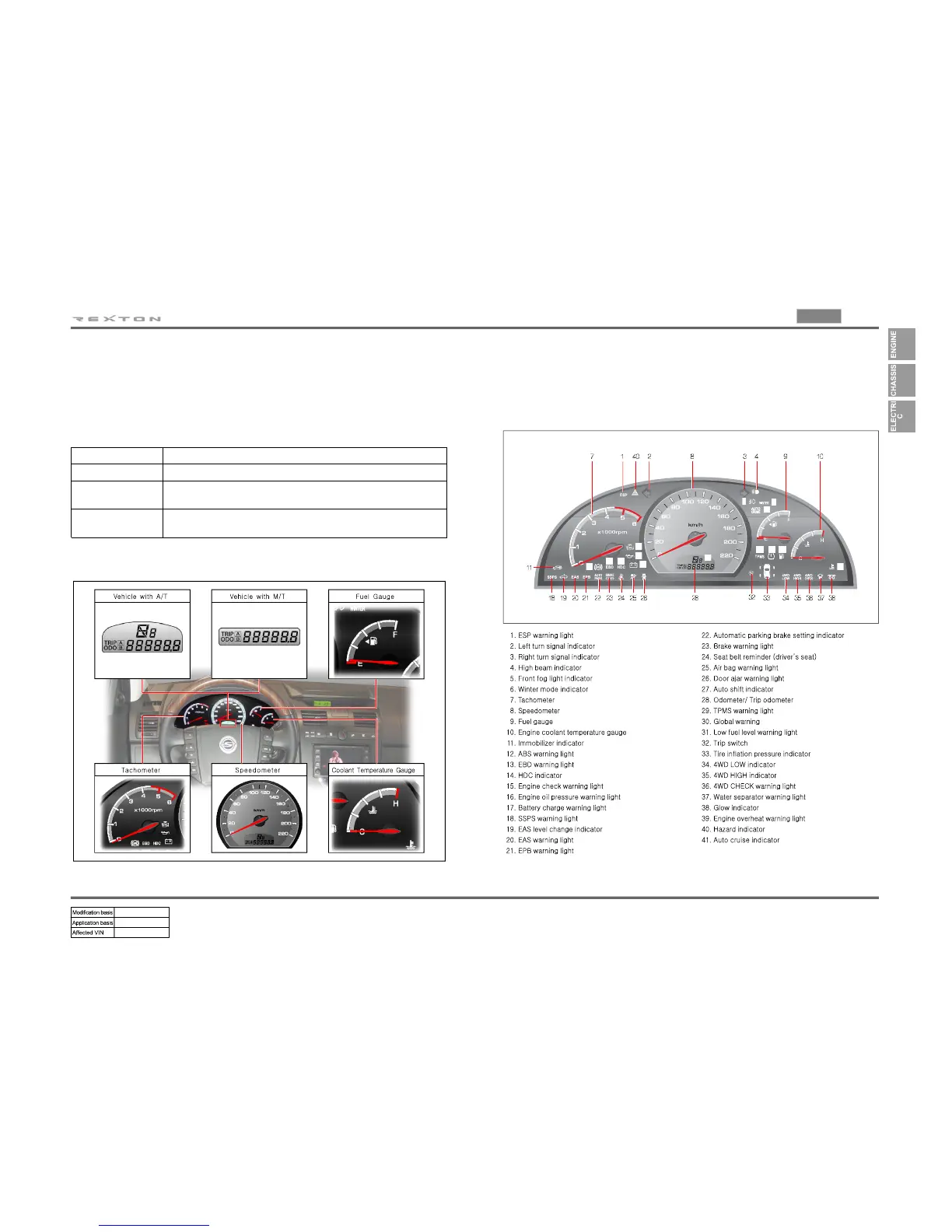

▶Location and Configuration
B. DESCRIPTIONS OF INDICATOR DISPLAY
▶Deluxe Version
Green Turn signal, 4WD HIGH, WINTER, Parking Brake, HDC, Front fog light
Blue High beam
Red Seat belt, Battery charge, 4WD CHECK, Oil pressure, Door ajar, EBD,
Brake, Airbag, Water separator, HDC, Coolant temperature
Amber Engine CHECK, ABS, Global warning, TPMS, Fuel, Pre-glow, ESP,
4WD LOW, SSPS, Immobilizer
