GENERAL INFORMATION
REXTON 2007.09
0000-00
GENERAL INFORMATION

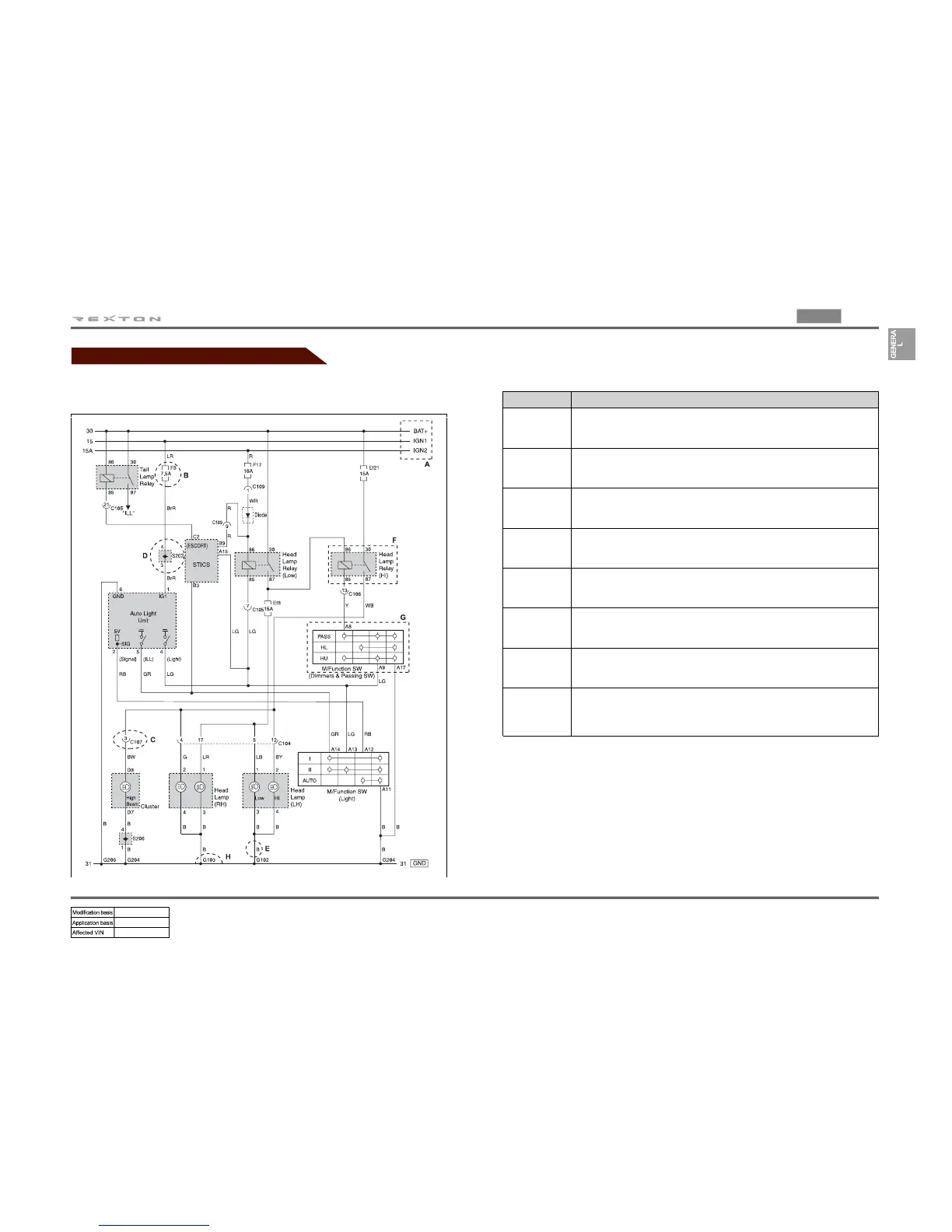

1. HOW TO READ ELECTRICAL WIRING DIAGRAM
Position Explanation
A
- Upper horizontal lines : Power supply lines
- Power supply lines : 30, 15, 15A, 15C, 58
B
- Ef20 or F2 : Fuse Number
·Ef20 : Fuse No #20 in engine room compartment
·F2 : Fuse No #2 in passenger room compartment
C
- Connector (C101 ~ C903)
·Connector No C203 terminal No1
·Refer to Major Connector Position (Section 2)
D
- S201 : Splice pack (S201 ~ S207)
·Refer to Major Splice Pack Position (Section2)
E
- Wiring Harness Color
·Refer to Wiring Harness Color Abbreviation
F
- Internal circuit of component (Relay)
(Component Name and Terminal Number)
G
- Internal circuit of component (Switch)
(Component Name, Terminal Number and Connecting Wiring Circuit)
H
- Lower horizontal line : Ground line
·Ground position (G101 ~ G402)
·B : Body Ground
·Refer to Major Ground Position (Section2)
