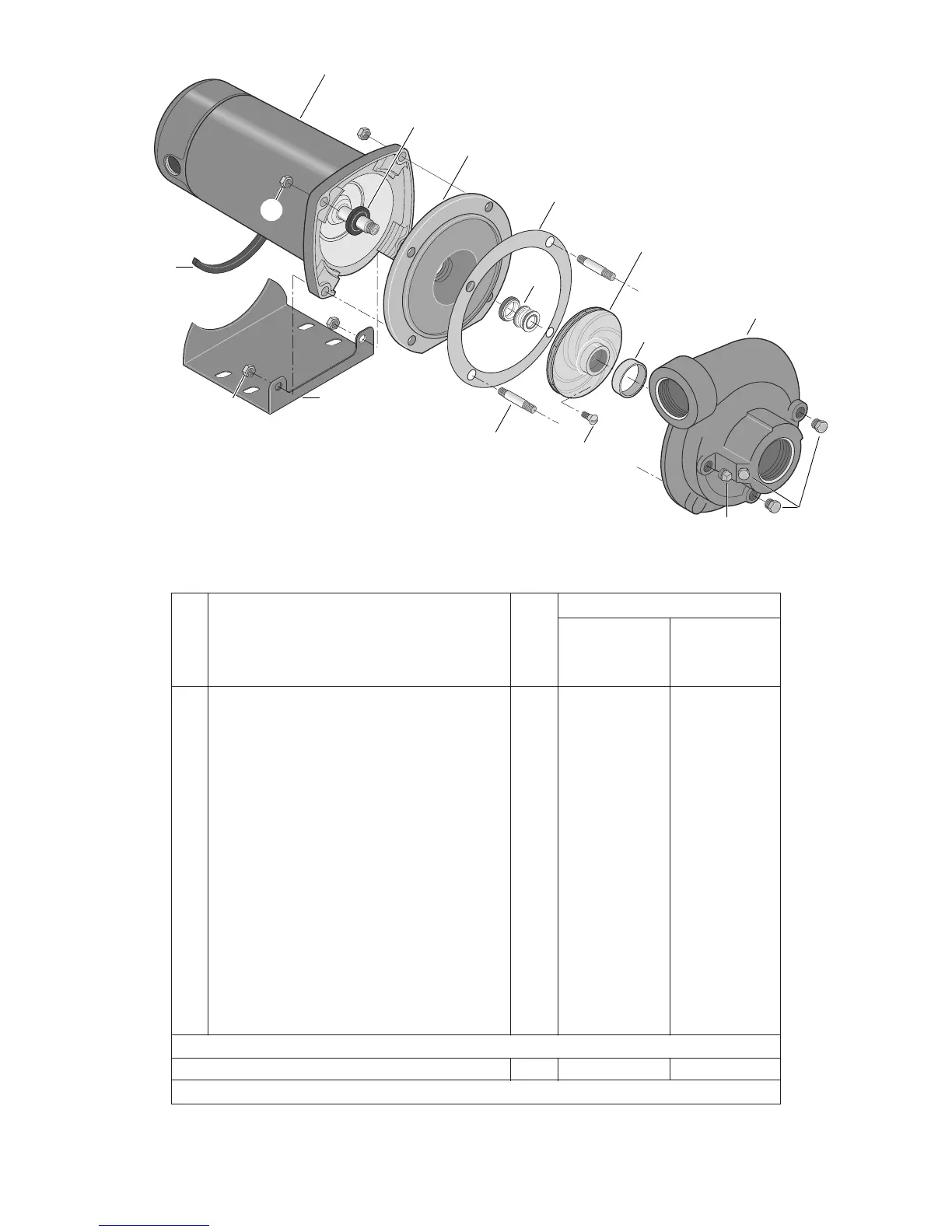

REPAIR PARTS LIST – “J” SERIES - MEDIUM HEAD
MOTOR AND HORSEPOWER
JMF-40L JMG-41L
Key Part No. JMF3-40 JMG3-41
No. Description Used 1-1/2 HP 2 HP
1 Motor, 115/230V, 1 Phase 1 J218-601PKG J218-883APKG
1 Motor, 230/460V, 3 Phase 1 AP100FL AP100GL
2 Water Slinger 1 17351-0009 17351-0009
3 Seal Plate 1 C3-52 C3-52
4 Gasket, Seal Plate 1 C20-21 C20-21
5 Shaft Seal 1 U109-6A U109-6A
6 Impeller, Single Phase 1 C105-114PC C105-114PNA
6 Impeller, Three Phase 1 C105-114PCA C105-114PNA
6A Impeller Screw 1 C30-14SS C30-14SS
7 Volute Assembly with Wear Ring 1 C101-123 C101-123
7A Wear Ring 1 C23-19 C23-19
8 Pipe Plug, 1/4” NPT Sq. Hd. 1 U78-57DT U78-57DT
9 Pipe Plug, 1/4” NPT Hex Hd. 3 U78-941ZPV U78-941ZPV
10 Base with Motor Pad 1 J104-9 J104-9
10A Motor Pad 1 C35-5 C35-5
11 Stud, 3/8 - 16 x 1-13/16” 4 U30-35SS U30-29
12 Hex Nut, 3/8 - 16 4 U36-38ZP U36-38ZP
SERVICE KIT
Seal and Gasket Kit 1 PP1700 PP1700
NOTE: † Included in Seal and Gasket Kit.
* For repair or service to motors, always give the motor Model Number and any other data found
on the Motor Model Plate.
