3 Rev. 47

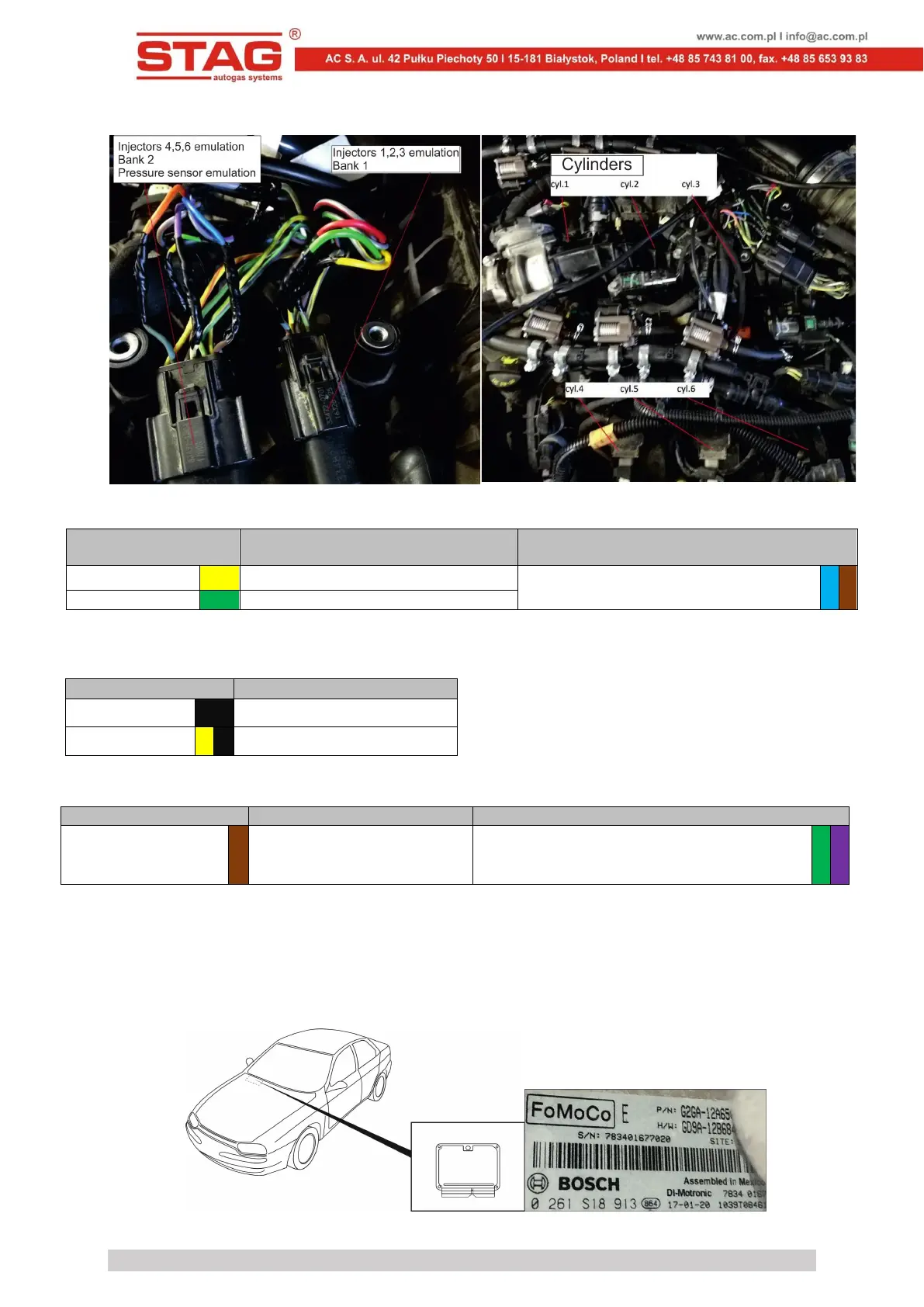

3. Fuel pressure sensor emulation method
Make a connection at the connector shown on the picture (Chapter 2) according to the table below.
4. Dedicated connections
4.1. OBD communication connection
4.2. Standard connection
STAG wire colour
Connection
Wire color nad Pin number
Brown RPM (connector next to sesnor)
Green - violet
PIN-1
NOTE: If the wire colors are not compatible with the table, you should pay attention to the pin number of
the ECU controller.
5. Additional information
5.1. Location of the ECU
STAG wire colour Connection description
Wire color of pressure sensor and PIN number
on connector
Yellow To the pressure sensor
Blue-brown
PIN-7
Green
To the ECU controller
STAG wire colour
Pin numer on OBD connector
Black 6
Yellow-black 14
