3050 Lever Extender Plus, V 1.0, January 30, 2023

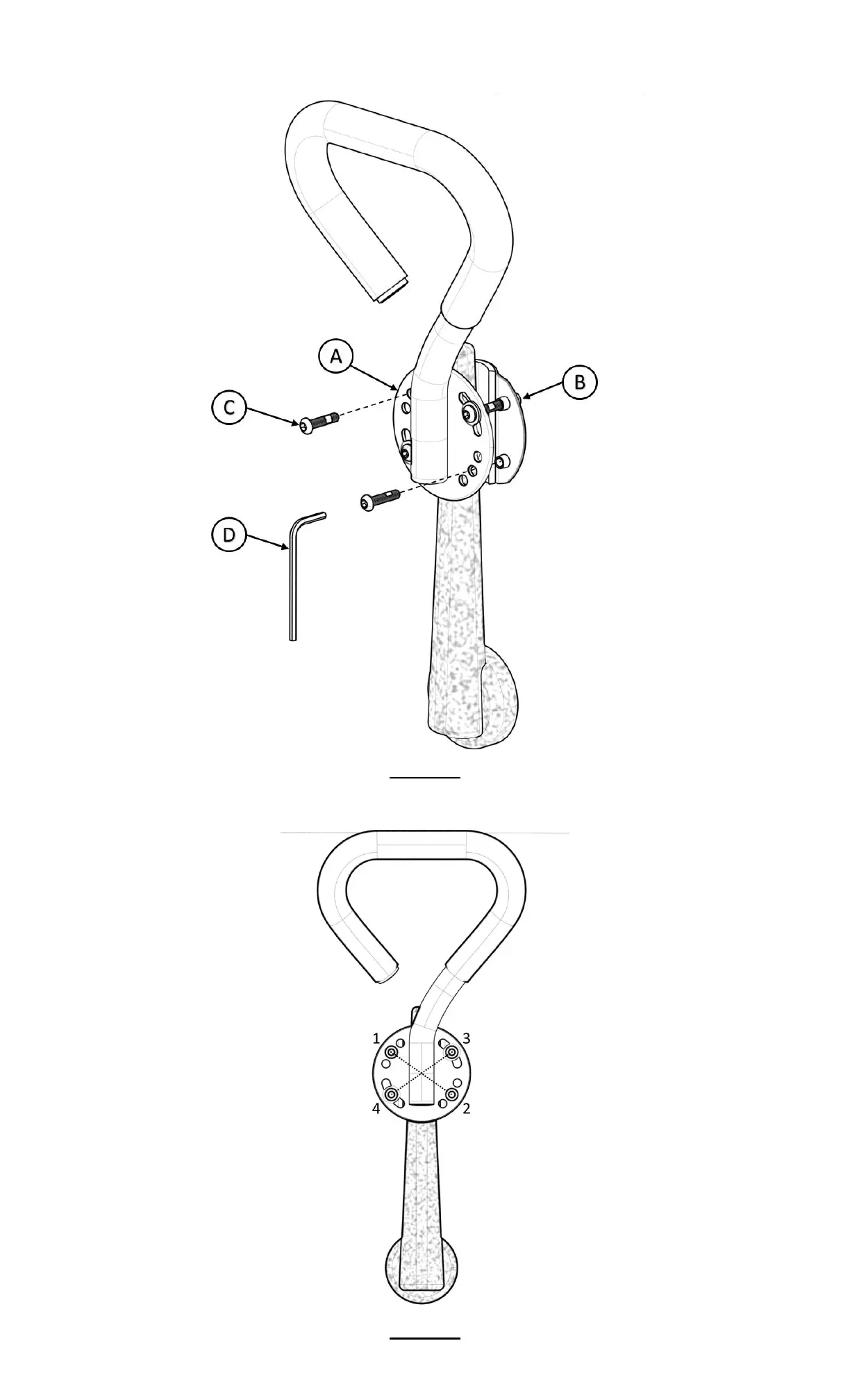

3. Using the Assembly Positions diagram above, rotate A to your desired orientation until the holes are aligned with the
holes in B and insert C as shown in FIGURE 3. Tighten C with the tool provided (D) incrementally.
FIGURE 3
Note: Evenly tighten bolts (C) in an X pattern as shown in FIGURE 4.
FIGURE 4
