MODEL 600 SIENA
600 MANUAL TO POWER SWIVEL CONVERSION KIT
7

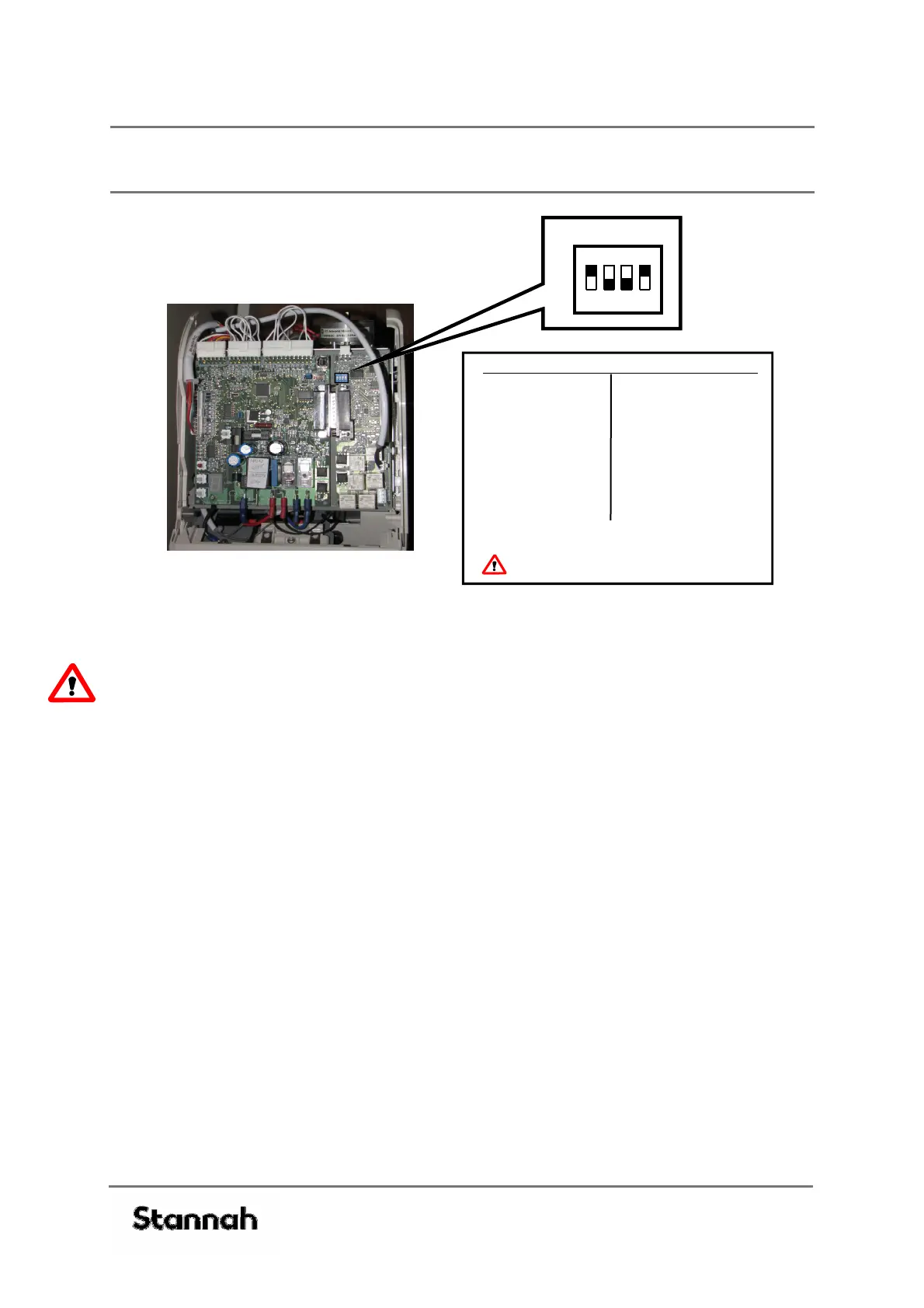

47. Set swivel switches on options PCB to achieve desired swivel options. Fig 15
48. Refit and connect carriage batteries and refit carriage covers
IMPORTANT!
IT SHOULD NOT BE POSSIBLE TO MANUALY SWIVEL THE CHAIR DOWN THE STAIRS.
49. Switch on and carry out full functional and safety checks prior to hand-over to the
user.
POWERED SWIVEL DIRECTION SETTING
R/H CHAIR L/H CHAIR
1 WAY SWIVEL* 1 WAY SWIVEL*
SWITCH F = OFF SWITCH G = OFF
SWITCH G = ON SWITCH F = ON
2 WAY SWIVEL 2 WAY SWIVEL
SWITCH F = ON SWITCH F = ON
SWITCH G = ON SWITCH G = ON
SWITCH OFF BEFORE SETTING SWITCHES
*ENABLES SWIVEL AT TOP ONLY
E F G H
SW7
1 2 3 4
ON
Fig 15
