Star Micronics TUP500 series - Operation Board

TUP500 Series Product Specifications 12-8

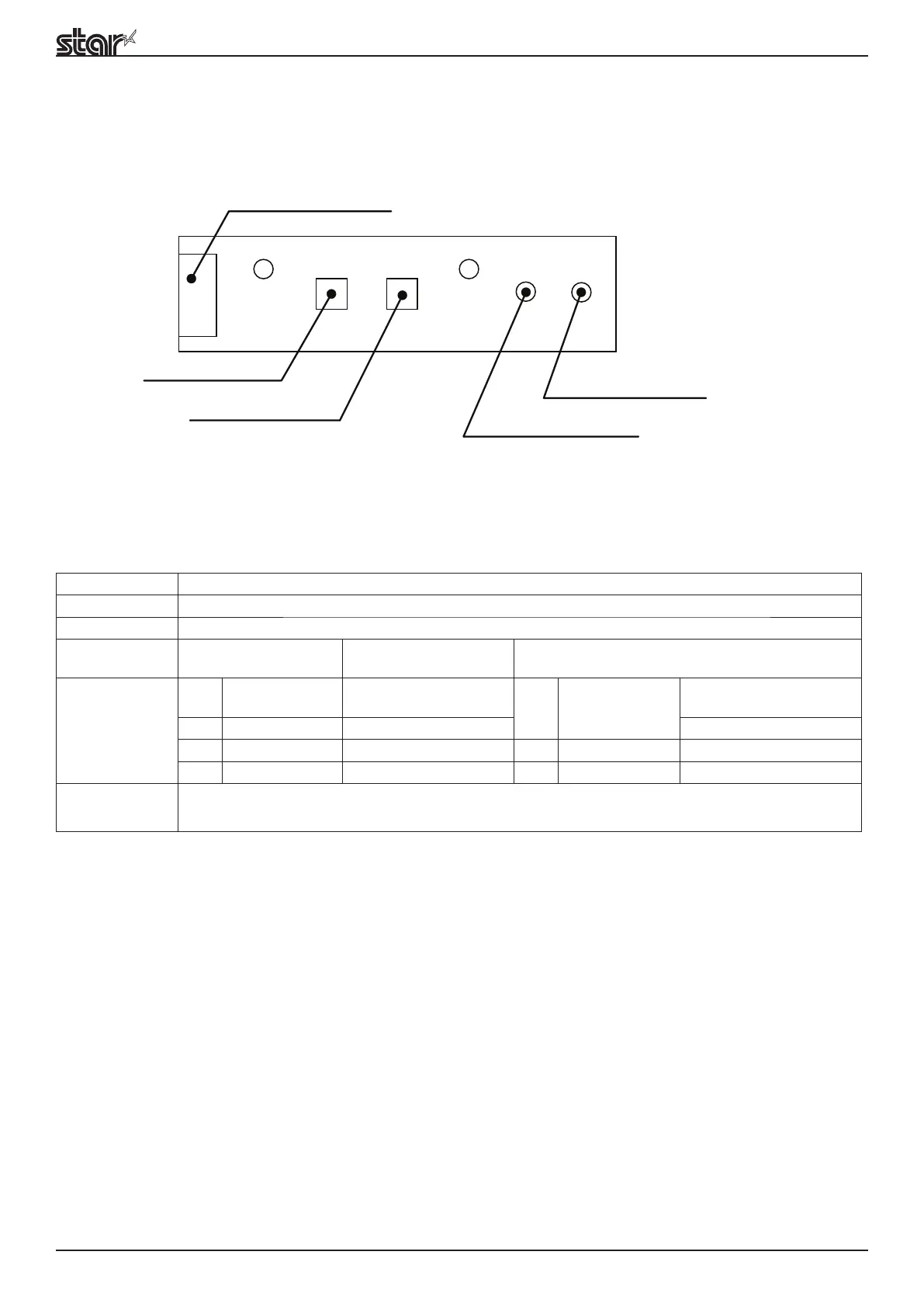

12.1.3. Operation Board
Connector 1
Use Connection with Main Board
Part ID CN1
Pin Count 6 Pins
Connector
Used
S6B-PH-K-R Manufacturer JST (Corporation)
Pin Signal
Names and
Functions
No. Signal Name
Function (General
Description)
No. Signal Name
Function (General De-
scription)
1 3.3V 3.3V 4 SW1 Paper Feed Switch
2 LED1 POWER LED (Green) 5 SW2 Error Cancel Switch
3 LED2 ERROR LED (Red) 6 S-GND S-GND
Remarks
Compatible Housing: PHR-6R
Compatible Housing: 30721760 Cable U 6X220CC TUP9


LED2: ERROR LED (Red)
LED1: POWER LED (Green)
CN1: For Main Board Connection
SW1: Paper Feed Switch
SW2: Error Cancel Switch
