This document provides assembly instructions and important information for the StarEcho outdoor gazebo, model PT0148A2S.

Function Description:

The StarEcho gazebo is designed for decorative purposes and sunshade in outdoor settings. It provides a covered area for relaxation and entertainment, enhancing the aesthetic appeal of a patio or garden. The structure is intended for personal, residential use and is not meant for commercial, contract, or other non-residential purposes. It offers a temporary shelter from the sun and light precipitation, but it is not designed to withstand severe weather conditions such as high winds, heavy rain, or snow.

Important Technical Specifications:

While specific dimensions are not provided in the manual, the parts list indicates a structure composed of various beams, posts, and canopy elements. The gazebo utilizes steel components for its frame, which are treated with rust-inhibiting paint. The fabric used for the canopies (Big Canopy O1 and Small Canopy O2) and netting (P1) meets CPAI-84 specifications for flame resistance, though it is not fireproof. The fabric is water-resistant but not waterproof, meaning it may leak during exposure to precipitation. The assembly involves bolts (M6x18mm) for securing connections and stakes for ground attachment on soft surfaces.

Usage Features:

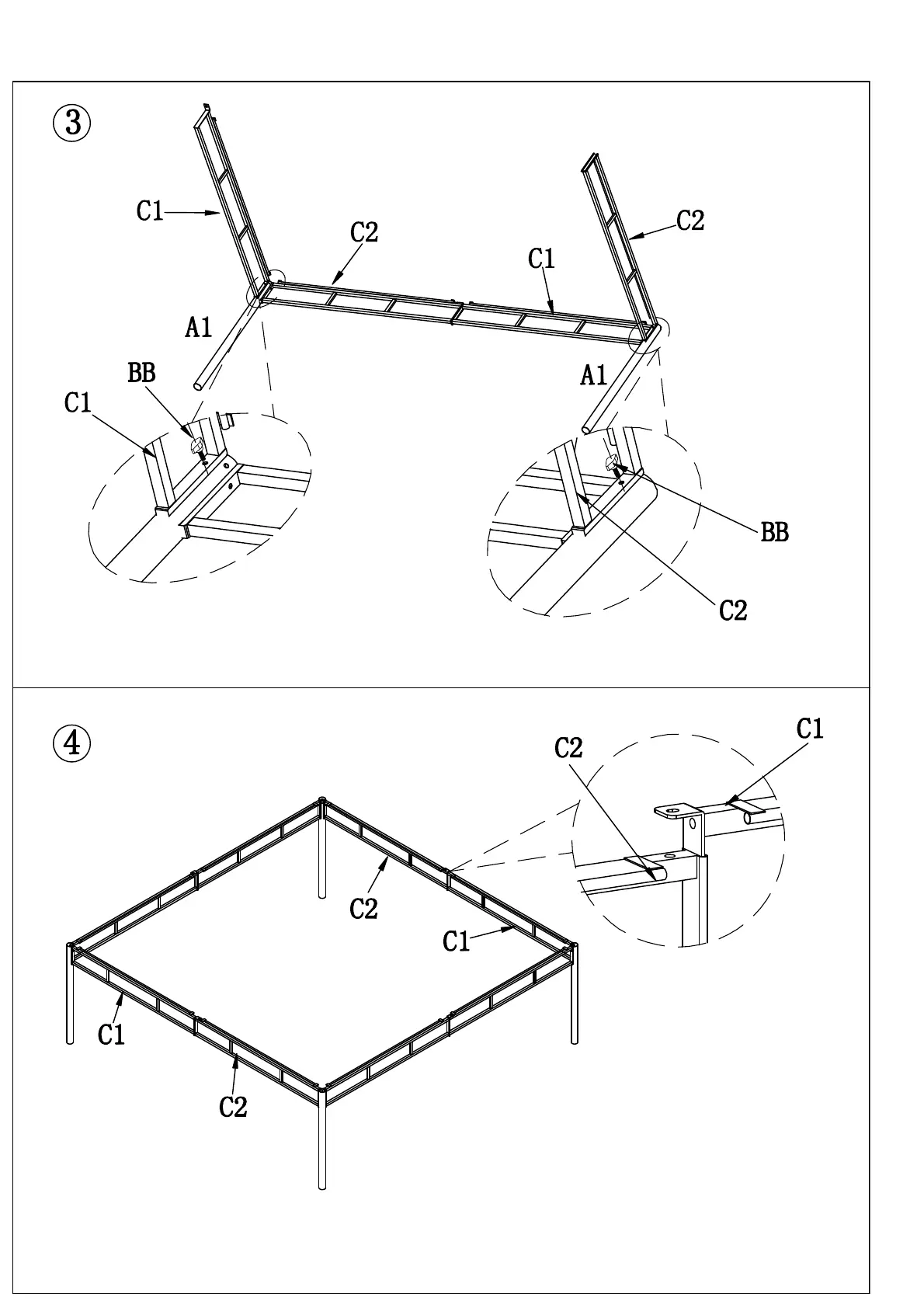

Assembly: The assembly process requires at least two people due to the unit's weight. It should be assembled on level ground, at least 6 feet away from obstructions like fences, garages, houses, overhanging branches, laundry lines, or electrical wires. The manual provides a step-by-step guide for connecting various components, including Top Leg Posts (A1), Lower Leg Posts (A2), Across Beams (C1, C2), Upper Slant Bars (G1), Lower Slant Bars (G2), Upper Top Bars (H1), Lower Top Bars (H2), Short Extension Tubes (K4), Long Extension Tubes (K5), and a Top Connector (J). The canopies (O1, O2) are placed on the roof frame, and netting (P1) is hung from netting rods using rings. The structure is secured to the ground using stakes (II) for soft surfaces; for hard surfaces like decks or concrete, alternative attachment methods such as expansion bolts must be purchased locally.
Sunshade and Decoration: The primary function is to provide shade and serve as a decorative element in an outdoor living space.
Weather Limitations: The gazebo is not designed for inclement weather. Users are advised to remove all excess snow from the roof and not leave the gazebo exposed to high winds to prevent damage.
Safety Precautions: Users should wear protective gloves during assembly due to potentially sharp edges. Children and pets must be kept away from the assembly area. Climbing on top of the gazebo is strictly prohibited due to the risk of serious injury.
Flame Resistance: The fabric is flame-resistant according to CPAI-84 standards but will burn if in continuous contact with a flame source. All flame and heat sources must be kept away from the gazebo fabric. Applying foreign substances to the fabric may compromise its flame-resistant properties.

Maintenance Features:

Rust Prevention: The steel components are treated with rust-inhibiting paint. To minimize surface oxidation (rusting), care should be taken during assembly and handling to avoid scratching the paint. Any scratches or damage should be immediately touched up with rust-inhibiting paint.
Rust Removal: Surface rust can be removed with a light application of common cooking oil. Taking measures to prevent oxidation is crucial, as dripping rust can cause damaging stains on decks or patios.
Cleaning: Stains should be wiped off as quickly as possible with a damp cloth. If necessary, a mild solution of soap and water can be used, followed by thorough rinsing and complete drying.
Bolt Tightness: All bolts should be periodically checked and ensured to be well-tightened during use to maintain structural integrity.
Warranty: The item comes with a one-year limited manufacturer's warranty from the date of purchase, covering defects in workmanship and materials, provided it was factory-sealed and used for personal, residential purposes. The warranty does not cover items used for commercial purposes, damage from acts of nature, vandalism, misuse, improper assembly, or corrosion/rusting of hardware. Proof of purchase is required for warranty claims. Replacement parts for defective merchandise will be provided by StarEcho (at their option), but transportation and delivery costs, as well as assembly/disassembly costs, are the purchaser's responsibility. "Open box," previously-returned, or "clearance" items, or items outside the warranty period, may obtain replacement parts at a nominal cost if the product is still in current production.
