7
solid wood stud
(2” x 4”)
Use commercially available stud nder to locate stud centers.
7 of 13
www.stcny.com
Ø 5/32” (4 mm)
wood drill bit
!
Avoid drilling near electrical wiring and water pipes. Mount must be attached to a weight bearing wall
and must be installed directly onto center of wood stud. Failure to observe all safety precautions can
result in serious physical injury and/or property damage. Consult a professional installer or call STC
Customer Care at (800) 293-2923 if you have any questions.
a
attach wall plate
to wood stud
!
CAUTION: Wear safety glasses
when operating power tools.

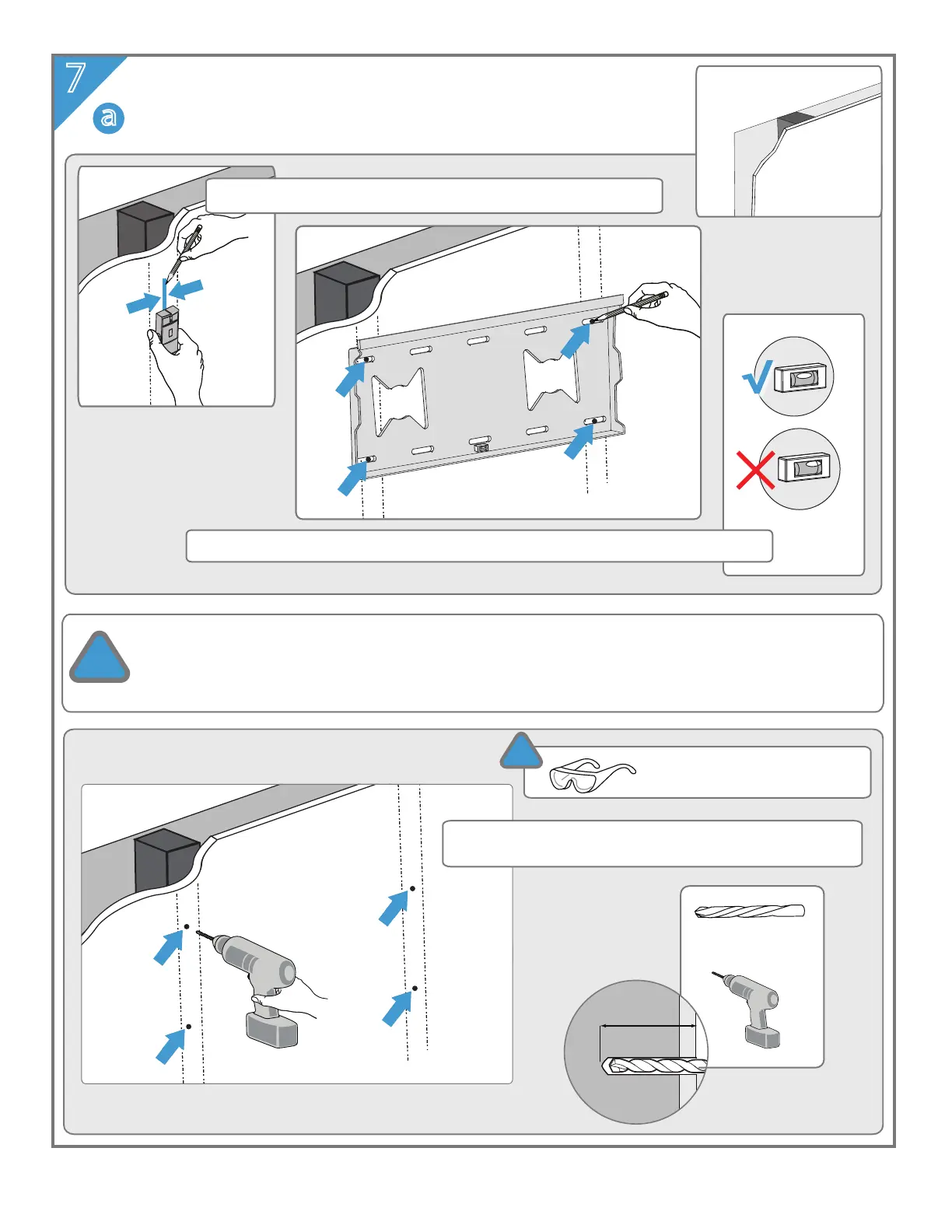

Use built in level. Position wall plate so bubble is centered. Mark holes as shown.
Use 5/32” (4 mm) wood drill bit to drill 3“ (76 mm) pilot holes.
Then proceed to step 7.
