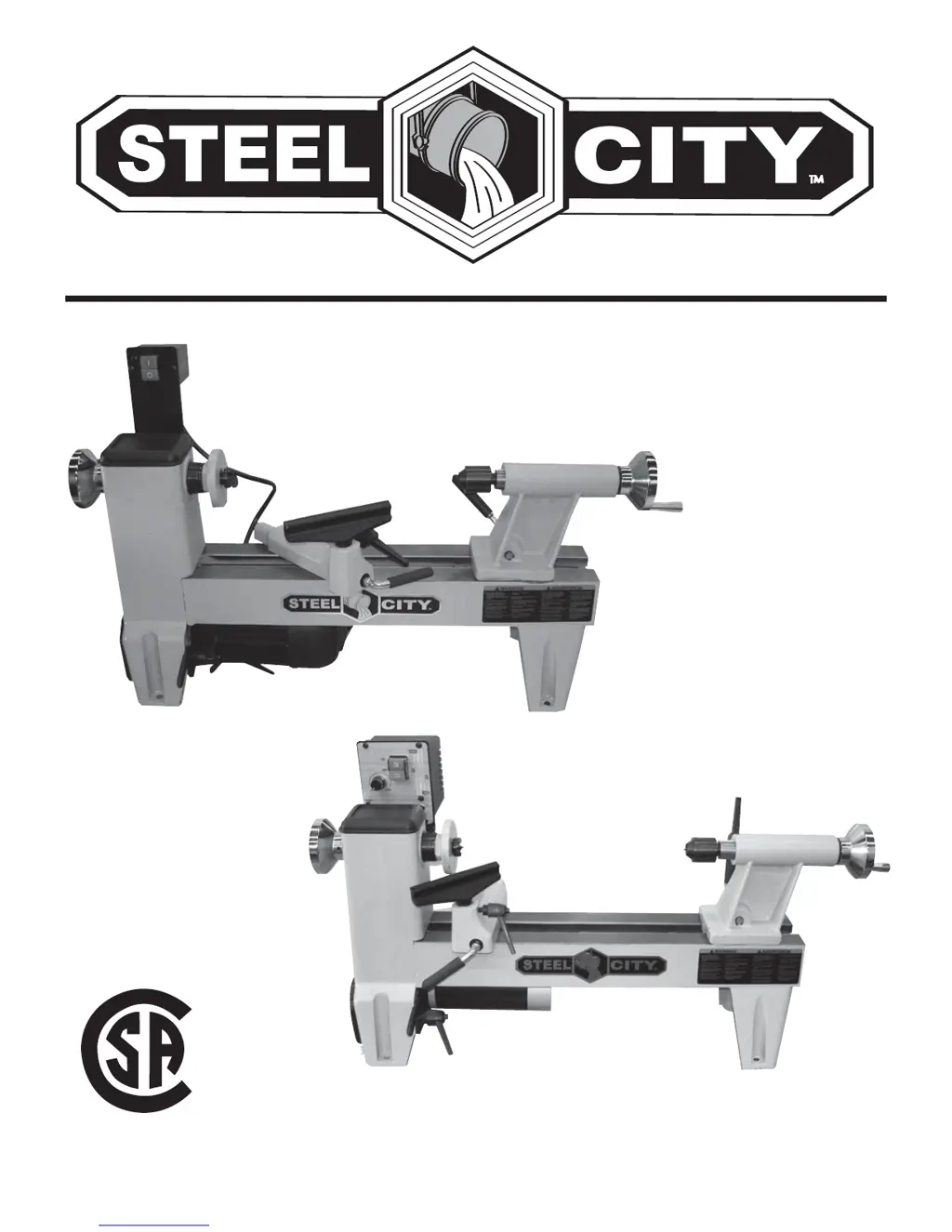

Steel City 60170 - User Manual

Questions and Answers

K
Katherine HopkinsJul 31, 2025
Why is my Steel City 60170 Lathe vibrating so much?
- J
  Joseph BakerJul 31, 2025
  If your Steel City Lathe experiences excessive vibration, several factors could be the cause. It might be due to a warped or flawed workpiece, incorrect preparation, or an RPM setting that's too high; in this case, correct the problem by planing, bandsawing, reduce the RPM, or scrap workpiece all together. Alternatively, worn spindle bearings or a worn belt could be the culprit; if so, replace the bearings or the belt. Loose motor mount bolts could also be a factor; tighten the bolts. Finally, ensure your lathe is on an even surface, or bolt it to a workbench or stand.
D
Douglas DorseyAug 6, 2025
What to do if my Steel City 60170 Lathe motor fails to develop full power?
- A
  Andrea WalkerAug 6, 2025
  If your Steel City Lathe's motor isn't developing full power, check for a few potential issues. An overloaded power line could be the cause; correct any overload conditions. Undersized wires in your supply system or an extension cord that's too long might also be responsible; increase the supply wire size. Low voltage could be a factor; request a voltage check from your power company. Additionally, a bad capacitor (Model 60170 only) or a defective motor could be the problem; replace the capacitor or the motor as needed.
L
lthomasAug 11, 2025
Why does my Steel City 60170 motor stall or not start?
- N
  Nicholas DavisAug 11, 2025
  If your Steel City Lathe motor or spindle stalls or won't start, several issues could be responsible. An excessive cut might be the cause; reduce the cut depth. Alternatively, the motor could be defective, the belt broken, or the spindle bearings worn; replace the motor, belt, or bearings as necessary. For Model 60170, a bad capacitor could be the issue; replace it. For Model 60100, bad brushes might be the problem; replace them.
C
clarkeseanAug 17, 2025
How to stop tools from grabbing or digging in on my Steel City 60170?
- B
  Bonnie ThomasAug 17, 2025
  If tools tend to grab or dig in when using your Steel City Lathe, consider these potential causes: dull tools, which require sharpening; a tool support set too low, which requires repositioning to the correct height; a tool support set too far from the workpiece, which needs to be moved closer; or using the improper tool for the operation, which means selecting the correct tool.
C
Christy PrattAug 25, 2025
What to do if the tailstock moves when applying pressure on my Steel City 60170?
- N
  Noah GonzalesAug 25, 2025
  If the tailstock on your Steel City Lathe moves when applying pressure, it could be due to a couple of reasons. The tailstock clamping device may not be adjusted properly; tighten the nut beneath the tailstock. Alternatively, the lathe bed and tailstock mating surfaces might be greasy or oily; remove and clean the surfaces with a cleaner degreaser.

Summary

Steel City Mini Lathe User Manual Overview

Warranty Details

Details the 2-year limited warranty for Steel City machinery, covering defects in workmanship and materials.

Product Specifications

Provides detailed specifications for the 60100 Mini Lathe (Variable Speed) and 60170 Mini Lathe (5-Speed).

Accessories and Attachments

Information on available accessories for Steel City products and where to find more details.

Definition of Lathe Terms

Defines key terms and parts of the lathe, such as Bed, Headstock, Tailstock, Banjo, and Tool Rest.

Feature Identification - Model 60100

Identifies and labels the main parts of the 60100 Mini Lathe with a diagram and list.

General Safety Guidelines

Outlines general safety precautions, hazard symbols, and essential safety rules for operating the machine.

Product-Specific Safety Measures

Covers specific safety measures related to electrical shock, proper clothing, and handling the machine safely.

Electrical Requirements and Grounding

Details electrical requirements, grounding instructions, and plug/receptacle information for safe operation.

Unpacking and Inventory Procedures

Instructions for checking shipping cartons, removing protective materials, and verifying all parts are present.

Assembly and Setup

Step-by-step guide for assembling the switch, headstock, and tailstock components of the mini lathe.

Lathe Adjustments and Calibration

Explains how to adjust the tool rest, banjo, and clamping pressure for optimal performance and safety.

Changing Spindle Speeds

Guide for changing spindle speeds on the 5-Speed Model 60170 and Variable Speed Model 60100.

Variable Speed Control Operation

Details operation of the speed control knob, ON/OFF switch, and thermal reset button for Model 60100.

Basic Lathe Operations

Provides guidance on performing a trial run, turning between centers, and faceplate turning techniques.

Maintenance and Care

Covers cleaning procedures, lubrication, and belt replacement for the mini lathe.

Troubleshooting Common Issues

Lists common problems, their likely causes, and suggested solutions for troubleshooting the mini lathe.

Parts List and Diagrams

A comprehensive list of parts for both the 5 Speed and Variable Speed models with corresponding key numbers.

Steel City 60170 Specifications

General

Brand	Steel City
Model	60170
Category	Lathe
Language	English
