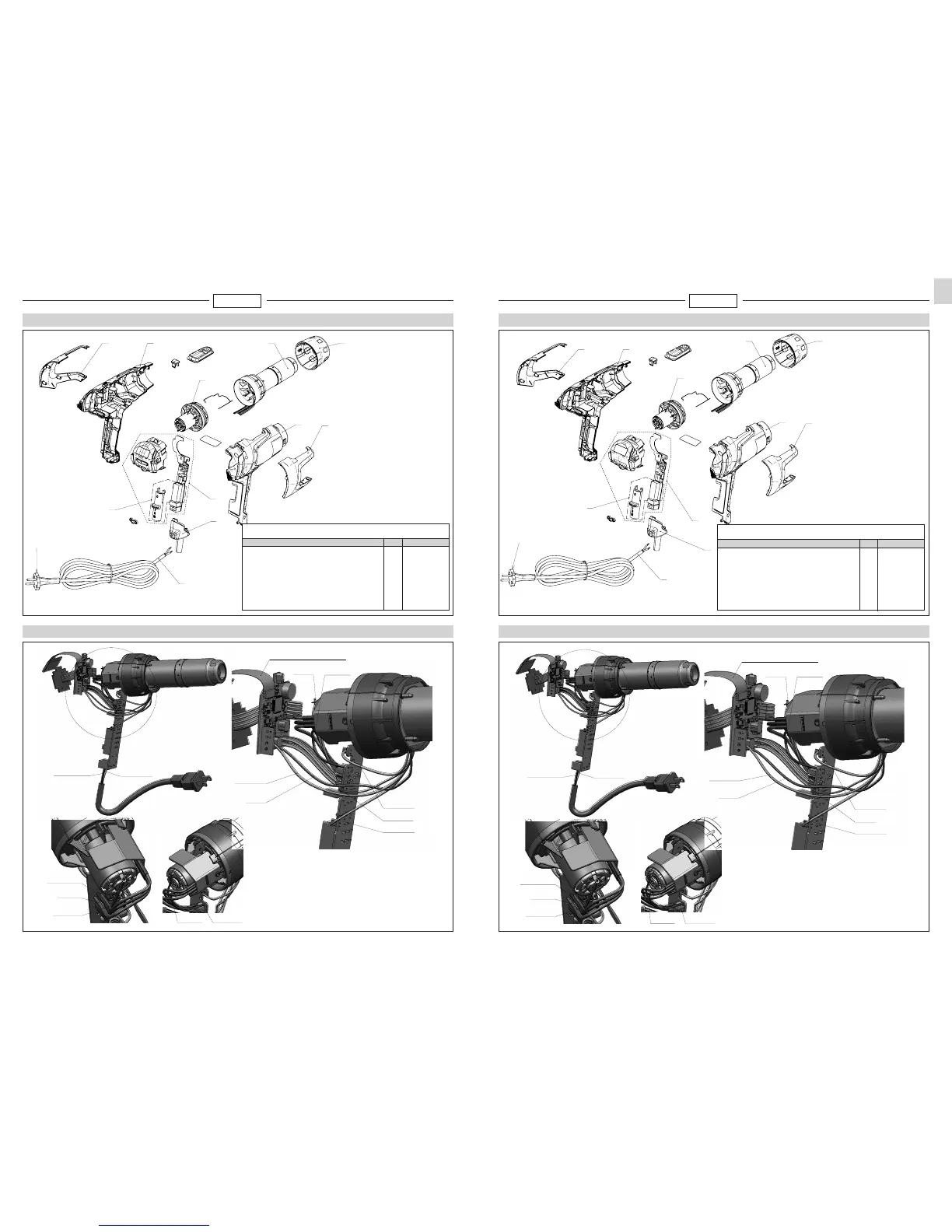

Spare Parts List HG 2320 E
Wiring Diagram HG 2320 E
Part No.
Pos.
110042251
110041666
110025024
110036962
110042252
110041667
110042069
1
2
3
4
5
6
7
HG 2320 E, Type 3515
Spare Part Housing Set HG 2320 E US
Spare Part Protection Tube HL 1820-2320 US
Spare Part Power Cord 2020-2320 US/TW
Spare Part Switch HL 1820-2320 US
Spare Part Electronic Unit HG 2320 E US
Spare Part Motor Unit HG 2320 US
Spare Part Heating Element 2020/2320 US
Shape depends on
regional version
4
2
6
5
1 1
1 1
7
1
3
Spare Parts List HL 2020 E
Wiring Diagram HL 2020 E
HL 2020 E, Type 3522
Spare Part Housing Set HL 2020 E US
Spare Part Protection Tube HL 1820-2320 US
Spare Part Power Cord HL 2020-2320 US
Spare Part Switch HL 1820-2320 US
Spare Part Electronic Unit HL 2020 E US
Spare Part Motor Unit HL 1820-2020 US
Spare Part Heating Element HL 2020/2320 US
6
27
1 1
1
1
1
4
3
5
Shape depends on
regional version
2:1
black
white
black
blue
brown
1:X
green
red
yellow
red
yellow
red blue
display cable A (2:1)
red blue
A
2:1
black
white
black
blue
brown
1:X
green
red
yellow
red
yellow
red blue
display cable A (2:1)
red blue
A
Part No.
Pos.
110042058
110041666
110025024
110036962
110042059
110041659
110042069
1
2
3
4
5
6
7
US
