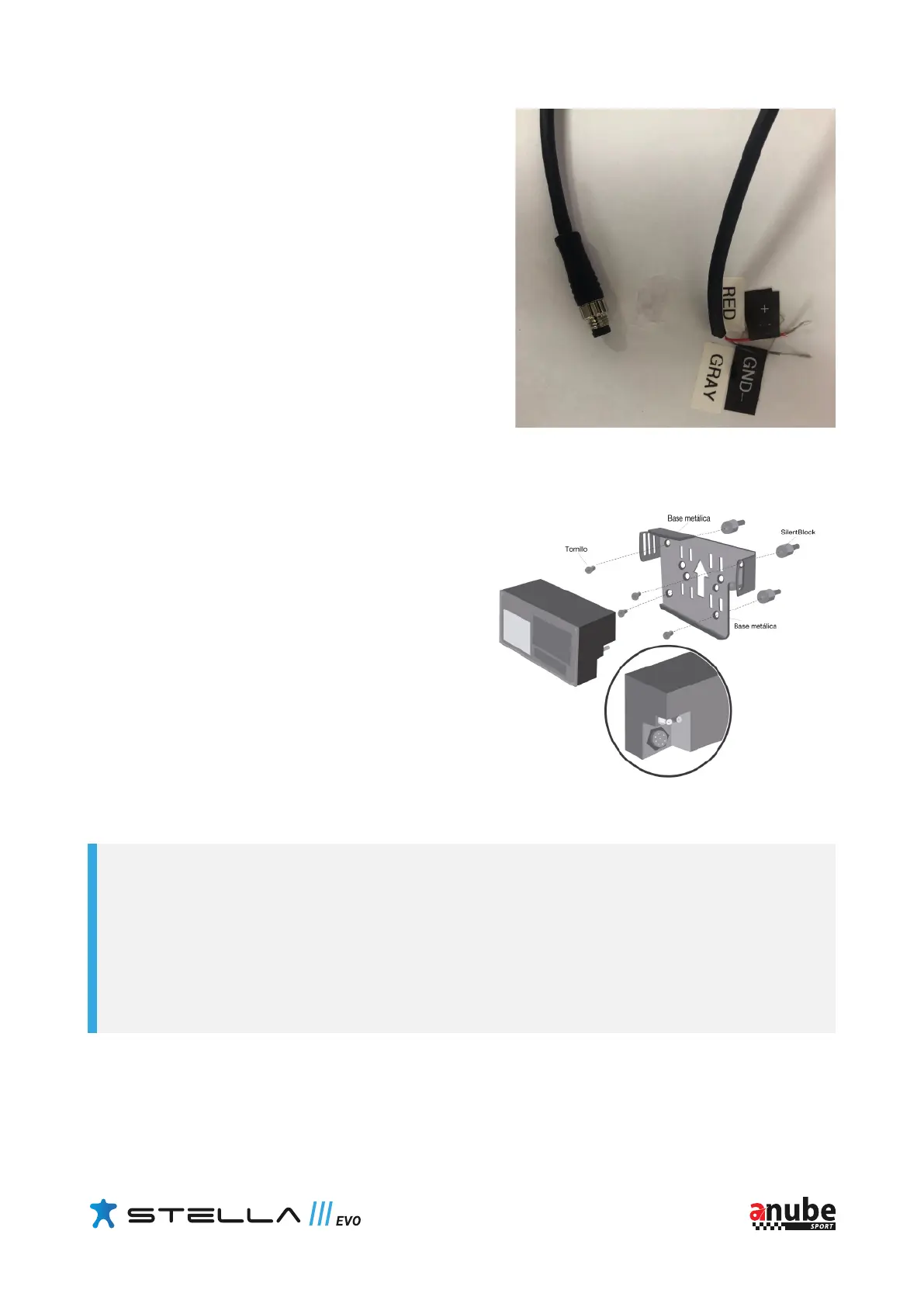

• Connect the red wire to the positive end of
the battery 12V(+), and the grey wire to the
negative end (GRD). The power cord must be
connected directly to the battery (without
interruptions and without contact in the
power supply).
• A 3A fuse (not included) should be connect-
ed to the red wire.
• Take the cord to the location in which the
STELLA III EVO is to be installed. All other
wires must be insulated, they cannot touch.
1. POWER CORD
Leave the cords (antenna and battery) in place with at least 10 cm to spare for easy
handling.
At least 5 cm of space behind the mount (bottom right corner) to allow space for power
cord/connections.
IMPORTANT
• Motorcycles and ATV: The mount can be
attached to the handle bar or to a metal
plaque close to the navigation system.
• Cars and UTV: The mount can be attached to
the panel, or to the roll cage bars. STELLA III
EVO buttons must be visible and accessible
to the participant (pilot/navigator) even
when they are sitting and with the seatbelts
buckled.
2. BASE/MOUNT
