TMAX™ Owner’s Manual

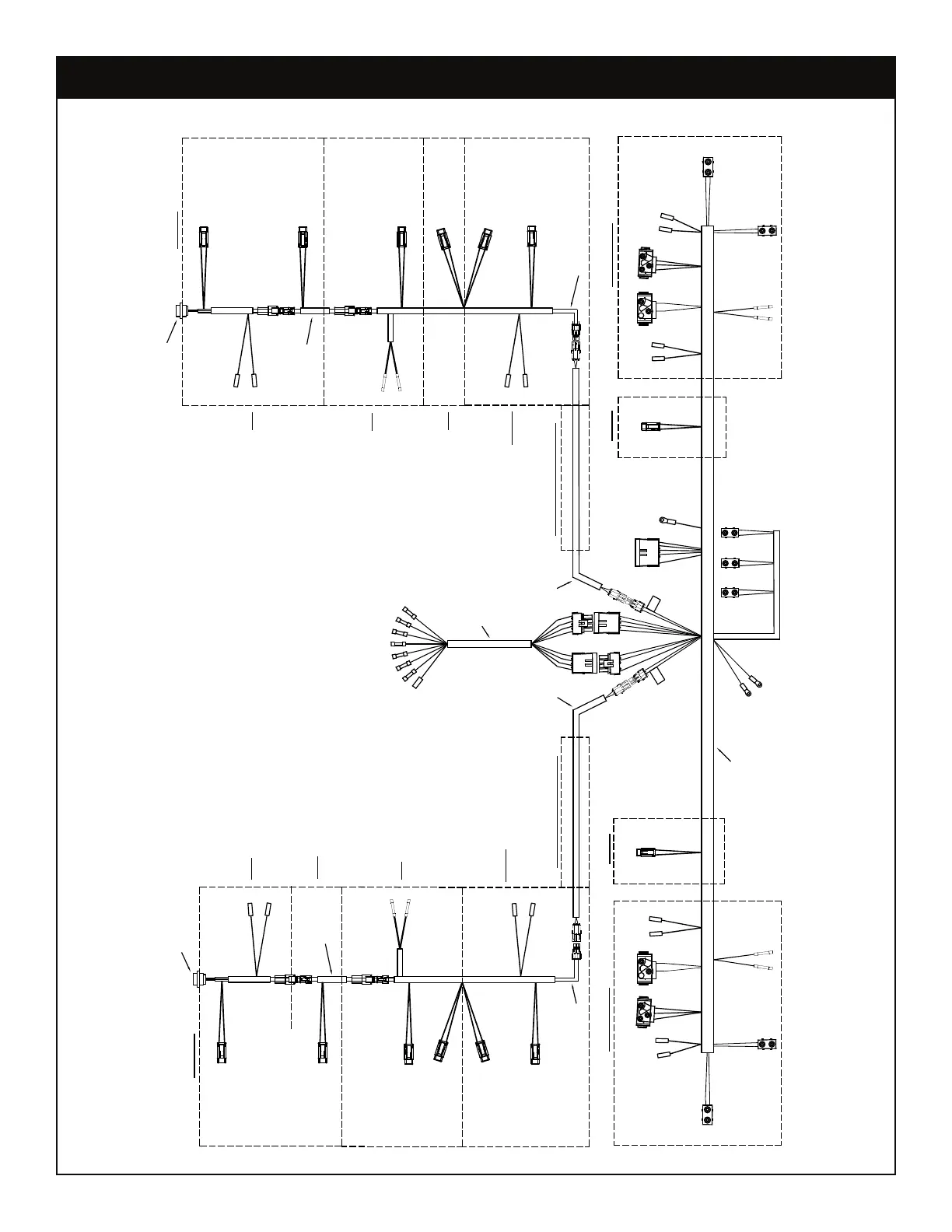

Light Kit Compt 13' & 14' TMAX - 75744
D
E
F
C
A
B
C
D
A
B
A
B
C
D
C
U
R
B
S
T
R
E
E
T
C
D
A
B
A
B
C
D
MARKER
LIGHTS
OPTIONAL
SURFACE MOUNT
BU ALARM
UNDER BODY
BU ALARM
OPTIONAL
FLOOD
REVERSE
STOP/
TURN/ TAIL
OPTIONAL
STROBE
GROUND
STUD
MARKER LIGHTS
IN BUMPER
MARKER
LIGHTS
OPTIONAL
STROBE
LICENSE PLATE
LIGHT
TO BODY
HARNESS
18" LIGHT STRIP
#74723
18" LIGHT STRIP
#74723
OPTIONAL
FLOOD LIGHT
CS HORIZ
36" LIGHT STRIP
#74724
36" LIGHT STRIP
#74724
36" LIGHT STRIP
#74724
36" LIGHT STRIP
#74724
OPTIONAL
COMPT LIGHT
(NOT USED)
36" LIGHT STRIP
#74724
18" LIGHT STRIP
#74723
18" LIGHT STRIP
#74723
OPTIONAL
FLOOD LIGHT
*BUTT CONNECT TO
CHASSIS FACTORY
TAIL LIGHT HARNESS
OPTIONAL
FLOOD LIGHT
OPTIONAL
FLOOD LIGHT
MARKER LIGHT ON
FRONT OF BODY
CABLE EXT
#75721
CABLE EXT
#75721
MARKER LIGHT ON
FRONT OF BODY
REAR HARNESS
MECH V2
#75538
TAIL LIGHT
HARNESS
#85371
OPTIONAL
FLOOD LIGHT
SIDE P
ACK HARNESS
#74722
SIDE PACK HARNESS
#74722
SS TAIL LIGHT BOX
CS TAIL LIGHT BOX
OPTIONAL
FLOOD LIGHT
OPTIONAL
COMPT LIGHT
(NOT USED)
SS REAR
CS REAR
HORIZONTAL STRUCTURAL TUBE
CS1V
CS2V
36" LIGHT STRIP
#74724
STOP/
TURN/ TAIL
REVERSE
OPTIONAL
FLOOD
SS HORIZ
SS1VR
SS1VF
HORIZONTAL STRUCTURAL TUBE
CURB SIDE
STREET SIDE
36" LIGHT STRIP
#74724
36" LIGHT STRIP
#74724
SIDE PACK EXT
HARNESS
#75722
SIDE PACK EXT
HARNESS
#75722
SS2V
CS3V
NOTE:
*USE HARNESS RETAINER KIT #94545 IN THE REAR COMPARTMENTS TO FASTEN THE
REAR HARNESS
*USE LOOM CLIPS #88453 TO FASTEN SIDEPACK HARNESSES.
*USE GROMMETS IN ALL LOCATIONS WHERE HARNESSES ENTER/ EXIT THE BODY.
*FLOOD LIGHT MAX AMPERAGE PER SIDE IS 10 AMPS
*NO MORE THAN 5 AMP LOAD TO BE CONNECTED TO ANY SINGLE FLOOD LIGHT WIRE
LOCATION
