Instruction Manual
for
AS380 Series Elevator Integrated Drive Controller
76
valid input)
9 Password login

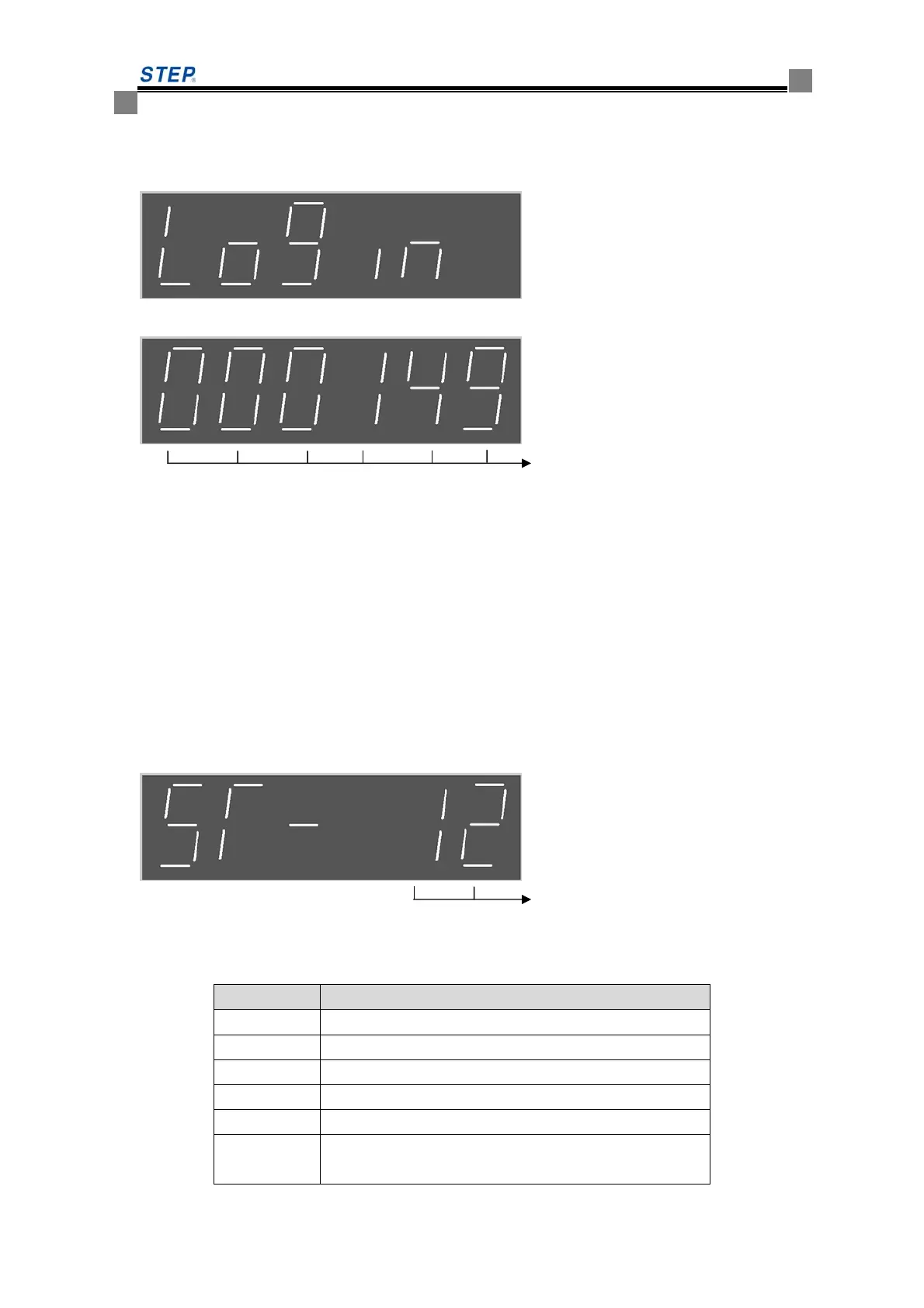

Press enter button to enter the menu as the below fig
Password input，the password show
in the figure is 149
In the login menu, you will see “login”, press the enter button, the figure in the lowest order of
LED display start to flash, use up or down button to select the needed figure. Use left or right to
select the needed figure. The selected figure start to flash, which mean it has entered into the
figure input stat. use up or down button again to select the figure needed to input. After finishing
the password input, press the enter button to finish the login. If the password inputted is correct,
the word “login” will display on the screen after pressing the enter button. If the password is
wrong, the password input stat will remain after pressing the enter button, use esc button to quit.
Please note, only elevator condition and parameter can be browsed if not login. Only in login stat
can be authorized to modify the parameter.
10 process diagnosis
Stat code
This menu shows the current status of elevator. Use one two digit status code to show, the
definition of status code is as follow:
Table 5.4 status coder definition
Serial no description
0 Safety circuit disconnect
1 Elevator fault
2 Motor overheat
3 Elevator overload
4 Safety edge
5 Door open button action(door open button or
same-direction hall call button action)
