Instruction Manual
for
AS380 Series Elevator Integrated Drive Controller
138

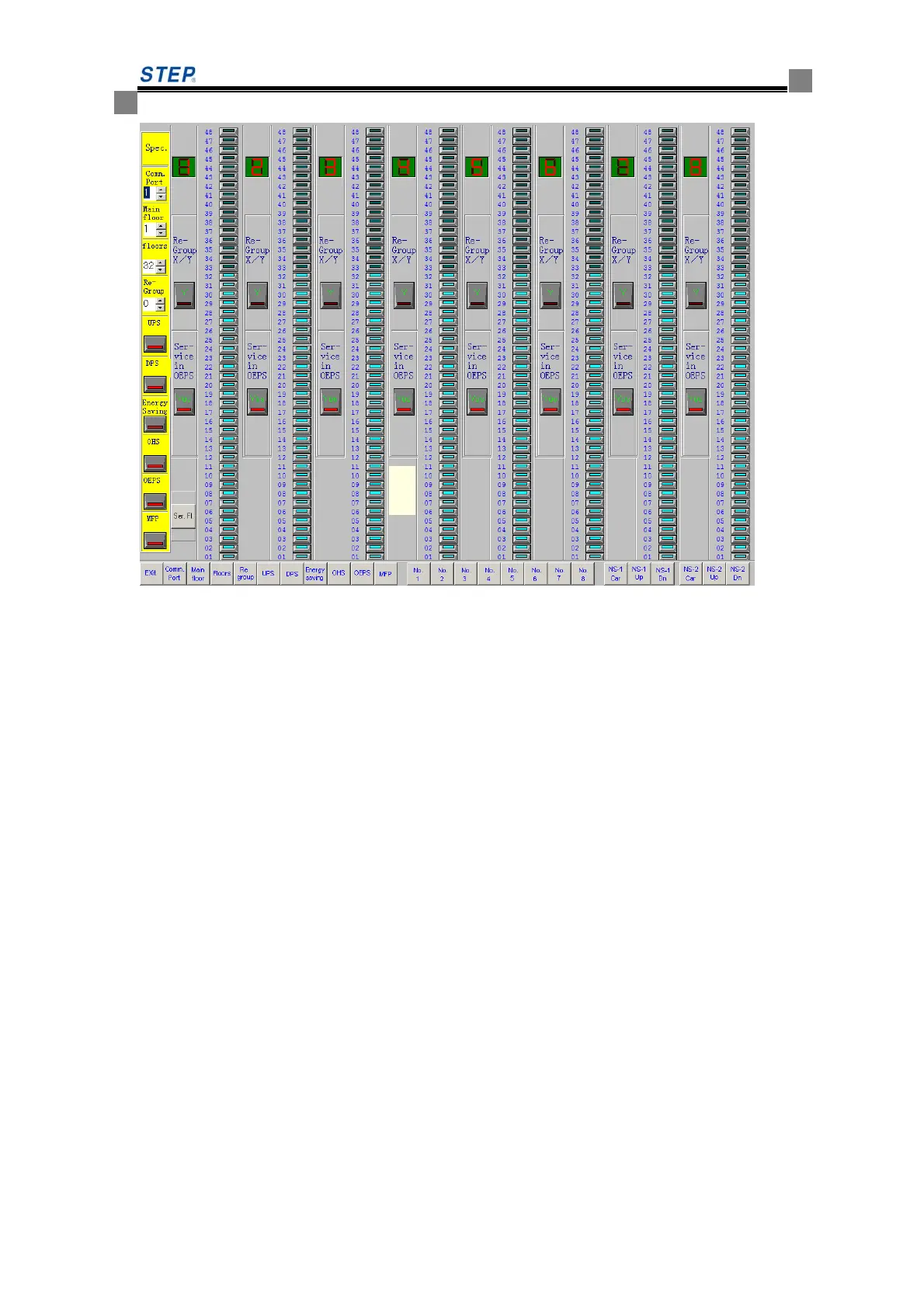

Fig 6.31 the group parameter setting interface
4. Group control parameter and setting method.
(1) Comm. port: This is the parameter that establishes the RS232 ports of PC machine. The
data(such as'1'or'2') in the communication port frame of the upper left side of the interface means
that designated serial port is the COM1 or COM2. If there is necessary to change setting, click'ᇞ
'or'▽ ' to change the data into the desired value, then click [Comm. port] button underneath of
interface to set the data.
(2) Location of main floor of group control: The group-controlled main floor position means the
position of the elevator main floor in the floor sequence of all group-controlled elevators from the
lowest floor heading upward. For example: There is an elevator in the group has the two floors
underground, but the whole home floor position of group is the 1st floor. Then from underground
2 floors heading upward, the 1st floor is the 3rd floor. So, the home floor position data of the
group is 3. While setting, click'ᇞ 'or'▽ 'to adjust the data in the [Main floor] frame on the upper
left side of the interface to the desired group home floor position data, click [Main floor] button
underneath of interface , then data setting complete.
(3) The group floor number: The group floor number is all service floors of elevators in the
group. The data count from the lowest floor to the highest floor. Usually this data should be set for
each project. While setting, first click'ᇞ 'or'▽ ' to adjust the data in the [Floors] frame to right
value of the left side of the interface, then click [Floors] button underneath of interface to
complete the data setting .
(4) The group service floor specification setting: If all service floors of elevators in the group are
consistent, this specification doesn't need to set specially, it adopt a default value, each floors of
each elevators is service floors. If the service floor of each elevator is deferent, it needs to set this
data. For example: Four elevators groups, 1# elevator's and 2# elevator's service floors is -2,-1
and 1-10, but 3# elevator's and 4# elevator's service floors is 1-10, then #3 elevator's and 4#
elevator's -2,-1 floor should be set to non- service floor(corresponding the floor is 1 and 2 in the
setting interface). Setting method as follows: First click the [ser. floor] button in the left bottom of
the interface (not in the edge) , the system enters the service floor specification setting status. Then,
