MOUNTING THE EHU TO THE BOOM
FIGURE 31
FIGURE 32

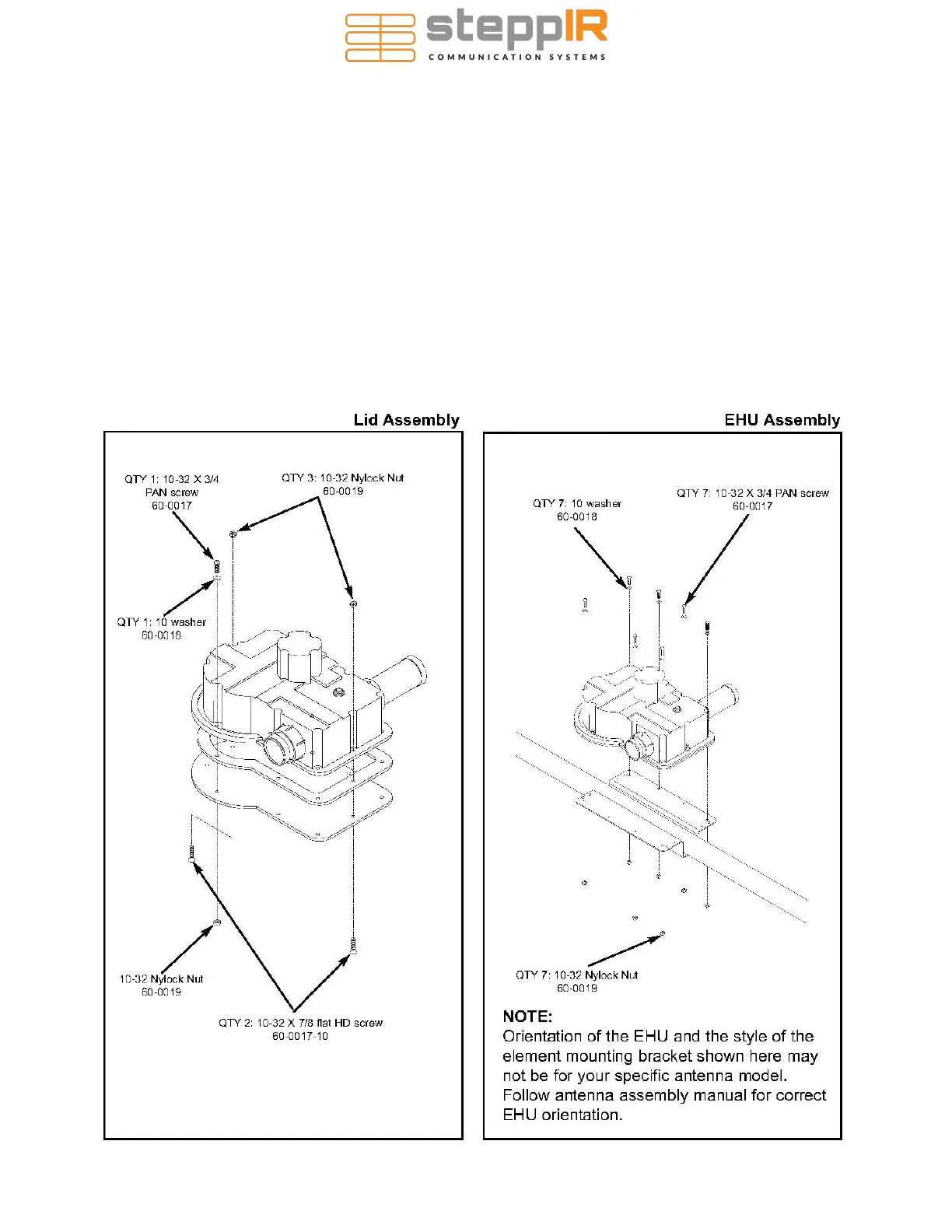

Attaching the EHU to the boom is a two step procedure. The first step involves attaching the lid and gas-
ket with the three screws shown in figure 31. The second step is to attach the EHU to the element mount-
ing plate on the boom with the remaining seven screws as shown in figure 32.
WARNING: When assembling the lid to the housing and the housing to the boom, make sure that the
control cable is not being pinched or damaged in any way. This can cause a short and will drastically ef-
fect the performance of the antenna.
