Fig.4.7
Fig.4.6
Fig.4.10

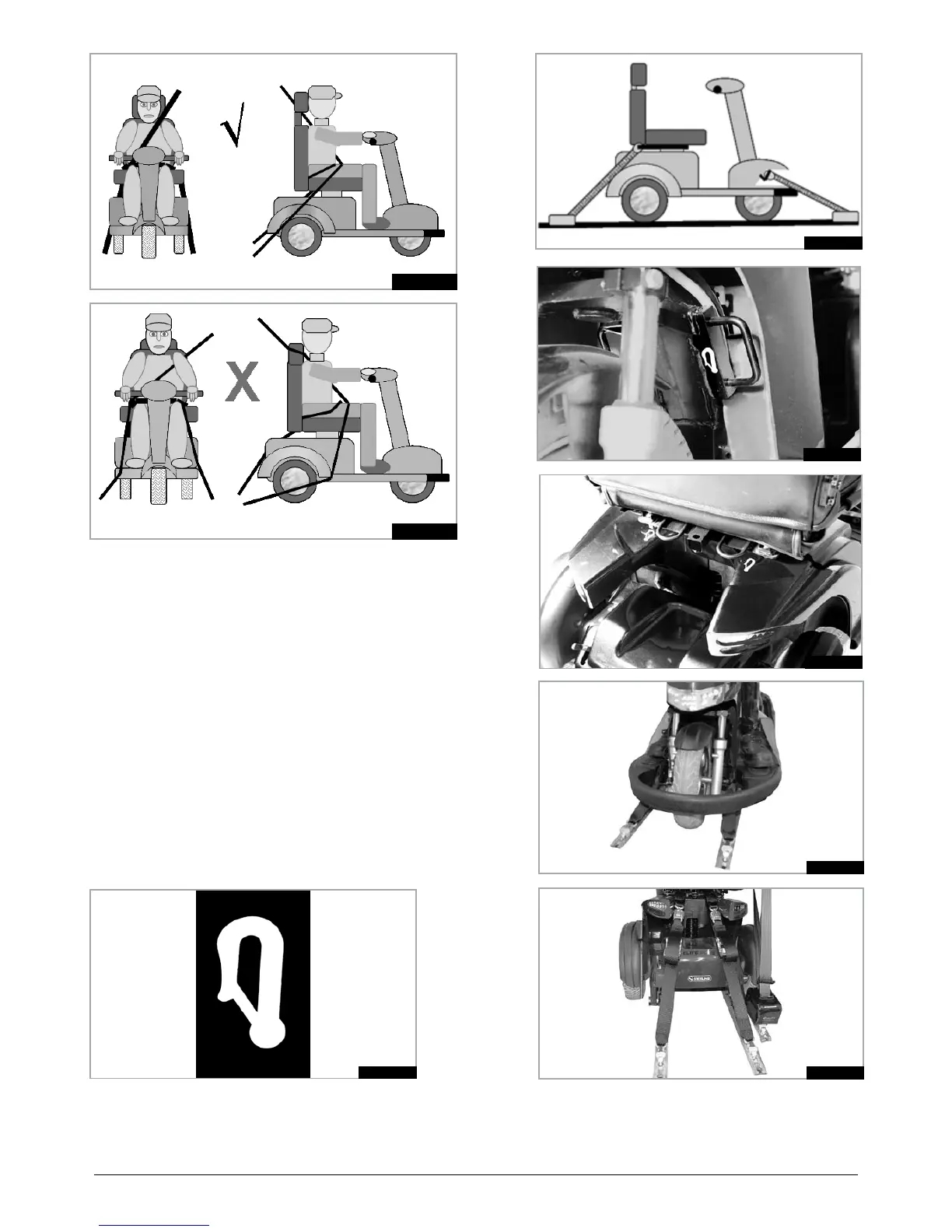

4.10 TRANSPORTABILITY - POSITIONING OF TIE
DOWN RESTRAINTS ON THE SCOOTER:
The tie down symbol (Fig.4.8) on the scooter frame
indicates the position of the scooter restraint straps.
The front straps are fitted first to anchor the scooter, then
the rear straps are fitted and tensioned to secure the
scooter, (Fig.4.9).
The attachment points to the scooter are the brackets on
the front of the main frame under the front wheel arch,
(Fig.4.10) and the brackets on the rear of the frame under
the seat, (Fig.4.11).
The straps are attached to the brackets as shown in
Fig.4.12 for front and Fig.4.13 for rear.
Fig.4.9
Fig.4.11
Fig.4.12
Fig.4.13
Fig.4.8
