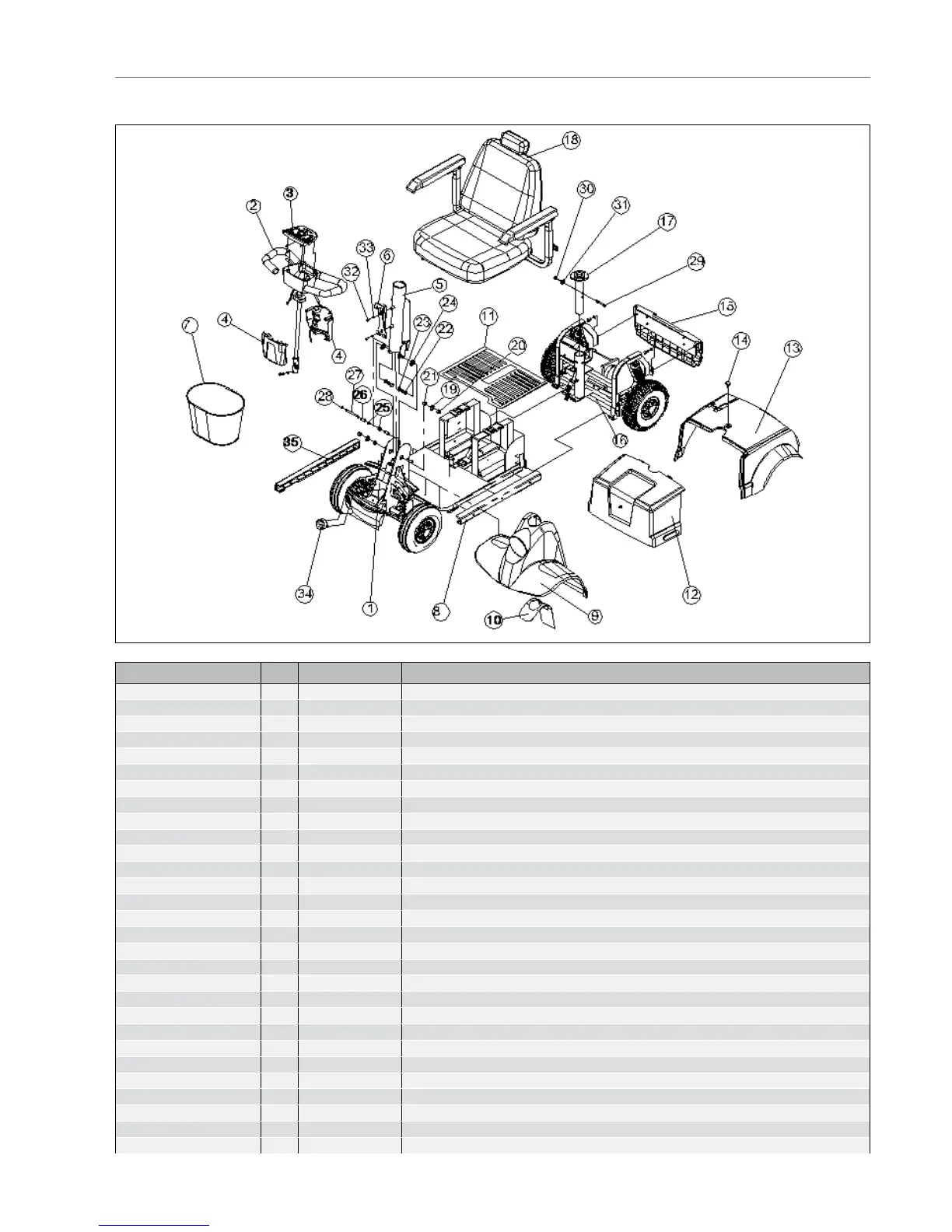

B Overview 4W
Pos Qty Article number Description
1 1 See list 013 Frame front assy 4W
2 1 See list 006 Tiller assy
3 1 See list 004 Top console assy
4 1 See list 005 Bottom console assy
5 1 See list 007 Tiller strut assy
6 1 1009235 Bracket basket support
7 1 C91001 Basket front
8 1 1009237 Side board plastic left
9 1 See list 016 Cover front 4W assy
10 1 1009239 Tiller protect plastic
11 1 1009241 Mat oor 4W
12 1 See list 008 Cover battery assy
13 1 See list 009 Cover motor assy
14 1 1009242 Knop M5
15 1 See list 003 Bumper rear assy
16 1 See list 018 Rear frame assy
17a 1 1009243 Seat post Captain Seat
17b 1 9001495 Seat post Master Seat
18a 1 1009244 Captain Seat
18b 1 1002241 Master Seat
19 2 No spare part Flat washer
20 2 No spare part Lock nut M10xP1,25
21 2 No spare part Bushing 9,2mm
22 2 No spare part Flat washer
23 2 No spare part Hex bolt M10x25mm
24 2 1009245 Bushing shoulder 4,7mm
25 2 1009246 Bushing shoulder 11mm
26 2 1009247 Bushing 20,5mm
27 1 1009248 Shaft 85mm
