ATENÇÃO!
Deixe LIVRE as entradas
(COLLER) e saídas de ar.
CD/MP3-player
OUTPUT RCA
REAR (L / R)
OUTPUT RCA
OUTPUT RCA
FRONT (L / R)
FRONT (L / R)
OUTPUT RCA
FRONT (L / R)
2
5

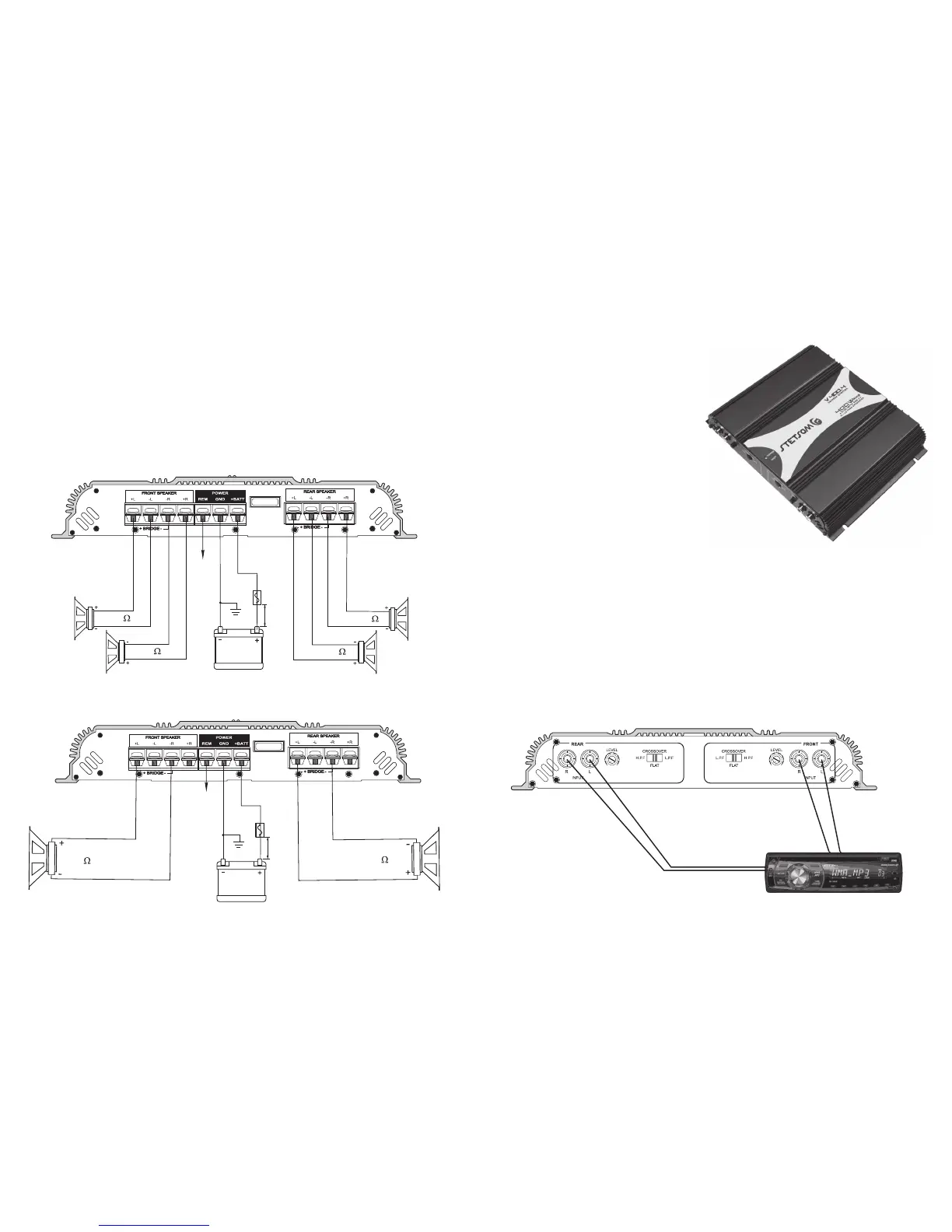

4 CHANNELS MODE
The minimum required speakers impedance is 2 Ohms for each channel; a 4 Ohms one is
acceptable though. The connections in 4 channels mode are::
2 CHANNELS MODE (BRIDGE)
The amplifier can work in the bridge mode getting the power of 2 channels together in a single
speaker. The minimum speaker impedance must be 4 Ohms.
The amplifier can work with 2, 3 or 4 independent channels the speaker impedance varies
from 2 to 4 ohms according to the chosen mode. Be aware of the correct polarity when installing
the speakers.
The speaker power must be at least the same as the power delivered by amplifier channel.
Notice that the power output is stronger in 2 Ohms speakers and weaker in 4 Ohms speakers.
When using the BRIDGE connection, the power will also be stronger than in stereo mode. Use 4
mm² gauge cables with up to 3m length.
REMOTE
(CD-PLAYER/MP3-PLAYER)
30 cm
BATTERY
12 V
CHASSIS
1 Fuse 50A
40
40A
4
2 ou 4
2 ou 4
2 ou 4
2 ou 4
40
40A
REMOTE
(CD-PLAYER/MP3-PLAYER)
30 cm
BATTERY
12 V
CHASSIS
1 Fuse 50A
4
4
INSTALLATION OUTPUT OF SPEAKERS
Use shielded cables with RCA connectors in the ends for the input connection.
Using good quality and appropriate audio cables will avoid unwelcomed noise.
Choose a well vented place to
assure the amplifier refrigeration.
Places like the trunk or the under seat
position can be used for fastening the
equipment.
The installation must always be
carefully and accurately done so the
best equipment performance will be
assured.
Before installing the equipment
arrange a flat surface to place it. Put it
in the selected place, check and drill,
and finally tighten the screws firmly.
FASTENING:
CD/MP3-PLAYERS (4 Channels)
INSTALLING THE INPUT CABLES:
