5
We know you are excited to get started building.
That said, one of the keys to a successful build, is
taking the time to get to know all of your parts. Sort all of your pedal’s
parts and check o according to the parts lists that follow. If you are not
familiar with what they do, the next section will give you a little primer.

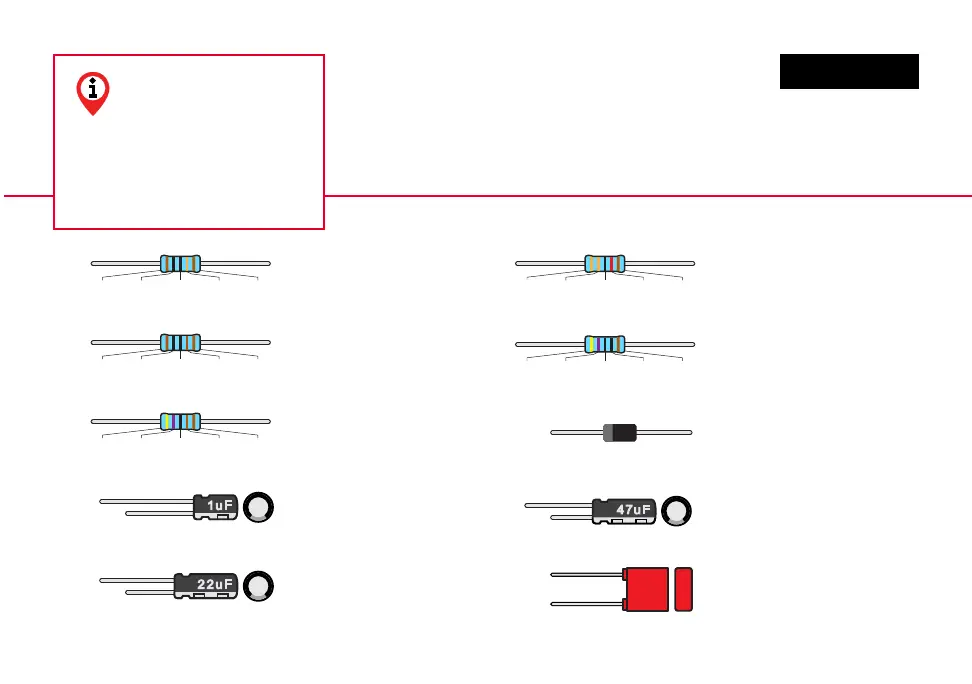

1K resistor (1) #7357
Brown Black Black Brown Brown
Brown Black Black Orange Brown
100K resistor (1) #7365
Orange Orange Black Red Brown
33K resistor (1) #7409
Yellow Violet Black Brown Brown
4.7K resistor (1) #7359
Yellow Violet Black Black Brown
470Ω resistor (1) #7355
1N5817 rectifier diode (1)
#7522
22µF capacitor (1)
#7311
22uF
1µF capacitor (1)
#7337
1uF
47µF capacitor (1)
#7478
47uF
10nF capacitor (8)
#7331
WIMA
0,01
100-
PARTS LIST
Note: While electrical
properties remain the same,
the appearance of parts may vary
based on availability. If you are ever
unsure, please contact us via the
information on the back of this manual.
