you’re having trouble reading the color bands, there are
apps that make easy working of identifying them. Or, try
using a multimeter to read a resistor’s value. Just set your
multimeter to ohms and connect the test leads on each
side of the resistor.
A number of dierent components are used to make an
eects pedal. Here’s an overview of what they do..
RESISTORS
A resistor is used in an electrical circuit to present an
opposition to current ow. It resists the amount of
current that can pass through it.
A resistor’s value—the amount of resistance it creates—
is rated in ohms (). The higher the ohmic value, the
greater the resistance to this ow of current. For
example, a 100 resistor creates ten times as much
resistance as a 10 resistor.

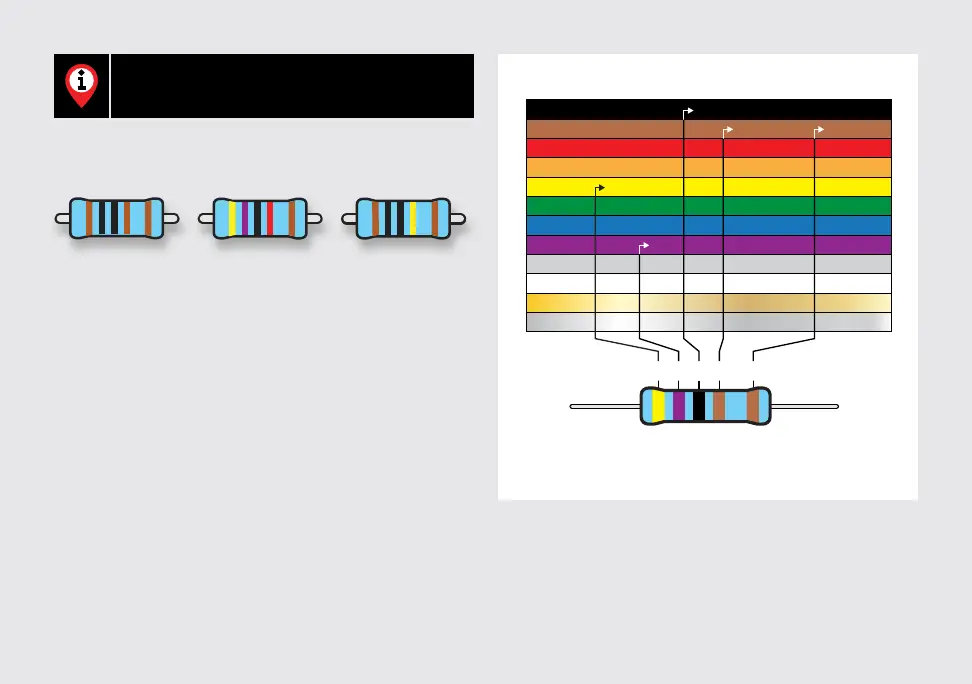

Resistor values are indicated by colored bands, read from
left to right. The rst color in the code is usually the one
painted closest to a lead. When a gold or silver band is
present, it’s always one of the last colors in the code. If
UNDERSTANDING ELECTRONIC
COMPONENTS
4.7KΩ ±1%
K = 1,000
Band 1 Band 2 Band 3 Multiplier Tolerance
4 7 0 x10 ± 1% =5-band code:
4-band code: read Bands 1 and 2 same as above, then
Band 3 is the Multiplier and Band 4 is the Tolerance.
BLACK 0 0 0 1
BROWN 1 1 1 10 +/- 1%
RED 2 2 2 100 +/- 2%
ORANGE 3 3 3 1,000
YELLOW 4 4 4 10,000
GREEN 5 5 5 100,000 +/- 0.5%
BLUE 6 6 6 1,000,000 +/- 0.25%
VIOLET 7 7 7 10,000,000 +/- 0.10%
GRAY 8 8 8 100,000,000 +/- 0.05%
WHITE 9 9 9
1,000,000,000
GOLD 0.1 +/- 5%
SILVER 0.01 +/- 10%
