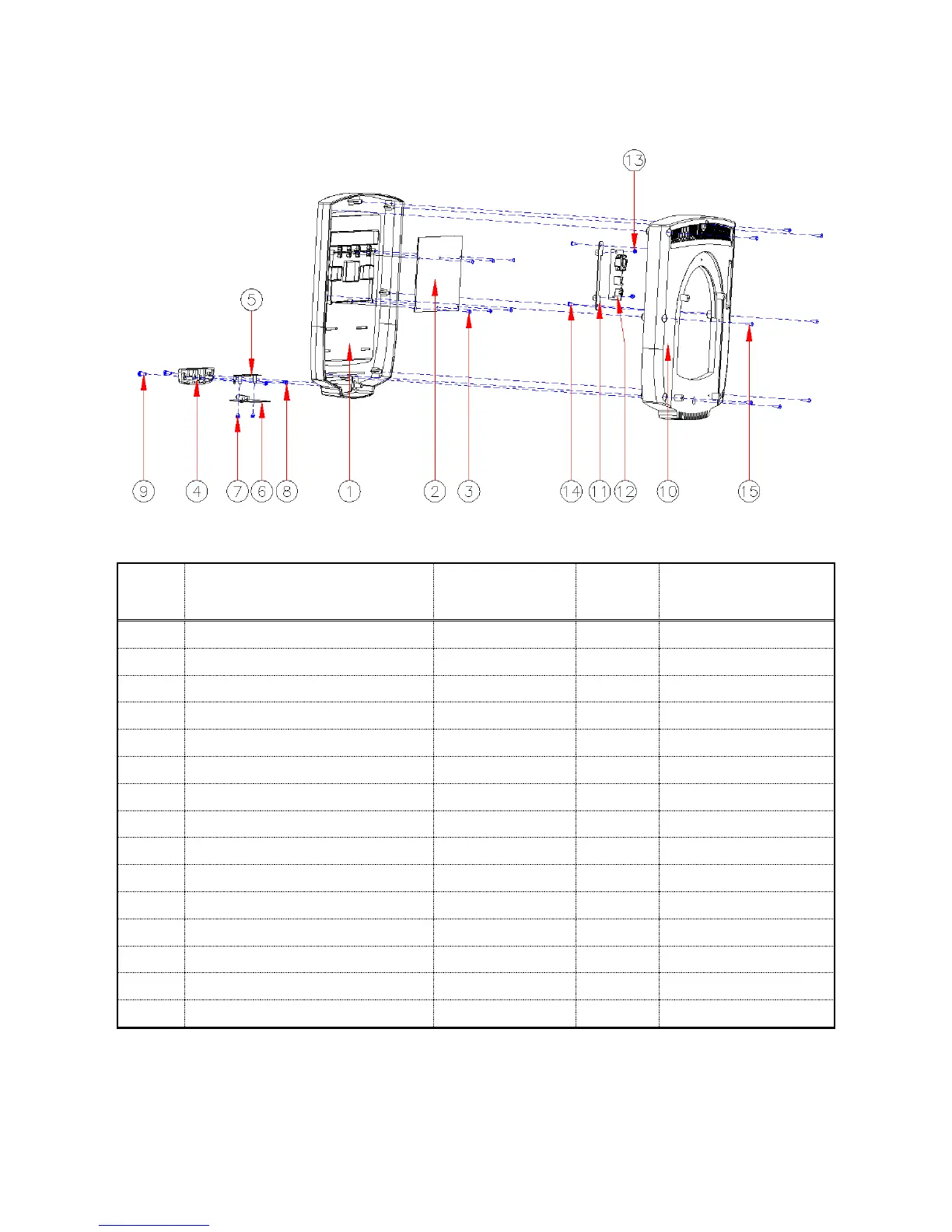

3-16 Display console assembly (#16-1) – S25E
3-16 Description
No
Parts
Parts No.
Q’TY
Remark
1
Mold_ Console front cover 01
301084
1 ea
2
Display board
201039
1 ea
3
Tapping pan head
300051
6 ea
M4 x 8L
4
Mold_ Front board cover 0002
201066
1 ea
5
BRK Front board
301103
1 ea
6
Front board
201044
1 ea
7
Machine pan head
300057
2 ea
M4 x8L (SEMS)
8
Machine pan head
300040
2 ea
M5 x 12L (SEMS)
9
Tapping pan head
300071
2 ea
M5 x 10L
10
Mold_ Console middle cover
301104
1 ea
11
BRK Comm board
301105
1 ea
12
Communication board
201047
1 ea
13
Machine pan head
300051
2 ea
M4 x 8L (SEMS)
14
Tapping truss head
300080
2 ea
M4 x 8L
15
Machine pan head
300040
8 ea
M5 x 12L (SEMS)
