Assembly procedures
 S25E
1. Check the contents//Accompanying parts, required tools, & others…

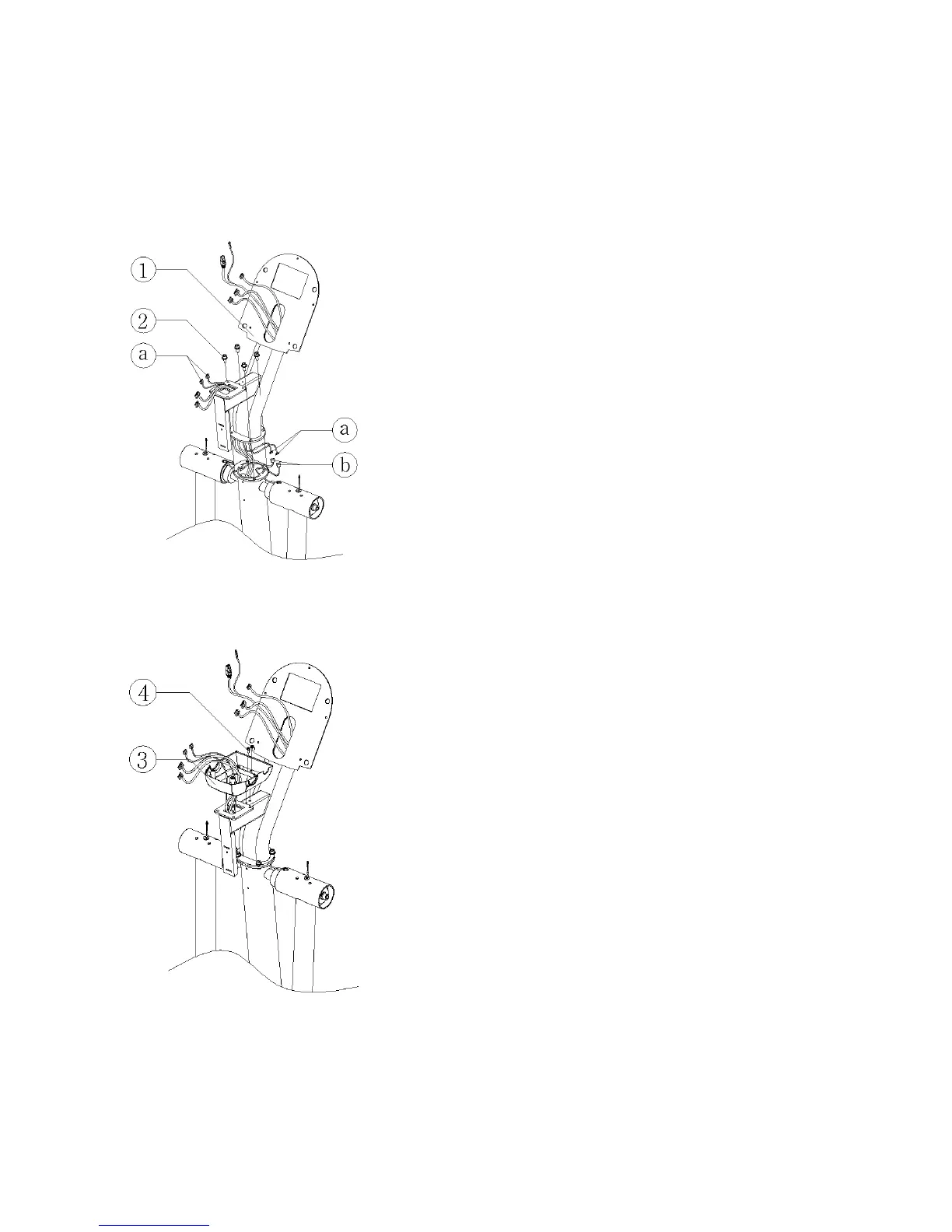

2. Secure the DISPLAY CONSOLE SUPPORT COLUMN(1).
1) Position the DISPLAY CONSOLE SUPPORT COLUMN(1) as
shown.
2) Feed the wires through the DISPLAY CONSOLE SUPPORT
COLUMN.
3) Connect the HEART RATE CABLES(a) leading from the DISPLAY
CONSOLE SUPPORT COLUMN to the WIRES(b) leading from the
base frame.
4) Secure the DISPLAY CONSOLE SUPPORT COLUMN using four
M820mm SCREWS(2).
Note: Be careful not to pinch wires.
3. Secure the FAST TRACK_BOTTOM COVER(3).
1) Position the FAST TRACK_BOTTOM COVER(3) as shown.
2) Secure the FAST TRACK_BOTTOM COVER using two M512mm
SCREWS(4).
Note: Be careful not to pinch wires.
