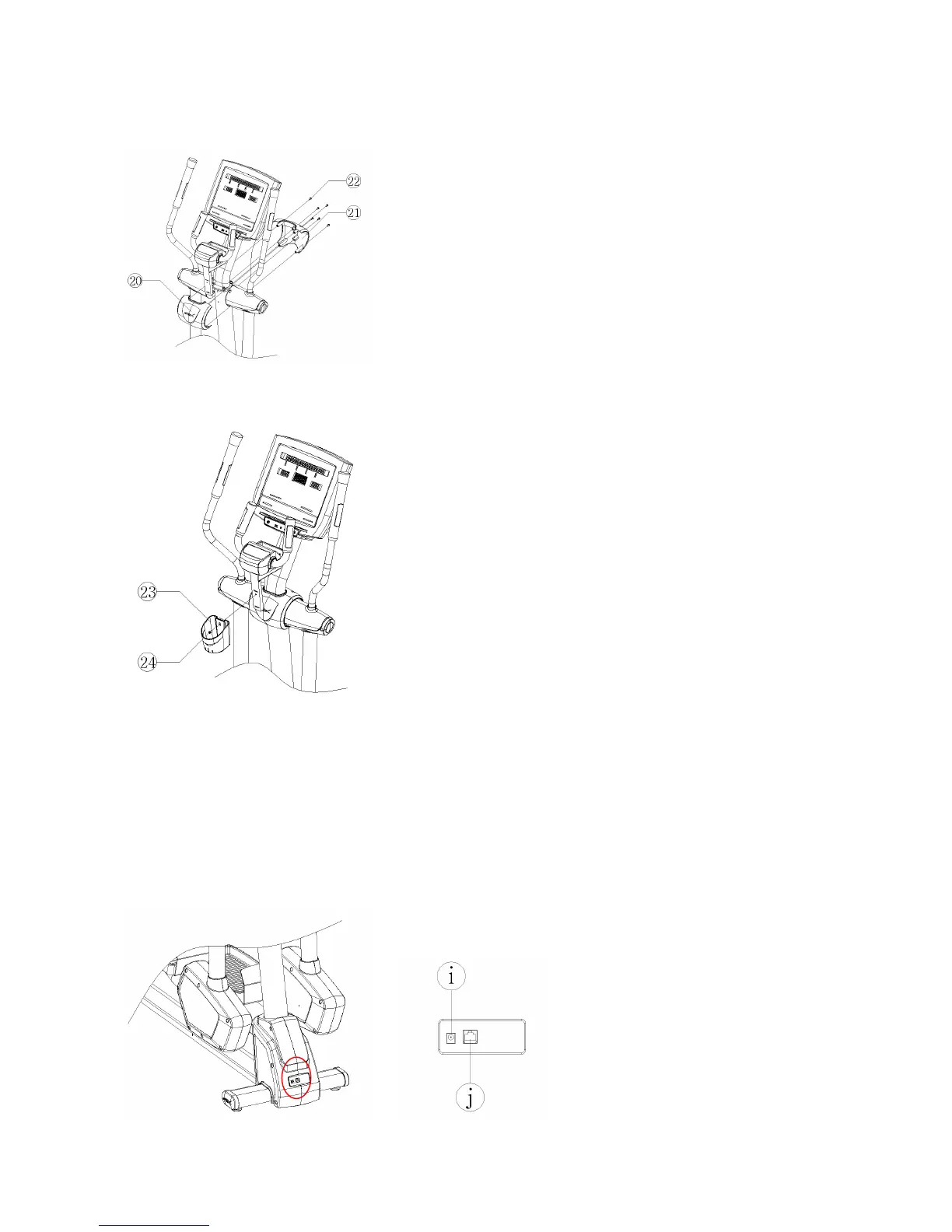

10. Secure the NECK COVERS.
1) Position the NECK COVER_BACK(21) as shown and secure it
using two M512mm SCREWS(21) on the base frame.
2) Align holes of the NECK COVER_FRONT(20) with those in the
NECK COVER_BACK. Secure them together using four M512mm
SCREWS(21).
Note : → Do not over-tighten the screws.
11. Attach the CUP HOLDER(23).
1) Position the CUP HOLDER(23) as shown.
2) Secure the CUP HOLDER using one M512mm SCREW(24).
Note: Do not overtighten the SCREW.
12. Turn a leveler.
1) Place the elliptical trainer in its intended location for use.
2) Check the stability of the trainer. If the elliptical trainer is not level, turn a leveler in the front & rear foot-pipe in either
direction until the rocking motion is eliminated. Tighten the nut when the elliptical trainer is level.
13. Connect external wires.
