Z001019/0_6_July 2008 Page ELECTRICAL SYSTEM - 83
ELECTRICAL SYSTEM
SERVICE MANUAL MARINE ENGINES

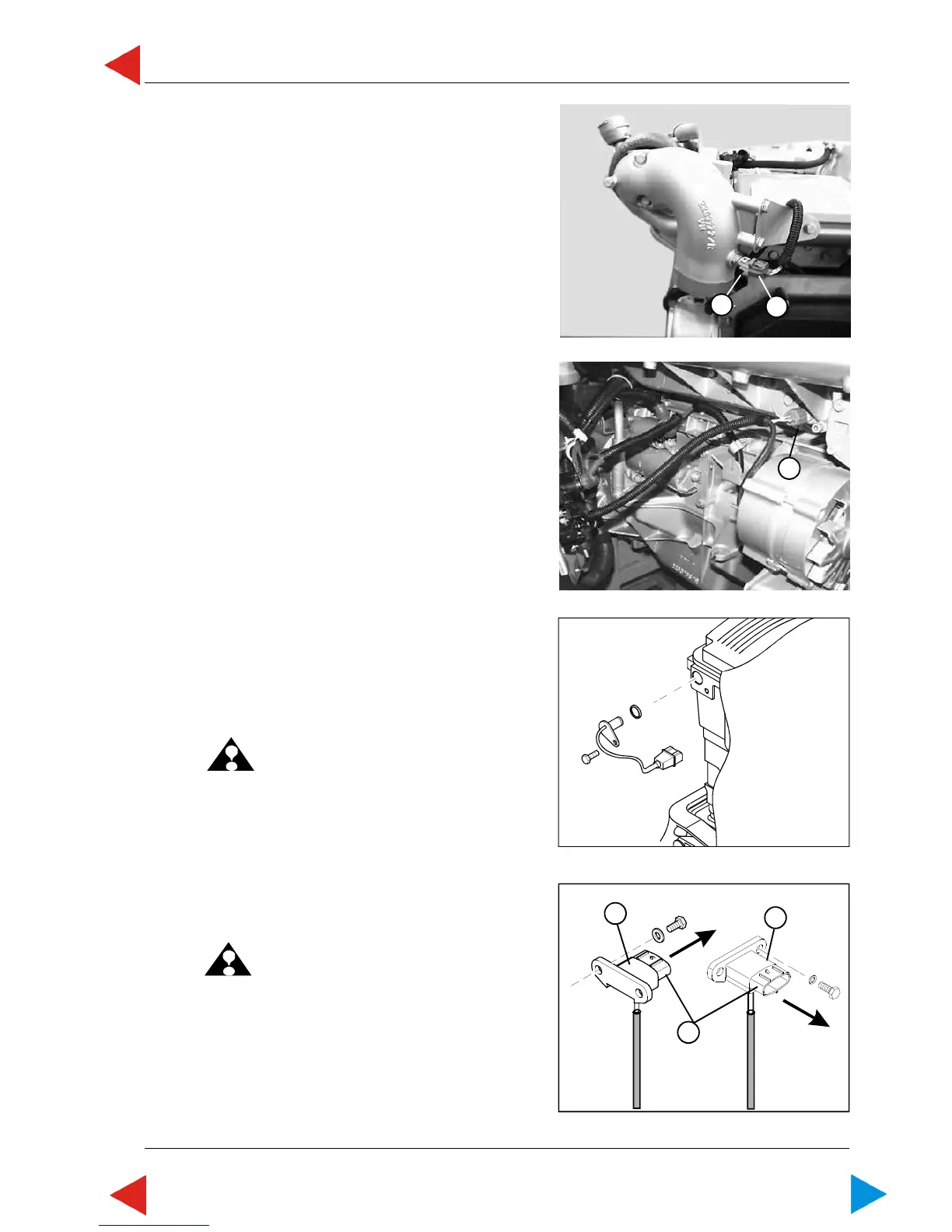

06.10.04 Replace Senders, Sensors
06.10.04.01 Exhaust gas temperature sensor, B17
1 Unlock plug (ill.1/pos.1) and remove.
2 Unscrew temperature sensor (ill.1/pos.2) (SW19)
06.10.04.02 Engine temperature sensor, B16
1 Remove plug housing (ill.2/pos.1).
2 Unscrew engine temperature sensor.
06.10.04.03 Speed sensor, B15
1 Press catch spring and remove plug.
2 Loosen hexagon screw (SW10), pull out sensor.
ATTENTION: For assembly, use new 0-ring.
Grease O-ring and put it on.
10.04 ill.2
10.04 ill.4
10.04 ill.1
1
2
1
1
2
2
10.04 ill.3
06.10.04.04 Boost pressure sensor, B12
for engines 94 / 114 / 144 / 126 / 166 / 236 only
1 Remove hose from exhaust manifold.
ATTENTION: Do not remove hose from boost
pressure sensor.
2 Press retaining clip against plug housing (ill.4/pos.1),
remove plug.
3 Loosen two hexagon screws (SW10), remove boost
pressure sensor (ill.4/pos.2).
NOTE: For assembly, take care of the 2
sealing cushions of plug housing.
