Edition Manual Chapter Page
2014-09-20 Workshop Manual, GGP Park 4 Hydraulic system 25

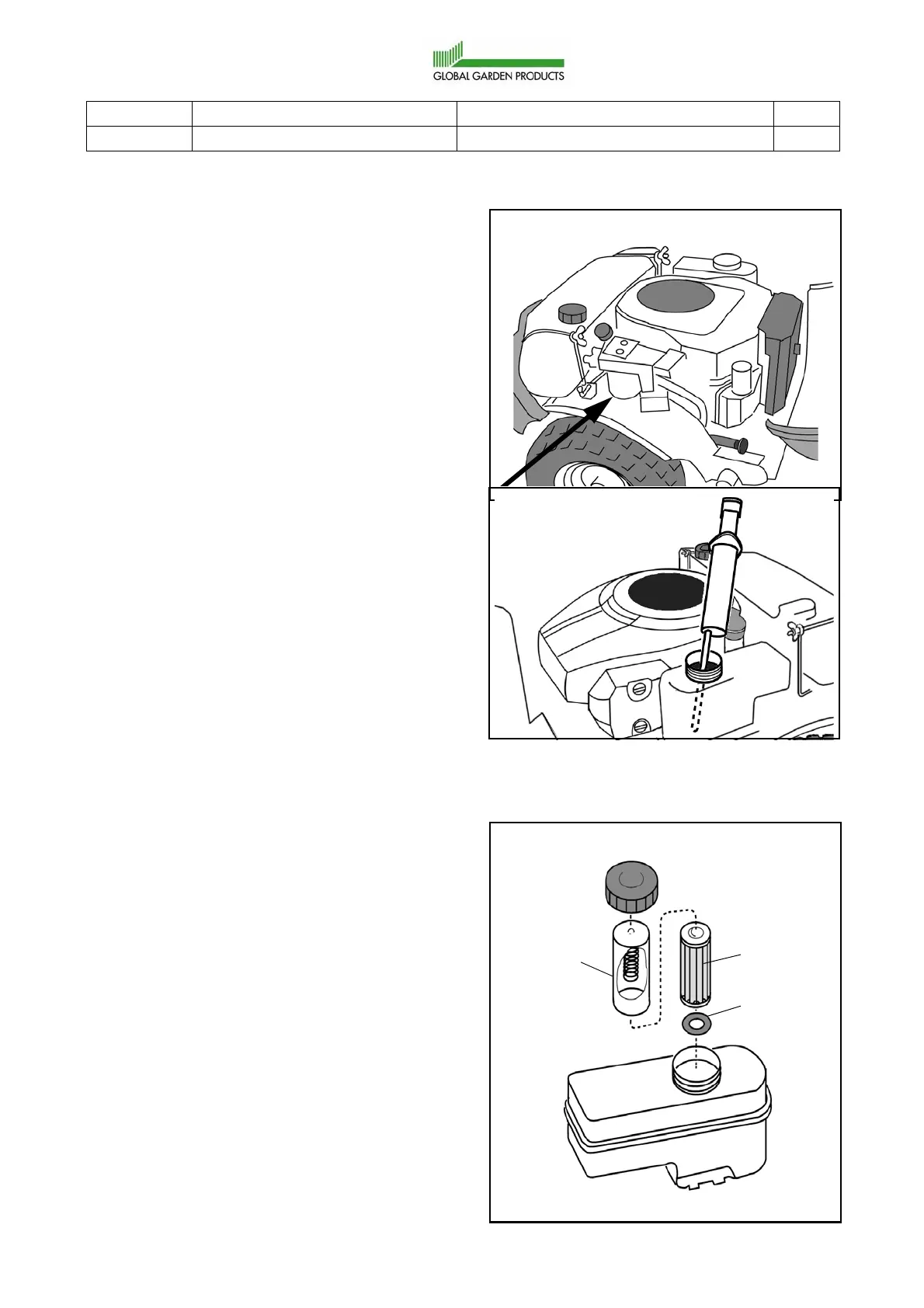

6. Machines with externa hydraulic: Clean the
area around the hydraulic circuit’s filter and
dismantle the filter. See the figure.
7. Allow all the oil to run out into the collection
trough.
8. Draw out the oil from the deeper section of
the reservoir using an oil extractor. See the
figure.
9. Hand in the oil for disposal in accordance
with local provisions.
Cleaning/replacing the tank filter
Measures:
Metal filters shall be cleaned.
Paper filter shall be replaced.
1. Press the filter casing (F) down into the
upper section of the tank and move the cas-
ing forwards to the hole.
2. Pull up the filter casing together with filter
and spring.
3. Pull the filter (G) out of the casing.
4. Check that the rubber gasket (H) in the bot-
tom of the filter is intact.
5. Fit the new filter and spring in the casing.
Insert the filter until it snaps into position in
the casing.
6. Reinstall the unit in the tank. The upper part
of the filter casing must snap into position in
the slot in the upper section of the tank.
F
G
H
