2L-7115-00Copyright © 2007 ESCALADE SPORTS

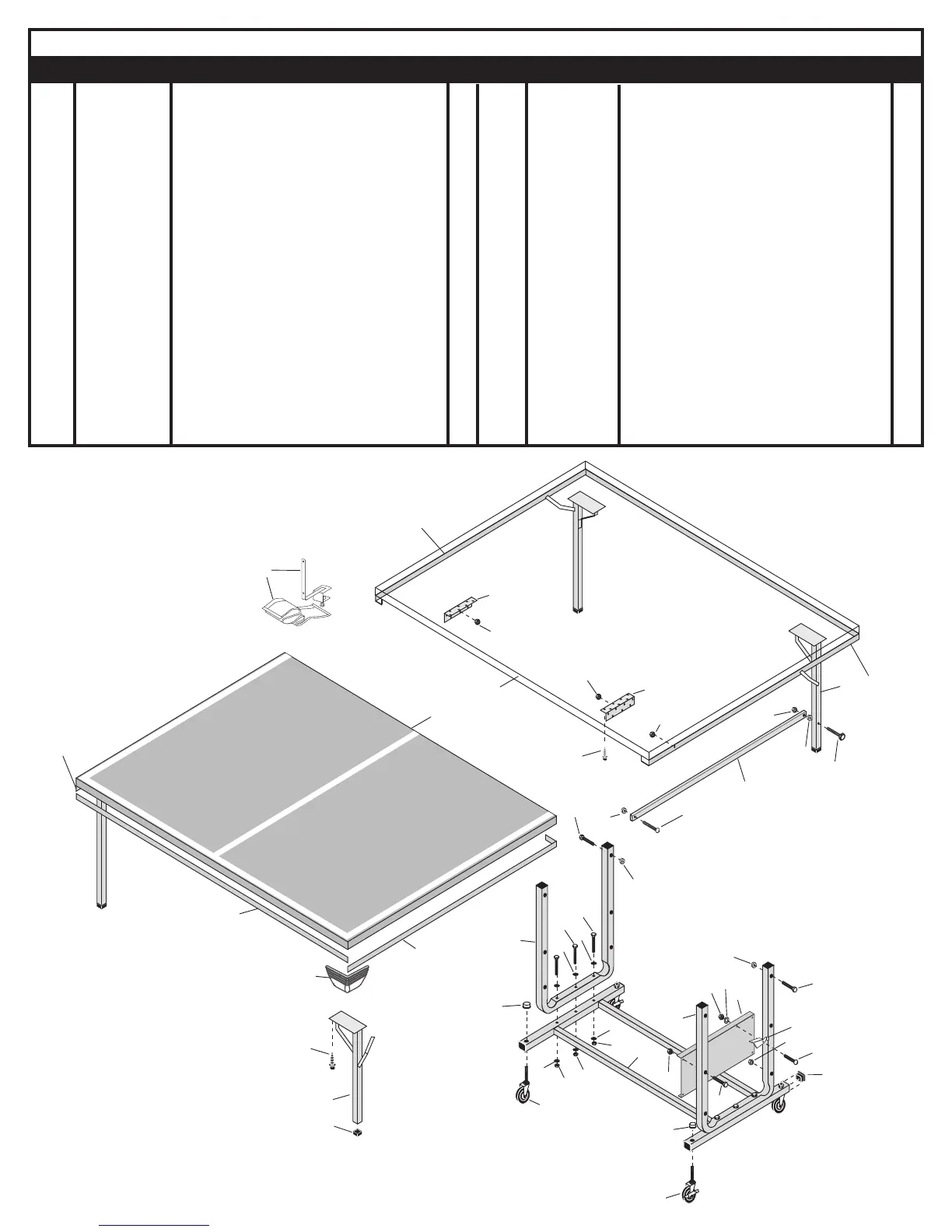

Replacement Parts List for T8501
1 1A-6130-01 Base Frame 1
2 3M-4116-00 Leg Cap 4
3 2Q-6457-00 Caster without brake 2
4 2Q-6458-00 Caster with brake 2
5 601-84 3/8 Push nut 4
6 Number not used 4
8 8S-6505-01 “U” Upright 2
9 1B-6140-00 5/16 - 18 x 2 1/2 Hex Head Bolt 6
10 2B-6024-00 5/16 Washer 12
11 2B-6009-02 5/16- 18 Locknut 6
12 701-47 1/4 - 20 x 1 1/2 Hex Head Bolt 8
13 701-26 1/4 - 20 Locknut 12
14 2S-6136-06 Name Panel 2
15 701-1 #10 Burr Washer 2
18 2S-6264-01 Safety Latch 2
20 601-80 #10 - 24 Locknut 6
21 701-35 1/4 - 20 x 2 1/4 Hex Head Bolt 4
22 8S-6506-02 Linkage 4
23 7B-6161-00 3/8'’ Spacer 8
24 1B-6138-00 #10 - 24 x 2 3/4 Sltd Hd Screw 4
25 1A-6251-00 Left Leg Assembly 2
26 1A-6250-00 Right Leg Assembly 2
27 3M-6715-00 Corner Protector 4
28 701-105 #8 x 9/16 Screw 100
29 704-140 Tube End Cap 4
30 704-104 Spacer 4
31 2S-6856-01 Left Hand Side Rail 2
32 4A-6407-00 Table Top 2
33 2S-6714-00 End Rail 2
34 2S-6855-01 Right Hand Side Rail 4
35 801-120B #10 - 24 x 3/4 Phill Hd Screw 2
36 5A-6700-00 Net & Post Kit 1
40 2S-6139-01 Leg Mounting Bracket 4
42 2L-7115-00 This Owner’s Manual 1
43 704-58 Thread Protector 4
Key # Part No. Description Qty. Key # Part No. Description Qty.
