15FCS-KM
English / USA

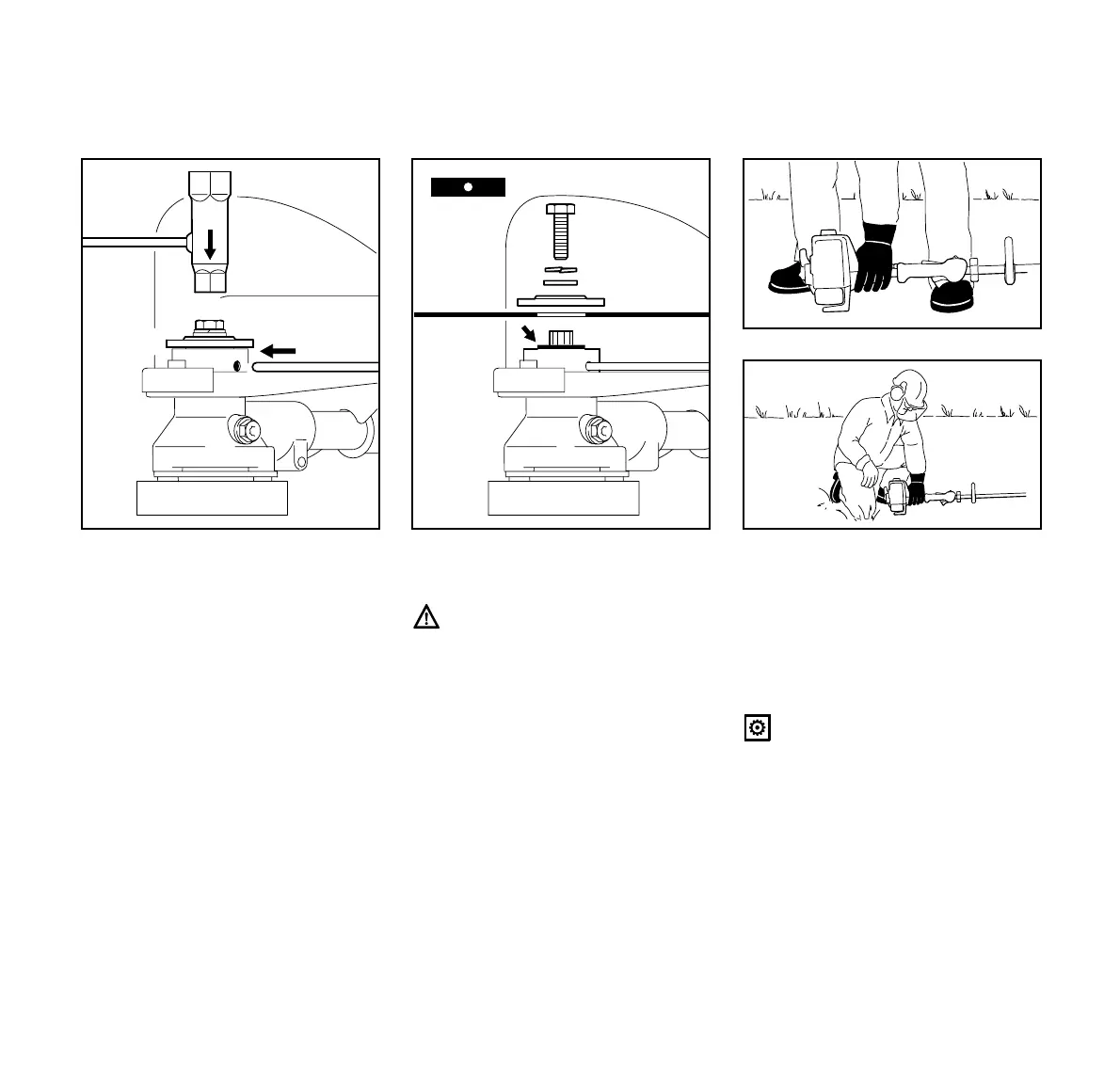

: Insert stop pin* or Allen wrench* (2)
as far as possible in the bore (3) –
push lightly and rotate it back and
forth together with the thrust
washer (4) until the drive shaft is
blocked.
: Apply combination wrench (5) to
screw (6).
: Loosen screw clockwise (left-hand
thread) and take it out.
: Remove retaining ring, plain washer
and thrust washer.
* see "Guide to Using this Manual"
: Position blade (7) on the thrust
plate (8).
Collar (see arrow) must engage
hole in blade!
: Fit thrust washer (4) on the drive
shaft (9).
: Block the drive shaft.
: Insert screw (12) with plain washer
(10) and retaining ring (11) in shaft
counterclockwise and tighten down
firmly.
: Place the unit on the ground: Check
that the blade is not touching the
ground or any other obstacles.
: Make sure you have a firm footing.
: Press the unit firmly against the
ground with your left hand. Your
thumb should be under the housing.
Do not stand or kneel on the drive
tube!
6
3
406BA005 KN
2
4
5
8
4
7
406BA006 KN
9
10
11
12
7
Starting / Stopping
the Engine
406BA007 KN
406BA008 KN
