18
English / USA
FCS-KM

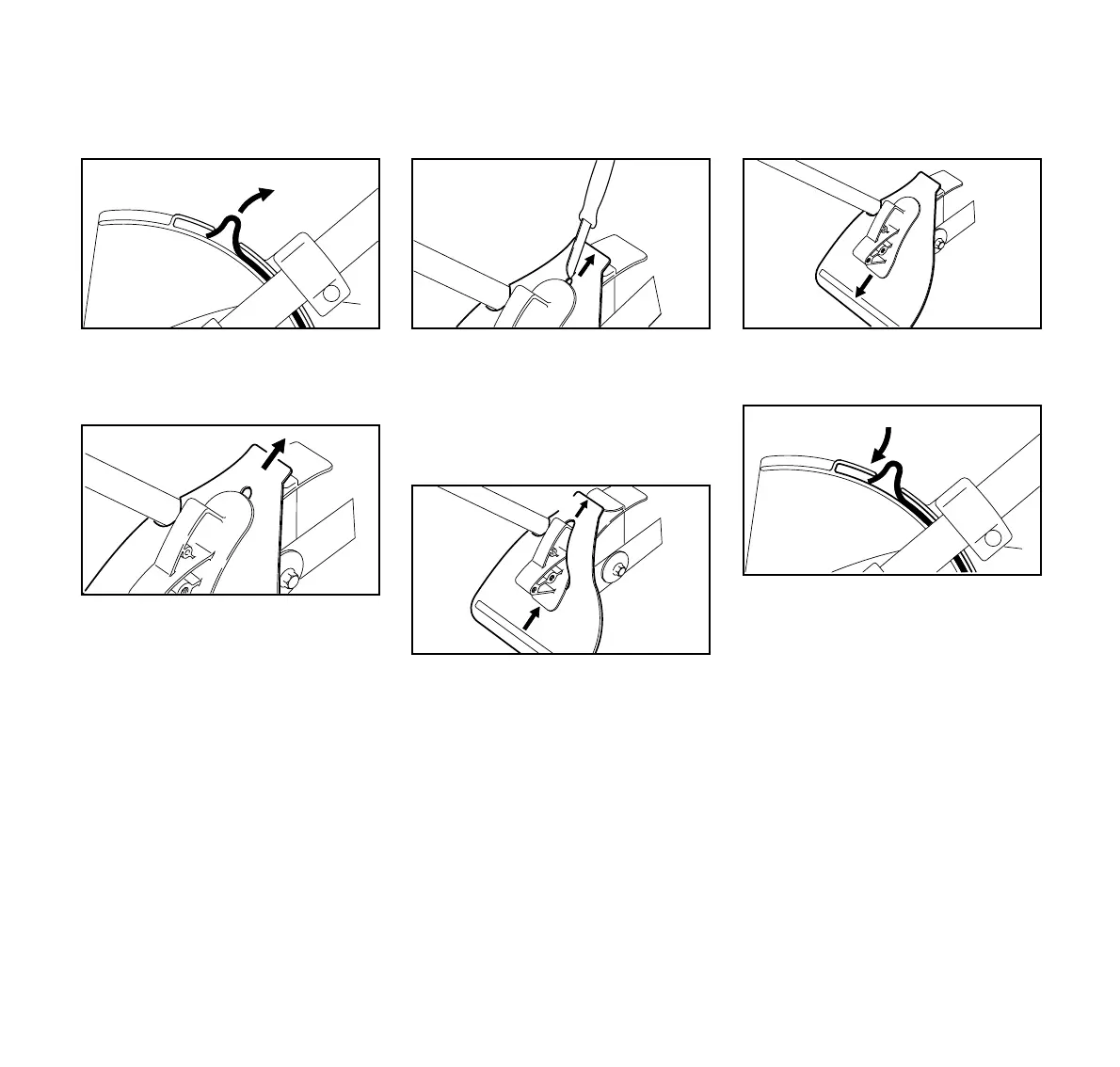

: Pull end (5) of skirt out from under
the lip on the deflector.
: Pull the skirt upward until the slot (6)
is visible.
: Use a knife to cut through the skirt,
starting at the slot, and then remove
the skirt.
Fitting the skirt
: Starting from the bottom (a), fit the
skirt in the holder, push it up all the
way and pull it (b) over the edge of
the holder until it slips into position.
: Grip the skirt and pull it down firmly.
: Push the end (5) of the skirt under
the lip on the deflector.
245BA021 KN
5
6
245BA033 KN
245BA022 KN
b
245BA023 KN
a
245BA024 KN
245BA025 KN
5
