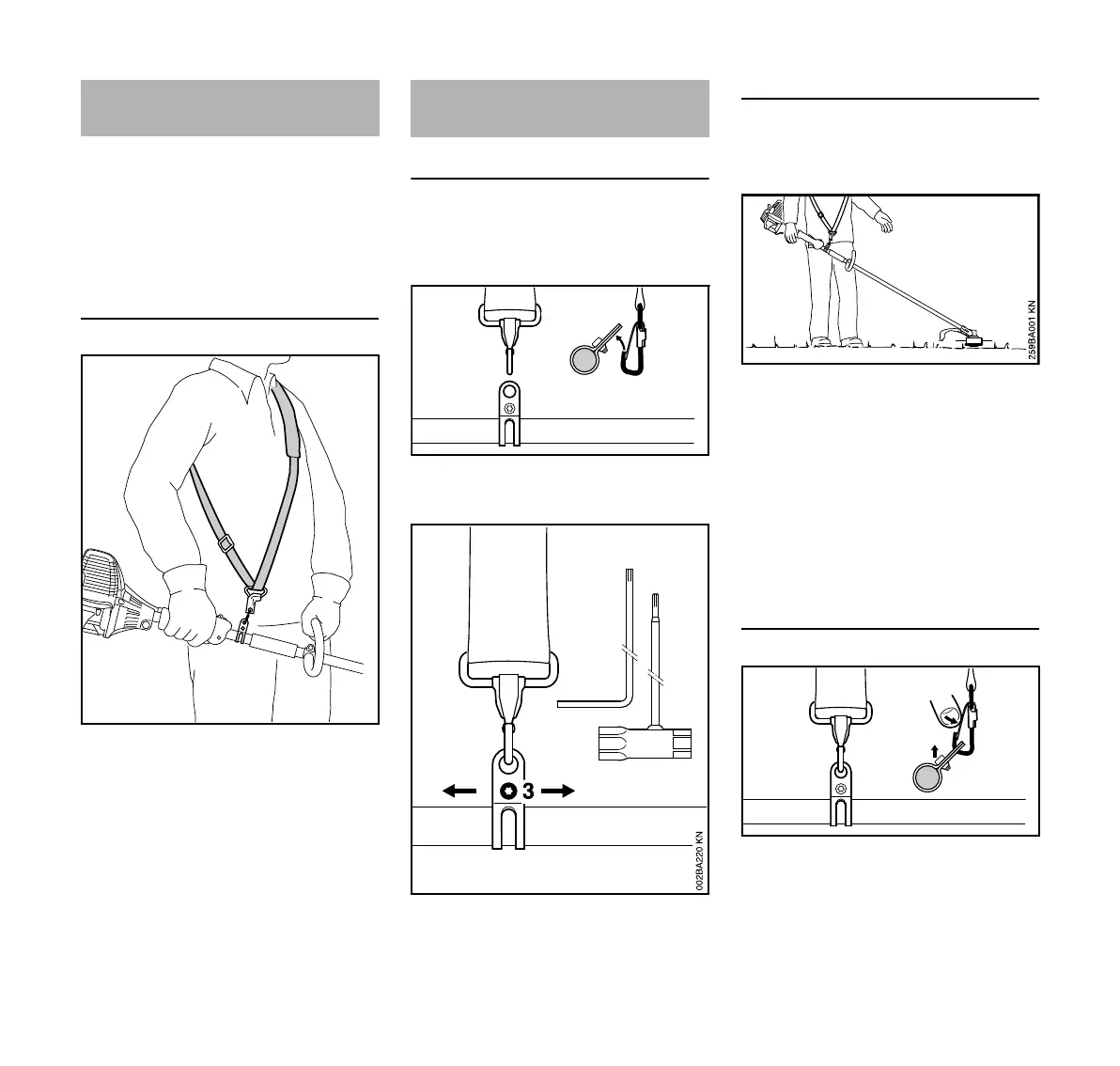

The type and style of the harness
depend on the market.
The use of the harness is described in
the chapter on "Approved Combinations
of Cutting Attachment, Deflector, Handle
and Harness".
Shoulder strap
N Put on the shoulder strap (1).
N Adjust the length of the strap so that
the carabiner (2) is level with your
right hip when the machine is
attached.
N Balance the brushcutter.
Attaching the unit to the harness
The type and style of the harness and
carabiner (spring hook) depend on the
market.
N Attach the carabiner (1) to the
carrying ring (2) on the drive tube.
N Loosen the screw (3).
Balance the brushcutter.
N Adjust the carrying ring.
N Tighten the screw moderately.
N Let go of the brushcutter and check
to see how it is balance – the cutting
tool should just touch the ground in
the normal working position.
N Move the carrying ring as required.
When the correct floating position has
been reached:
N Tighten down the screw on the
carrying ring firmly.
Detaching the unit from the harness
N Press down the bar on the
carabiner (1) and pull the carrying
ring (2) out of the carabiner.
Fitting the Harness
1
259BA016 KN
2
Balancing the
Trimmer/Brushcutter
1
2
1
2
002BA311 KN
1
2
1
2
002BA312 KN
