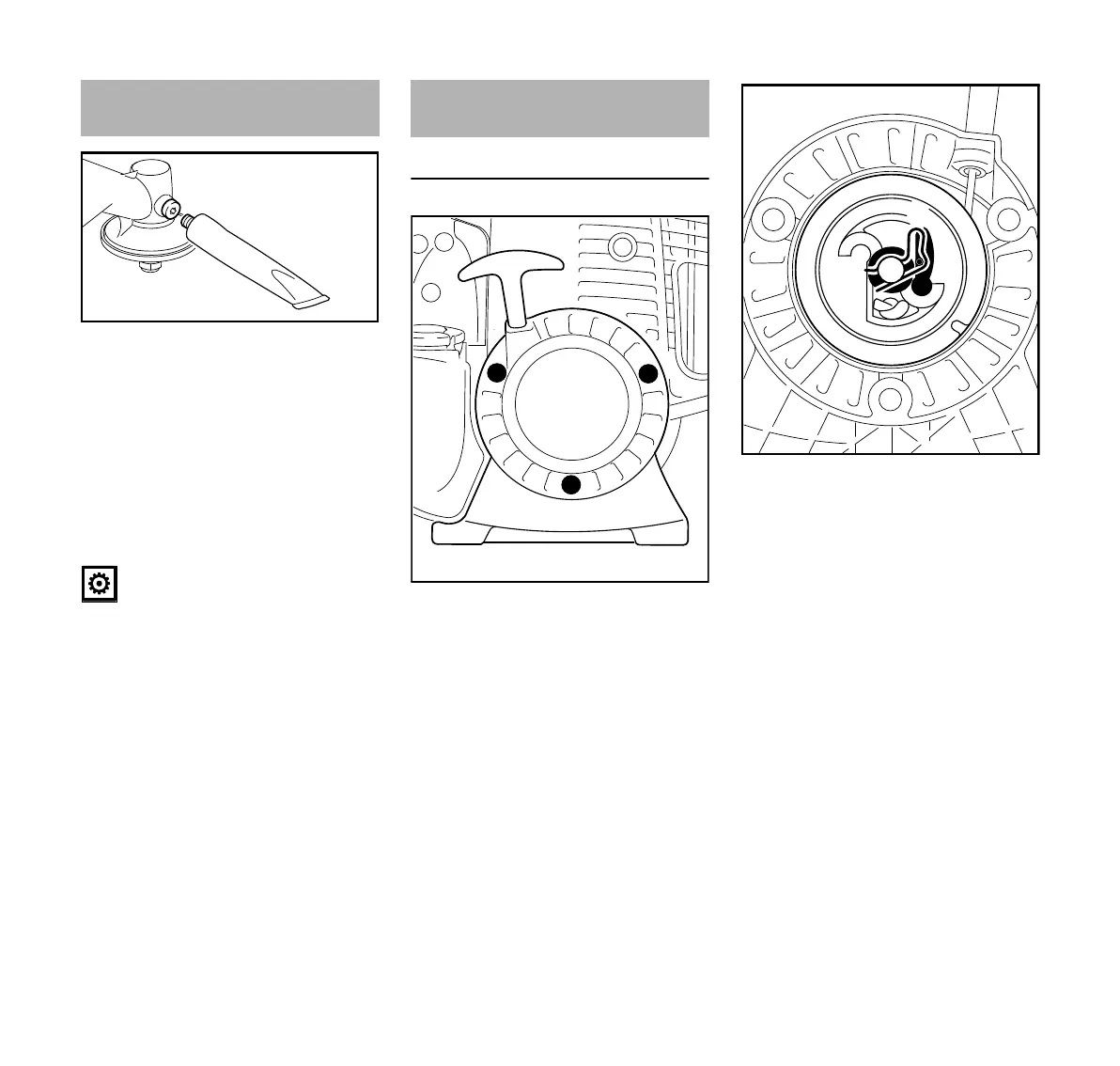

N Check lubricant filling periodically
and after approx. every 25 hours of
operation
N Unscrew the locking screw (1) – if
no grease can be seen on the
inside, then screw in the tube (2) of
STIHL gear lubricant for
brushcutters (special accessory)
N Squeeze up to 1/5 oz (5 g) of
grease into the gear housing
Do not completely fill the gear housing
with grease.
N Unscrew lubricant tube (2)
N Refit locking screw and tighten
securely
Replacing the Starter Rope
N Push the slide control in direction of
arrow h – to STOP-0.
N Take out the screws (1).
N Remove the starter cover (2) from
the housing.
N Ease the spring clip (3) off the
starter post.
N Remove the rope rotor with
washer (4) and pawl (5).
N Remove the remaining rope from
the rotor and starter grip.
Lubricating the Gearbox
1
233BA010 KN
2
Replacing the Starter Rope
and Rewind Spring
1
1
249BA061 KN
2
1
4
3
5
249BA013 KN
