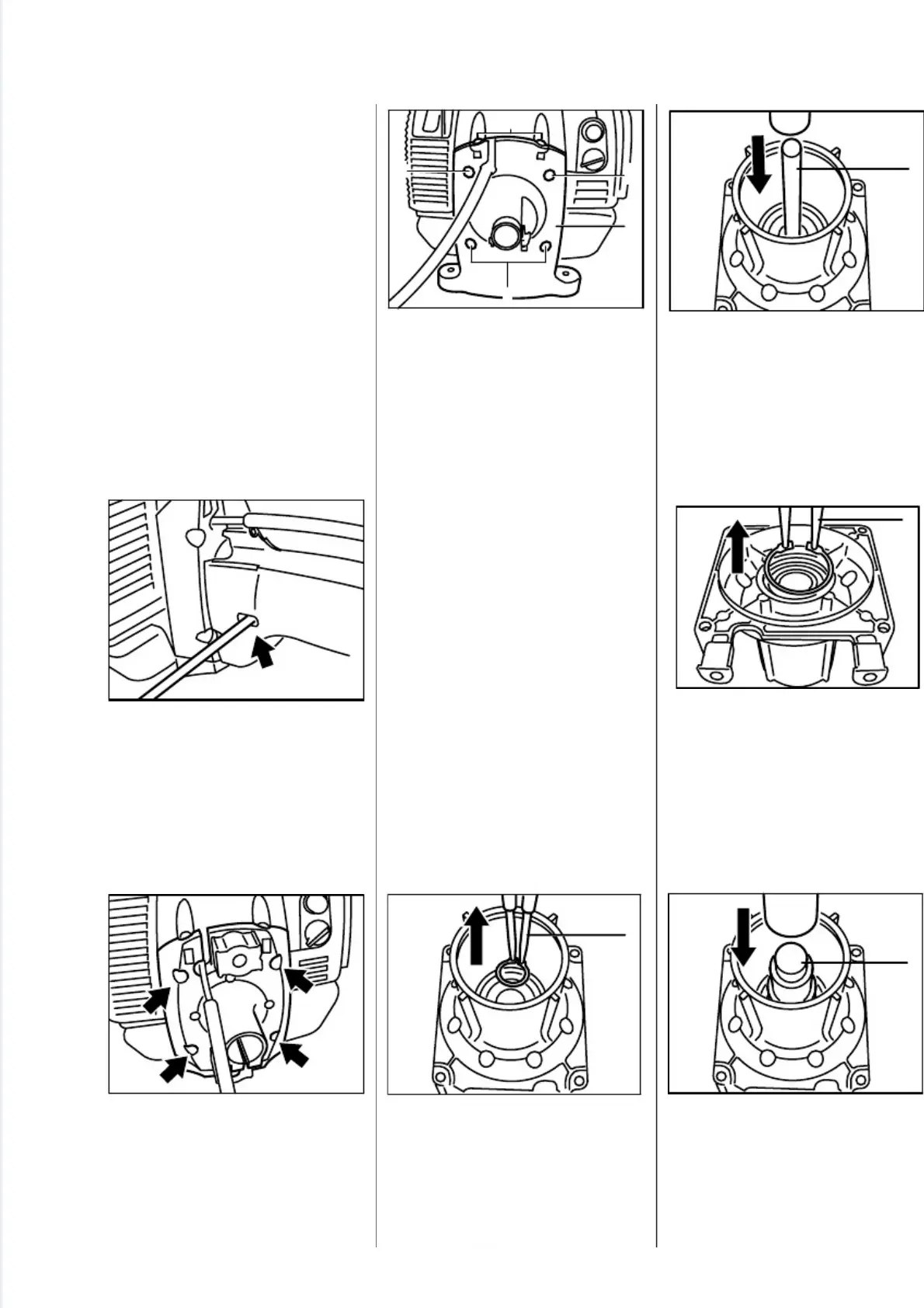

FS 120/200
- Take rubber element (AV
system) out of clutch housing -
see 9.1.
FS 300...450
- Remove the control handle -
see 10.1.
- Remove the throttle cablefrom
the AV housing- see 9.2.
•
Release the clamp screw.
- Pull the drive tube out of the
clutch housing.
- Inspect rubber buffers, replace if
necessary.
•
Take out the screws.
- Pull off the clutch housing.
FR 350/450
- Remove the powerhead from the
support frame -see 9.3.
•
Remove screws (1) from the
shroud.
•
Remove screws (2) from the
clutch housing (3).
- Take off the clutch housing.
Illustrations show the FS 120/200
clutch housing.
•
Use pliers (1) 0816 610 1495 to
remove retaining ring from the
clutch drum stub.
•
Use drift (1) 1108 893 4700 or
1110 893 4700 to press clutch
drum out of ball bearing.
•
Use pliers (1) 0811 641 8380 to
take retaining ring out of clutch
housing.
•
Use press arbor (1) 1120 893
7200 to remove ball bearing from
clutch housing.
Install in the reverse sequence.
11.2 Clutch Drum
