16.2 Removing and Attaching the Roller

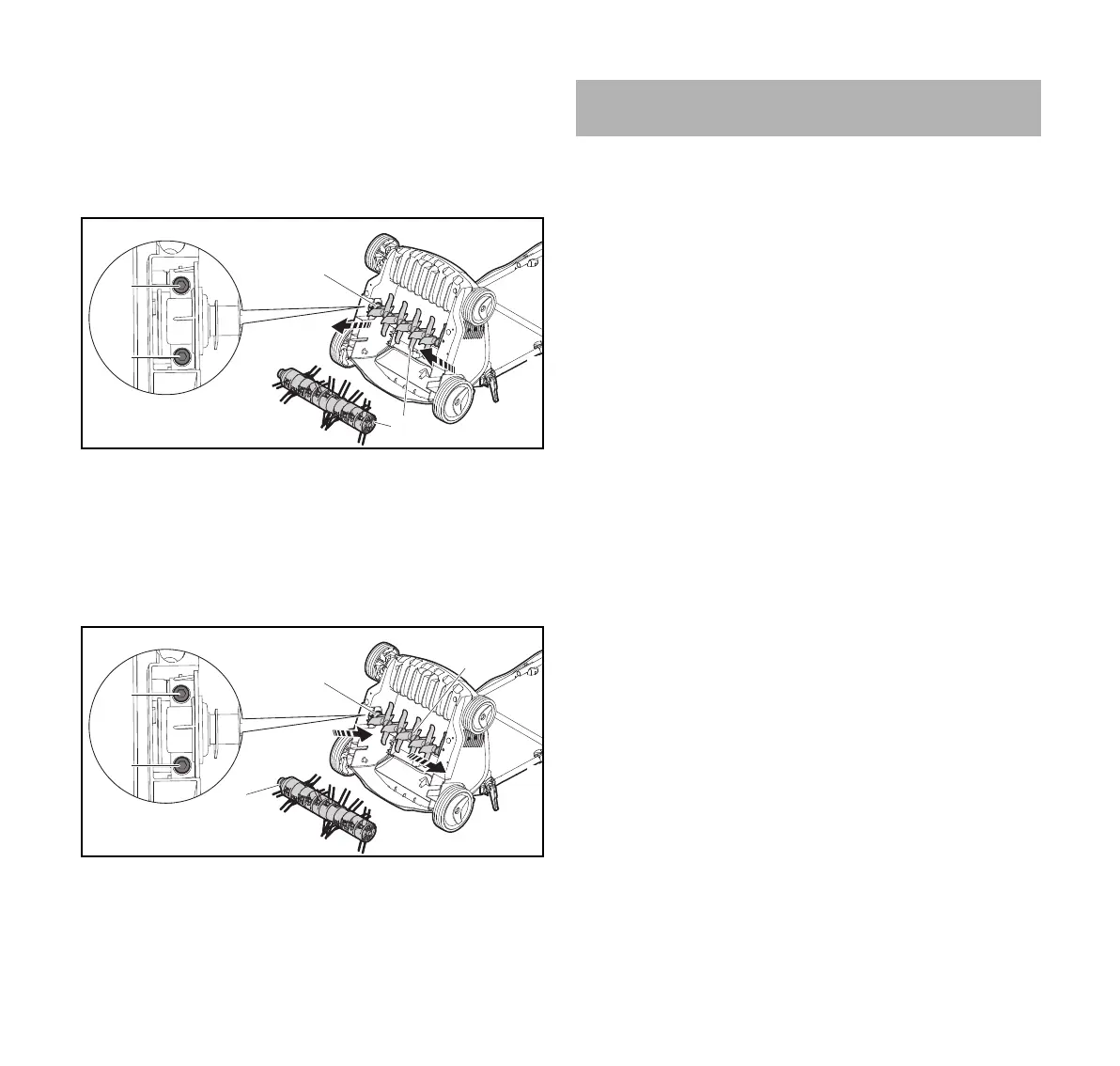

16.2.1 Detaching the Roller
► Switch the lawn scarifier off and detach the extension
cable connector from the mains plug of the lawn scarifier.
► Upend the lawn scarifier.
► Unscrew screws (1).
► Remove installed roller (3) together with holder (2).
16.2.2 Attaching the Roller
► Switch the lawn scarifier off and detach the extension
cable connector from the mains plug of the lawn scarifier.
► Upend the lawn scarifier.
► Insert scarifying roller (2) or combing roller (4) together
with holder (3) into the mount.
► Install screws (1) and tighten firmly.
17.1 Repairing the Lawn Scarifier
The user should not repair the lawn scarifier or rollers
themselves.
► If the lawn scarifier or rollers are damaged: do not use the
lawn scarifier or rollers and consult a STIHL specialist
dealer.
► If warning signs are illegible or damaged: have the
warning signs replaced by a STIHL specialist dealer.
