English 7 Assembling the Lawn Mower

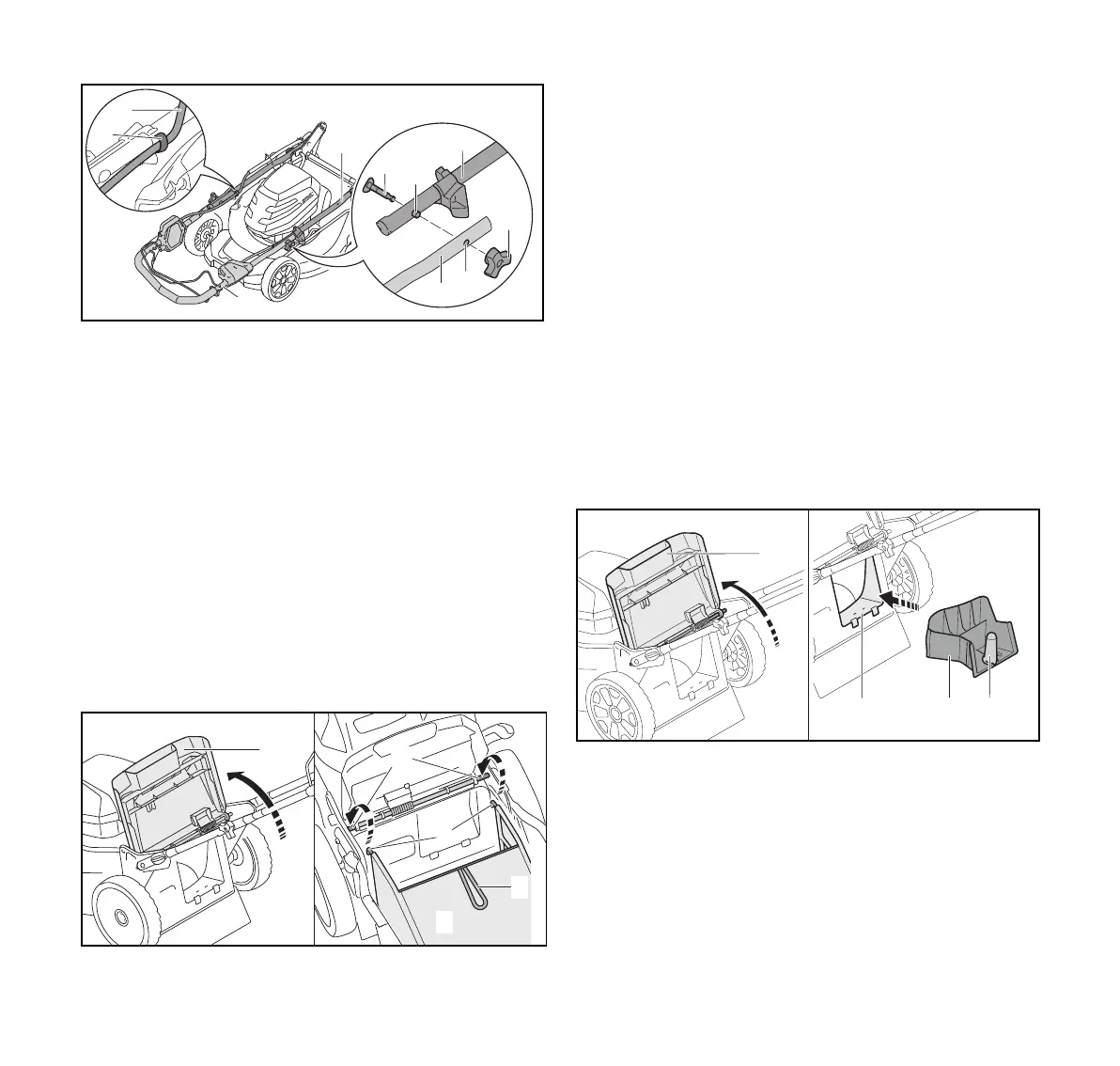

► Align upper handle (1) and lower handle (2) so that the pin
(4) engages the hole (3) at both sides.
► Insert screw (5) and line it up so that the screw head is
flush with the lower handle (2) on both sides.
► Fit the star knob nut (6).
► Push the cable (7) into the retainer (8).
The handle need not be removed again.
7.2 Fitting and Removing the Grass Box
7.2.1 Fitting the Grass Box
► Switch off the mower, remove the activation key and
battery.
► Place the mower on a flat surface.
► If the side chute is still in place: Remove the chute.
► If the mulch plug is still in place: Remove the mulch plug.
► Open the discharge shield (1) and hold it in position.
► Hold grass box (2) by the handle (3) and engage the
hooks (4) on the rod (5).
► Rest the discharge shield (1) on the grass box (2).
7.2.2 Detaching the Grass Catcher Box
► Switch the lawn mower off.
► Place the lawn mower on a level surface.
► Open the discharge flap and hold it open.
► Remove the grass catcher box upwards by the handle.
► Close the discharge flap.
7.3 Fitting and Removing the Mulch Plug
7.3.1 Fitting the Mulch Plug
► Switch off the mower, remove the activation key and
battery.
► Place the mower on a flat surface.
► Open the discharge shield (1) and hold it in position.
► Hold the mulch plug (2) by the grip (3) and fit it in the
discharge duct (4).
► Close the discharge shield (1).
7.3.2 Removing the Mulch Plug
► Switch off the mower, remove the activation key and
battery.
► Place the mower on a flat surface.
