STIHL TS 400 7

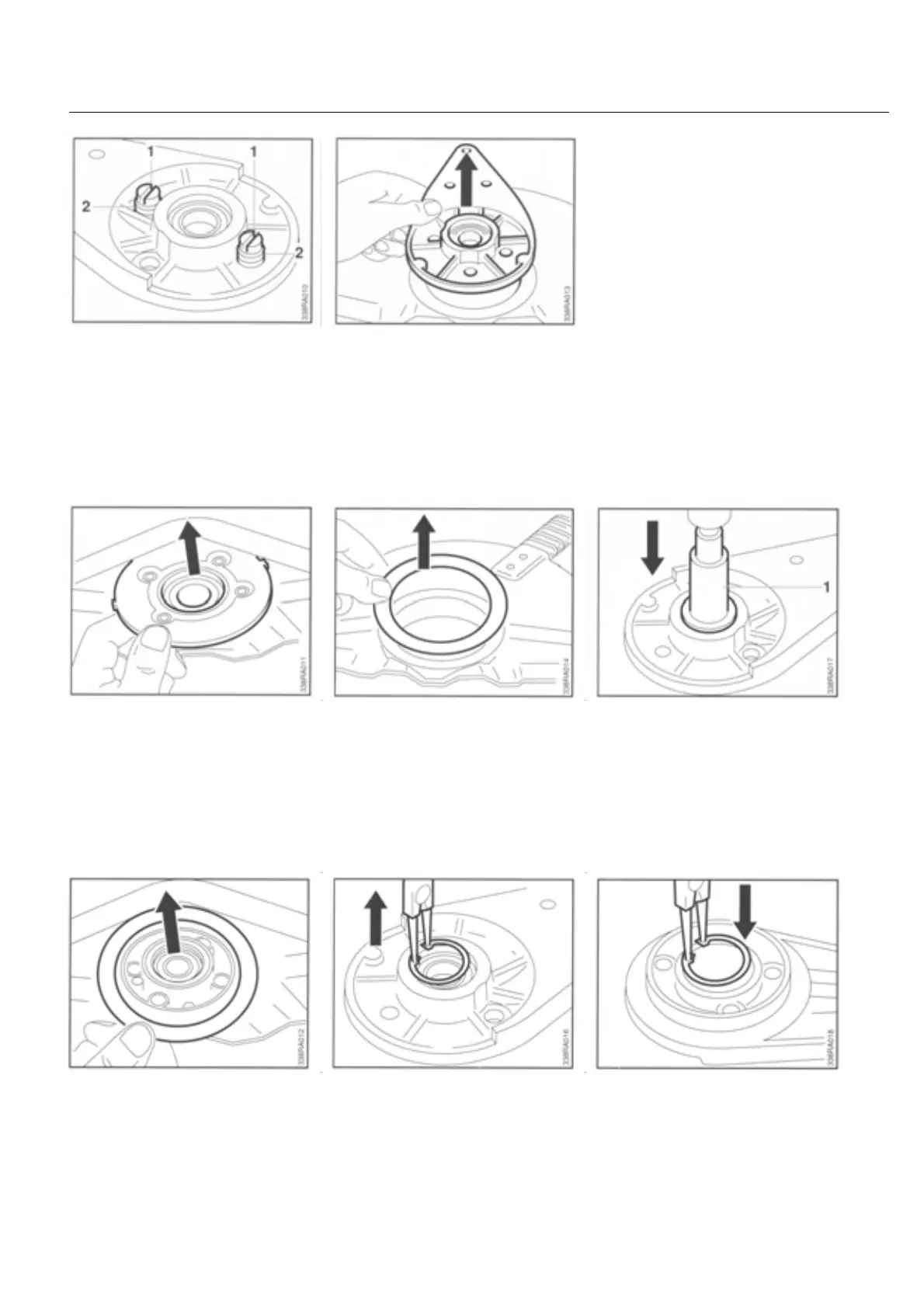

Important! Use pliers with
shortened, rounded tips.
Note: Particular attention must be paid
to the following points.
• Insert circlip in one of the
grooves of the bearing.
• Remove flange.
• Remove washer and rubber ring. • Press both deep groove ball
bearings and the ring out of the
bearing with drift pin (1).
The parts are reassembled in
reverse order.
• Draw bearing out of rubber ring.
• Unscrew both screws (1) and
remove with helical springs (2) and
sleeves.
• Remove circlips from the
grooves in front of the deep
groove ball bearings.
• Remove washer with rubber ring.

Stihl TS 400 Specifications

General

Arbor Size	20 mm
Power Output	3.2 kW
Engine Type	2-stroke
Sound Pressure Level	98 dB(A)
Sound Power Level	109 dB(A)
Maximum Wheel Size	350 mm
Wheel Size	14 in.
Maximum Cutting Depth	125 mm
Cutting Depth	125 mm
Blade Diameter	14 in.
Warranty	2 years
Engine Power	3.2 kW
