Stihl TS 420 Instruction Manual

TS 410, TS 420
English
22

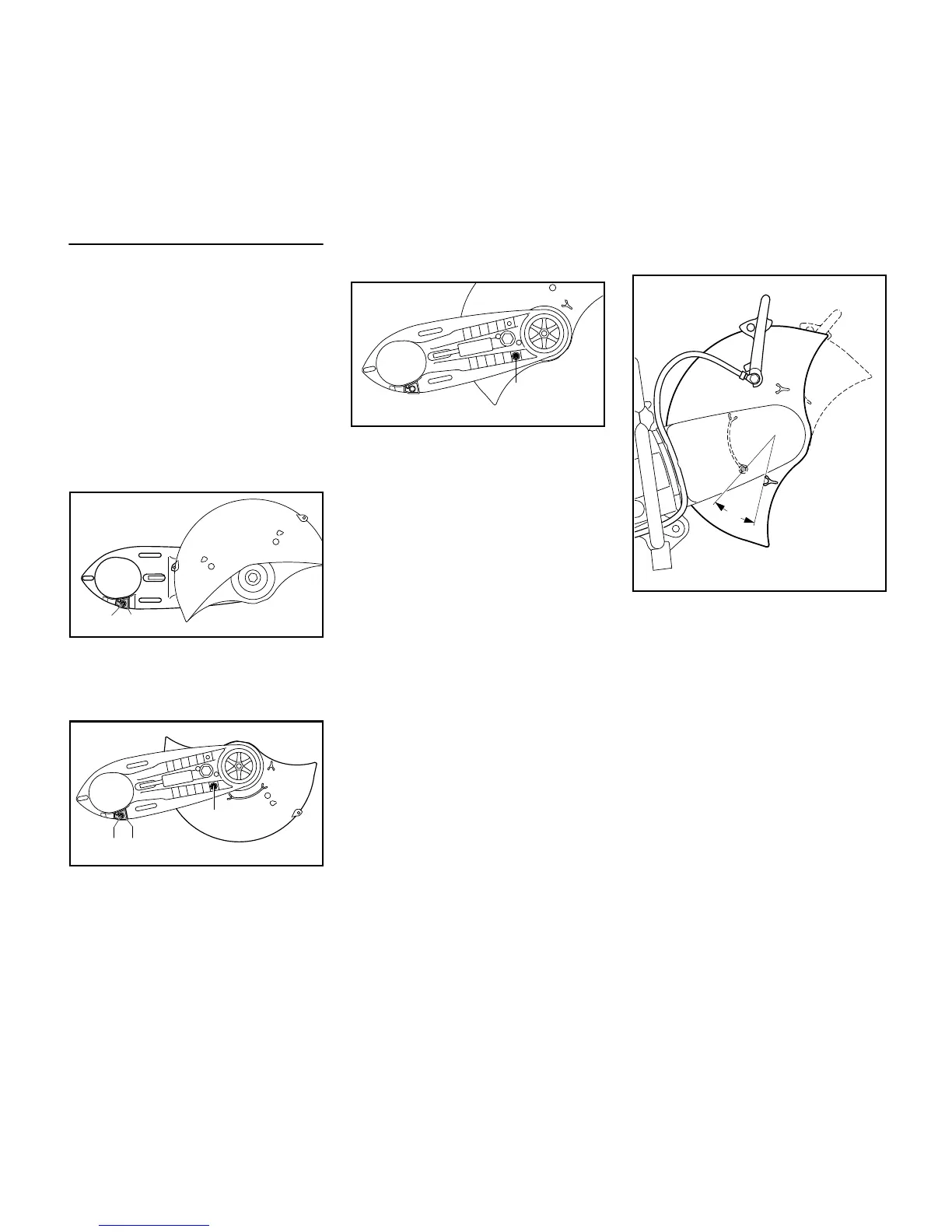

Inboard mounting
N Disassemble the cutting wheel (see
“Fitting / replacing an cutting wheel”)
N Remove water attachment
N Remove the adjusting lever
N Slacken the V-belt
N Remove the V-belt guard
N Remove the "cast arm with guard"
Preparing the "cast arm with guard" for
inboard mounting
N Unscrew the screw(1) of the limit
stop(2)
N Remove the limit stop(2)
N Turn the "cast arm with guard" so
that the guard is on the inboard side
N Insert limit stop(2) – align the hole
in the limit stop with the hole in the
cast arm
N Screw in the bolt(1) and tighten up
N Unscrew stop pin(3)
N Turn the guard so that it is in the
position shown (see picture)
N Screw in and tighten the stop pin(3)
N Install the adjusting lever
N Mount "cast arm with guard" – guard
on the inboard side
N Install the V-belt guard
N Connect water connection
Check the adjustment range of the
guard
N Rotate the guard forwards and
backwards as far as possible –
adjustment range (A) must be
limited by the stop pin
Continue as described in the chapter
“Tensioning the V
-
belt”.
1
2
370BA080 KN
3
370BA081 KN
1
2
3
370BA082 KN
A
370BA083 KN

Stihl TS 420 Specifications

General

Engine Power	4.4 bhp
Weight	21.2 lbs
Arbor Size	20 mm
Maximum Wheel Size	350 mm
Maximum Cutting Depth	125 mm
Displacement	66.7 cc (4.1 cu. in.)
Fuel Capacity	710 cc
