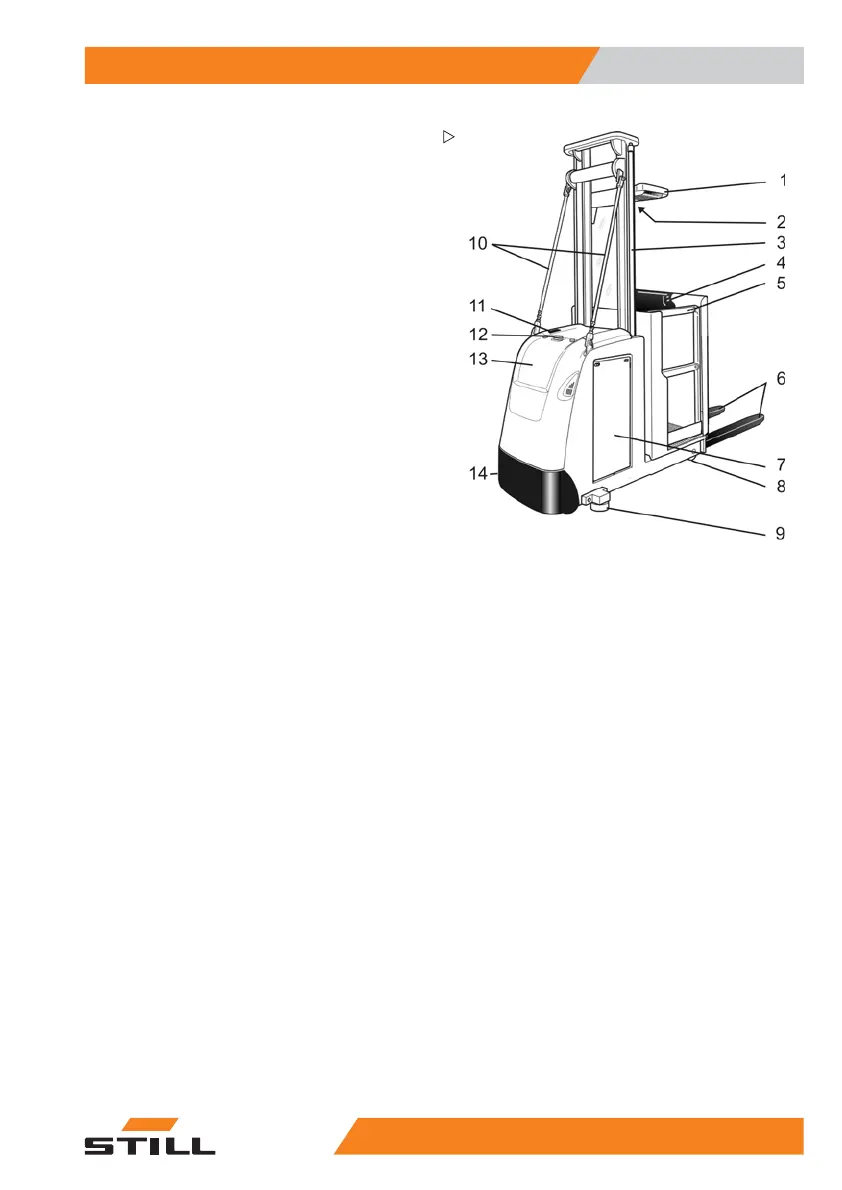

View of the truck with a high lift mas
t
Viewofthetruckwithahighlift
mast
(1) Overhead guard
(2) Abseil system (depending on the model)
(3) Lift mast
(4) Load-side operating panel
(5) Barrier
(6) Fork arms
(7) Battery compartment door*, followed by
the battery and the battery lock
(8) Load castor
(9) Guide roller*
(10) Mast bracing*
(11) Removable hood to the battery compart-
ment
(12) Direction indica
tor
(13) Removable hood
to the control compart-
ment
(14) Removable collision protection
*Option
