Still R70-45T User Manual

Maintenance 6
Safety instructions for maintenance
3
4
6210_001-023

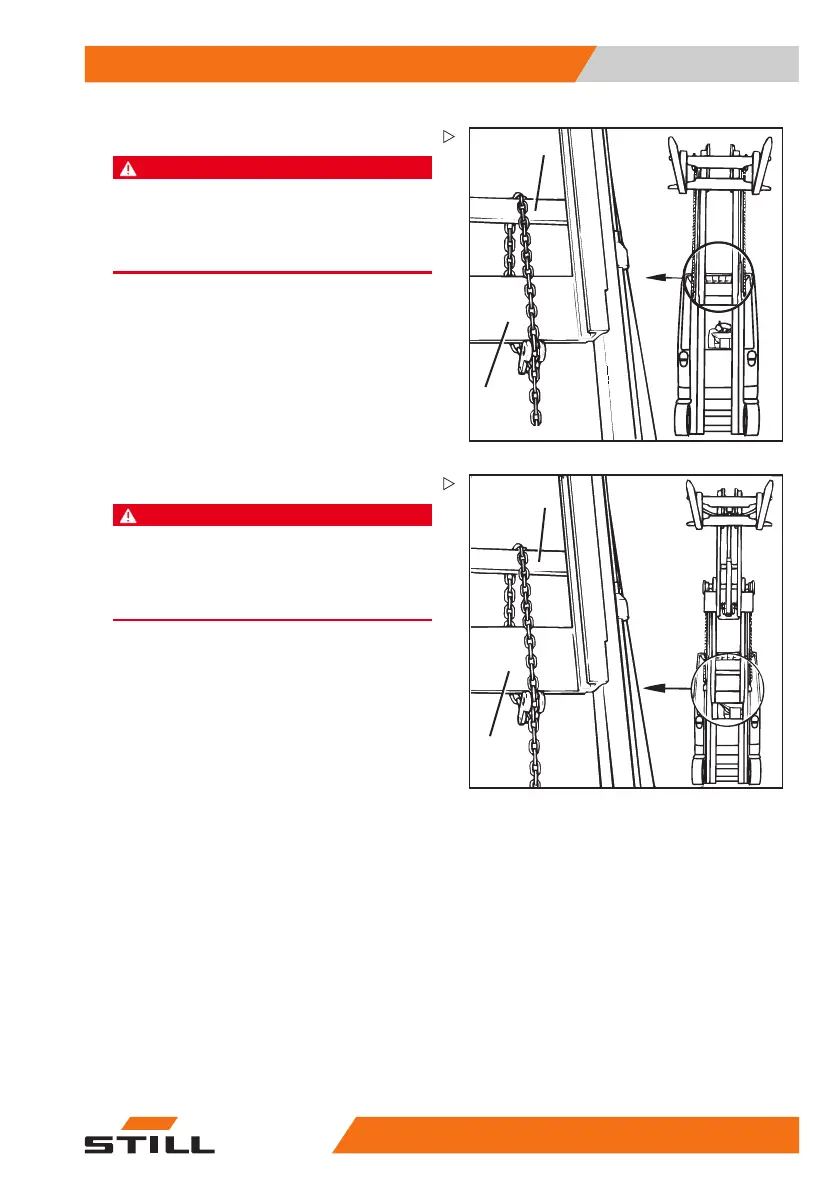

Securing the telescopic lift mast
DANGER
Risk of accident!
– To secure the lift mast, use a chain with sufficient
load-bearing capacity for the particular lift mast.
– Note the maximum lift height.
– Extend the lift mast.
– Drape the chain over the cross traverse of
the outer mast (3) and connect it under-
neath the cross traverse of the inner mast
(4).
– Lower the inner mast until it strikes the
chain.
7071_003-112
5
6
Securing the triple lift mast
DANGER
Risk of accident!
– To secure the lift mast, use a chain with sufficient
load-bearing capacity for the particular lift mast.
– Note the maximum lift height.
– Extend the lift mast.
– Drape the chain over the cross traverse of
the outer mast (5) and connect it under-
neath the cross traverse of the middle mast
(6).
– Lower the lift mast until it strikes the chain.
– Lower the fork carriage until it strikes the
stop.
171673 [EN] 193
