4
5
6
7
8
9
11
10
12
1
2
3
13
14
15
16
02
Steer axle
7

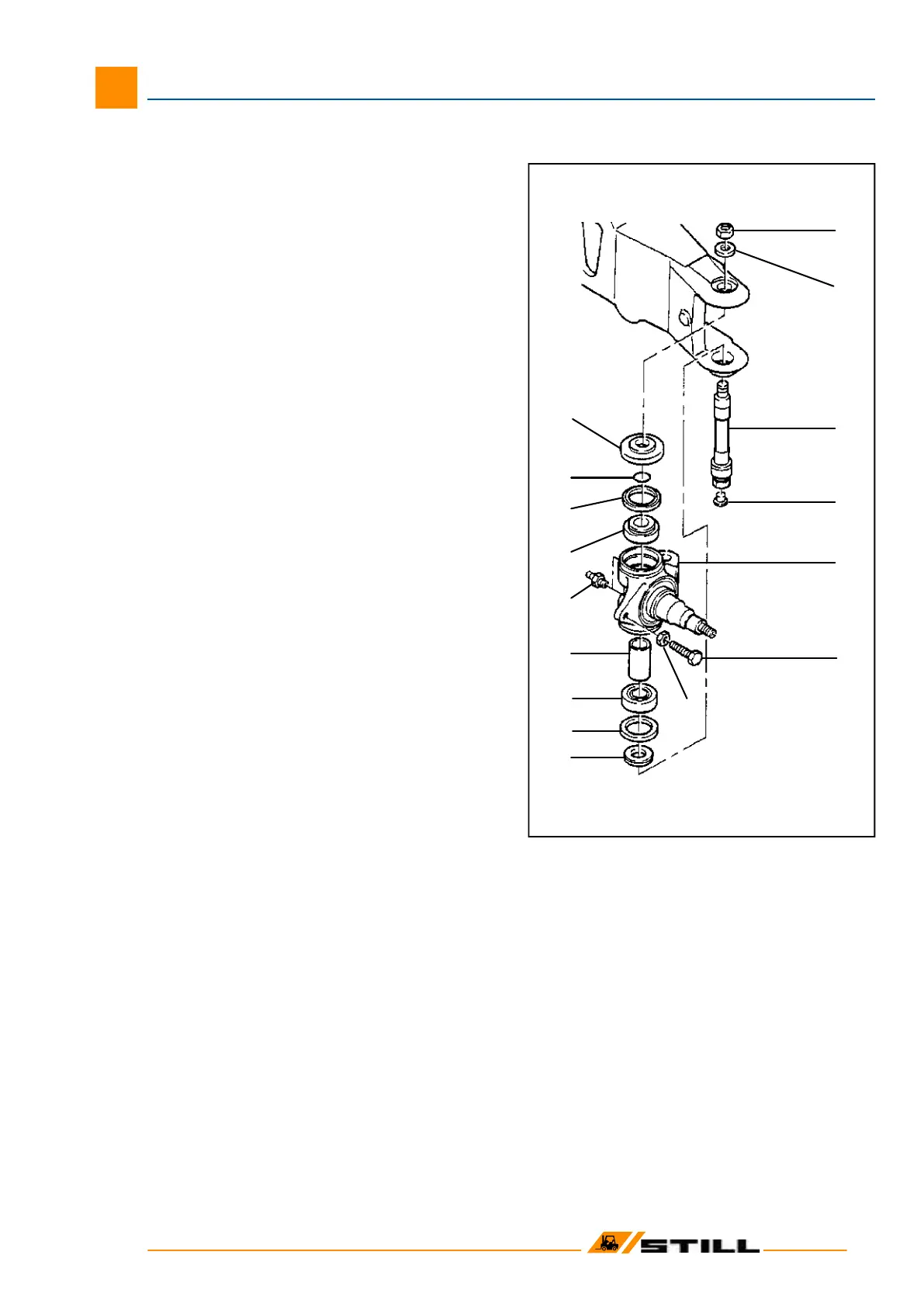

Stub axle - Removal and Dismantling
1 nut
2 washer
3 king pin
4 plug
5 stub axle
6 hex. hd. screw
7 nut
8 spacing washer
9 wiper ring
10 tapered roller bearing
11 spacer
12 grease nipple
13 tapered roller bearing
14 wiper ring
15 O-Ring
16 spacing washer
- Remove the wheel.
- Press out the pin located between track rod
and stub axle.
- Slacken nut (1).
- Remove washer (2).
- Press the king pin (3) down through the stub
axle and remove the king pin.
- Remove the stub axle from the axle.
- Remove from the stub axle: spacing
washers, ‘O’ ring, wiper rings, tapered roller
bearings and spacer (items 8-16).
Workshop Manual 7052/56/74-76, 7054/58/77-79
