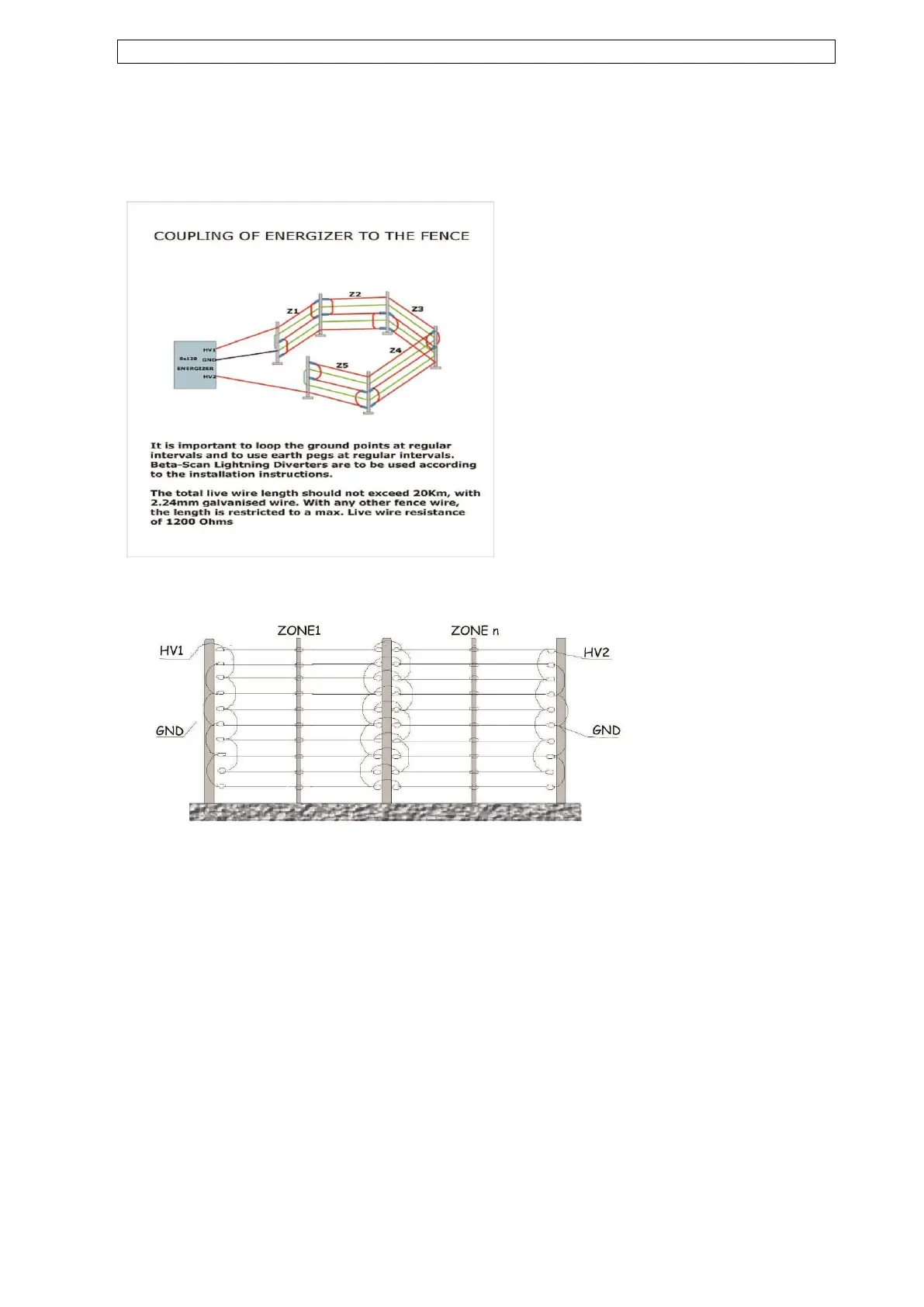

FENCE WIRING EXAMPLES
It is important to always loop the earth wires together at each zone
split.This will ensure maximum energy transfer.
For extremely long fences, or in situations where the fence
resistance becomes excessive high, wires can be connected
inparallel. It is in this case important that the parallel connections
are repeated at the end of each zone as shown above.
For more information please refer to “Stinger Specification for construction of
electric fencing” available on request.
