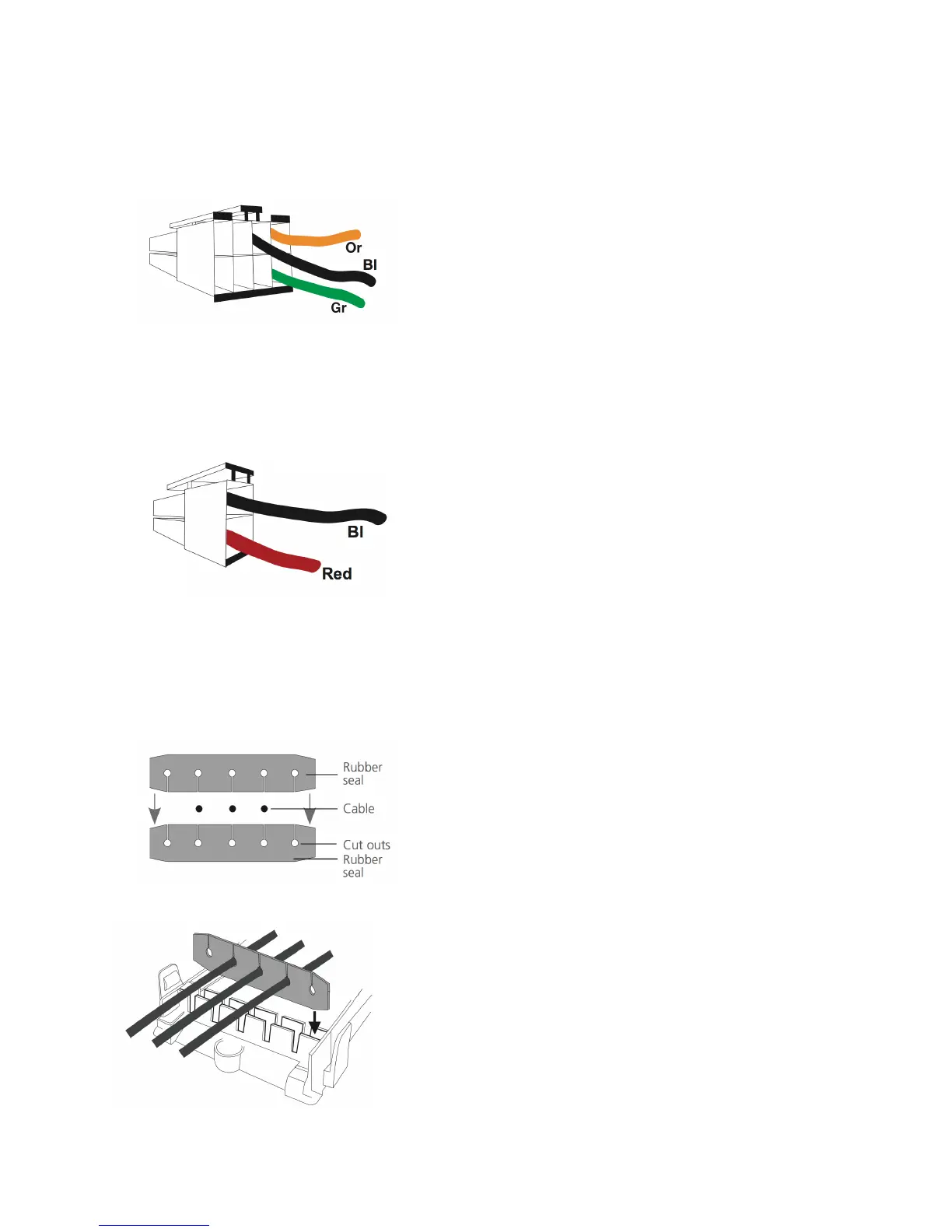

Connect the orange wire to the ignition
actuated 13.8V battery power (+15).
!
If so desired, attach the green Mute-cable to
the Mute-wire of the radio.
!
The black wire is for future use.
Connect the red wire to the 13.8V battery
power (+30).
!
Connect the black wire to a ‘clean’ metal
ground-point of the car chassis.
After all the cables have been connected, it is
important to close the boxes (see steps 2 and
5) in a water resistant manner. Place the cables
in the holes of the opposite facing ‘rubber
seals’ (see example). This prevents moisture
from getting into the box.
!
Next, place the rubber seals with the now
inserted cables into the slot, as depicted in the
example on the left. Make sure the rubbers are
pushed down all the way using silicone spray
to facilitate this. Put the lid back on so that it is
tight and secure.
