Art. 247
Electric Backpack Sprayer 15 l LI-ION
Art. 247
Electric Backpack Sprayer 15 l LI-ION
For further information about the product, please contact info@stockergarden.com.
Sign up to our newsletter and keep up to date with our latest news info@stockergarden.com
Components and spare partsComponents and spare parts
5
5
1 242/1 Tank
2 242/2 Black bottom (base, seal, screws, circuit cover)
3 242/3 Circuit cover, screws, seals
4 242/4 Lance tube connection
5 242/6 Motor connection tube with metal clips
6 242/7 O-ring set
7 242/8 Lid and filter
8 242/11 Connection tube
9 247/14 Pressure regulator
10 242/15 Fuse
11 252/35 Motor
12 252/40 Filter
13 B-257 Li-Ion battery
14 251/64 Belts
15 251/46 Loading connection
16 257/30 Voltmeter
17 C-252 Battery charger
18 242/29 Spray lance
19 242/30 Lever
20 242/31 Flow regulator

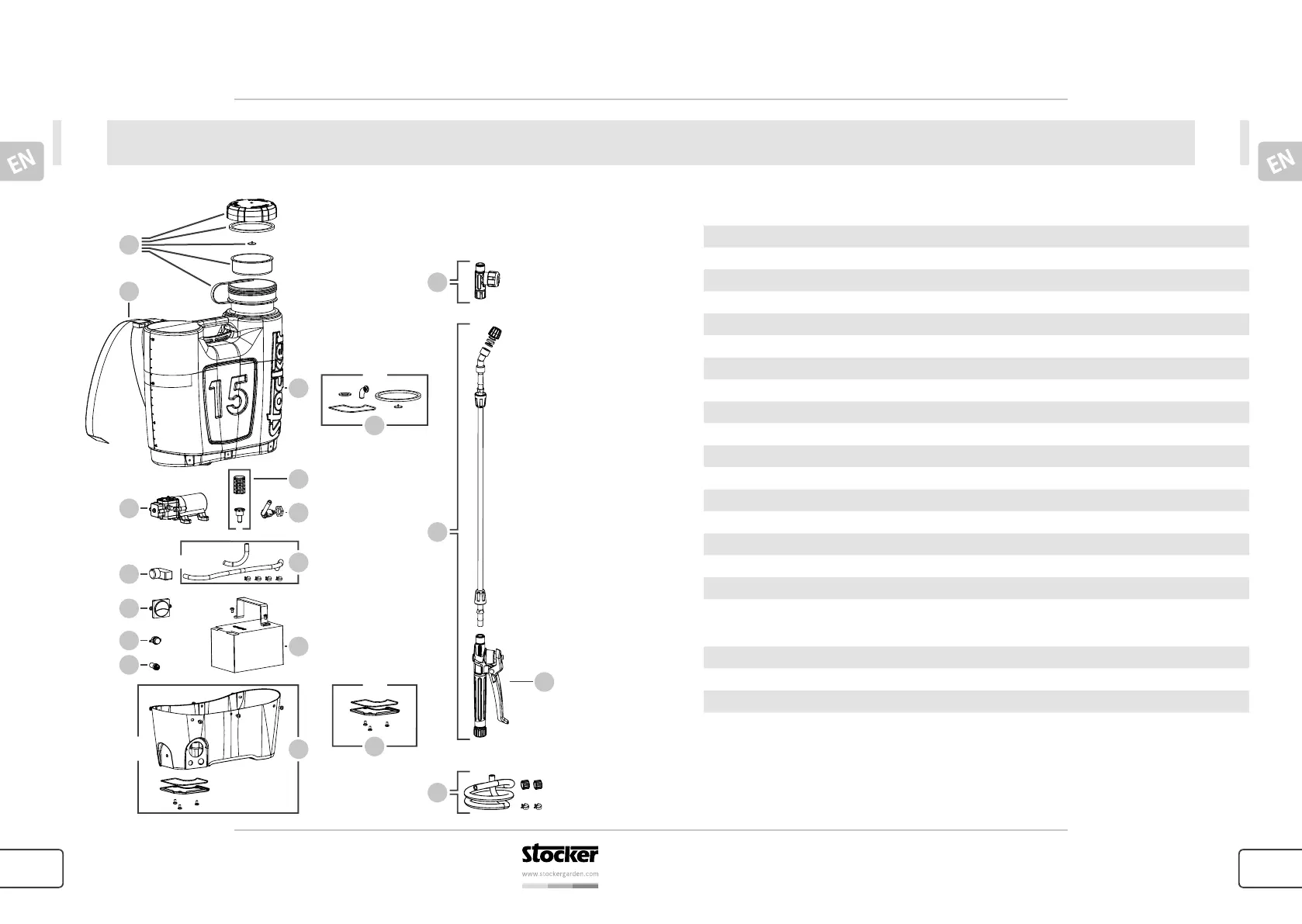

Spare parts of the sprayer
Spare parts of the spray lance
18
19
8
2
13
5
4
12
10
15
16
9
11
14
7
6
3
1
