Pruning shears Kantia E-22 TR Pruning shears Kantia E-22 TR
For further information about the product, please contact info@stockergarden.com
Art. 309 Art. 309
138 139

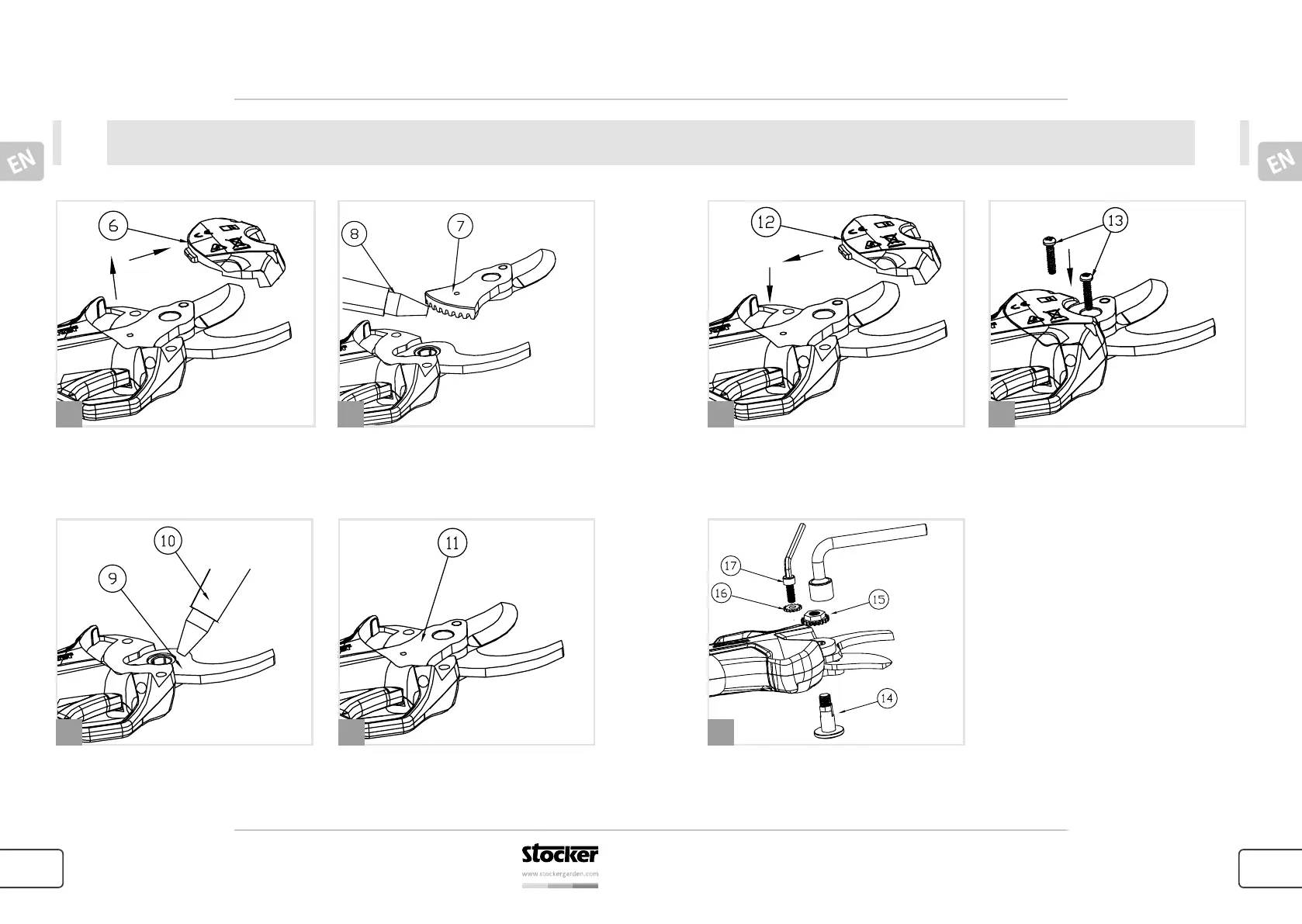

Cleaning and maintenance
Cleaning and maintenance
4. Remove the upper blade according to the
direction of number 7 and add grease after
removing any impurities (8).
5. Remove any impurities from the inner
part (9), then add grease (10).
6. Position the upper blade in the direction of
serial number (11) as shown in the image.
7. Reinsert the blade cover in the direction of
number 12 as shown in the image.
9. After greasing the side of the locking
screw in the direction of sequence number
14 as shown in the image, fit the various
pieces following the numerical order and
finally tighten the hexagon socket head
screw.
8. Tighten the self-tapping screws in the
direction of number 13 as shown in the
image.
3. Remove the blade cover in the direction of
number 6 as shown in the image.
3 4
5 6 9
87
