Stokke® PIPA™ by Nuna® 25EN 25

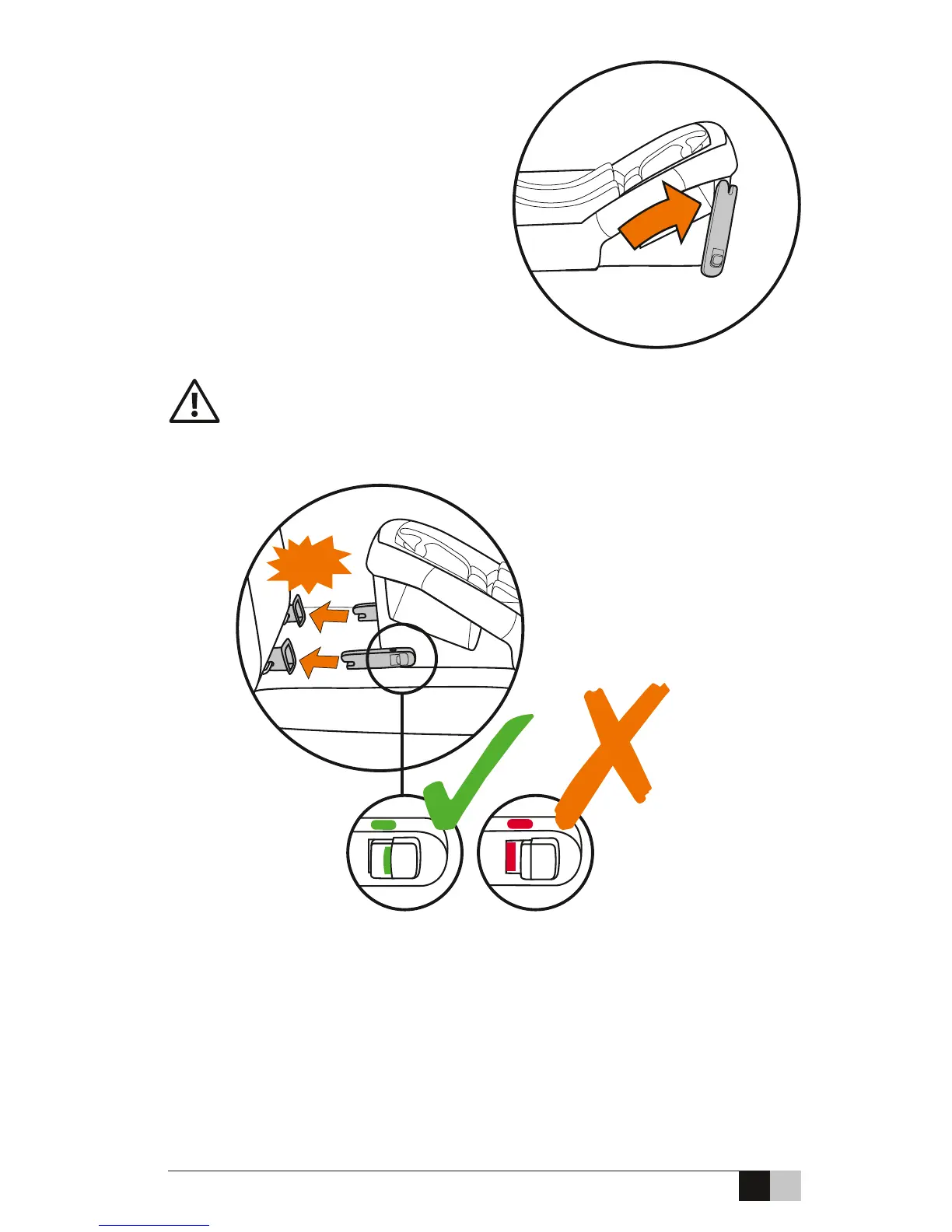

• Hook Rigid LATCH (lower attachments) onto
vehicle LATCH lower anchor bars. Conrm
proper installation by pulling on the base
AND also seeing that green is indicated on
the connectors.
The Rigid LATCH (lower attachments) must be attached and locked
onto the vehicle anchor points.
Check the installation.
• Base should not move side to side or forward more than 1” at belt path.
• Bubble must be touching line. Use recline adjustment, if needed, to position bubble.
• It is acceptable to install with both LATCH (lower attachments) and the vehicle belt.
