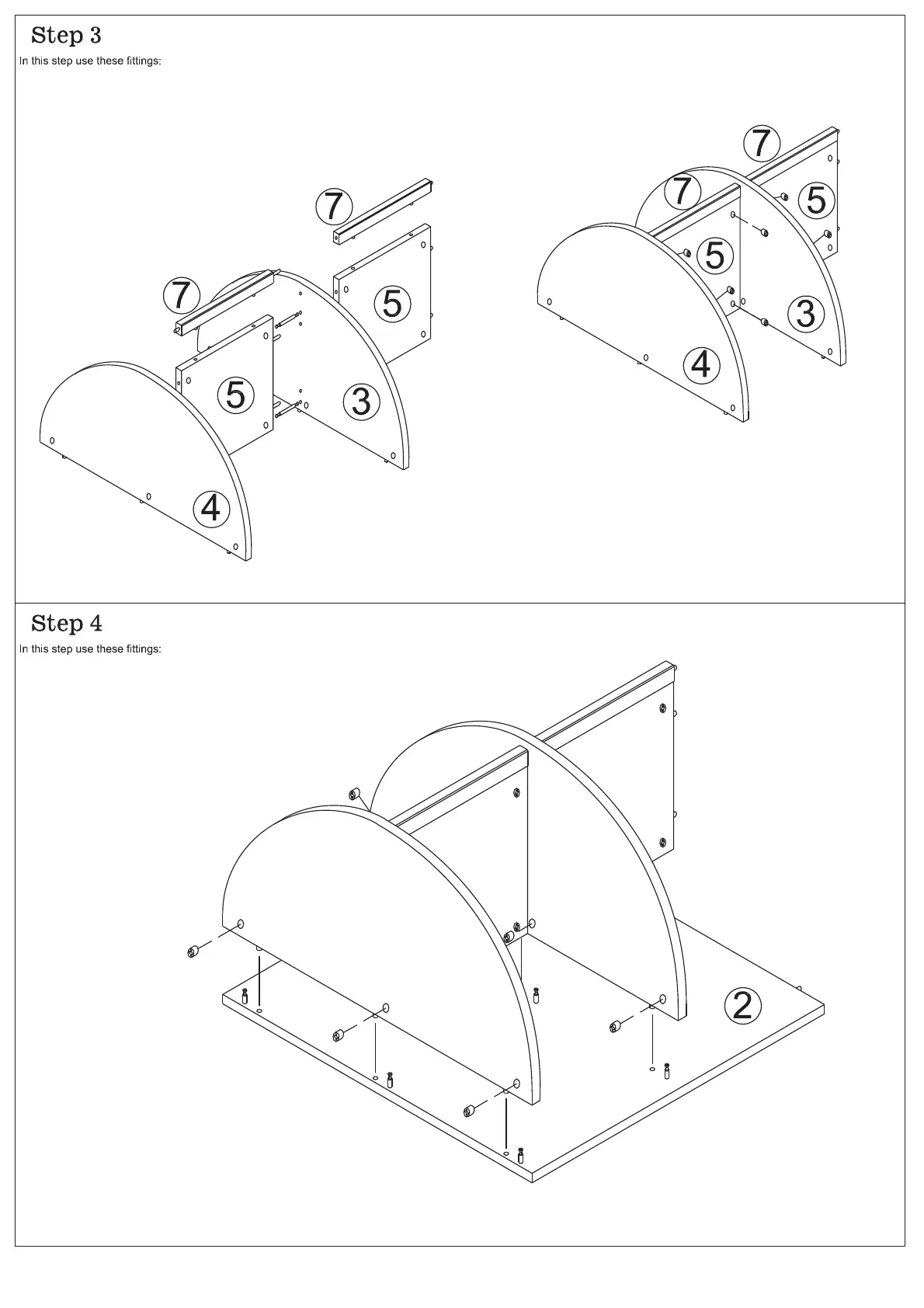

Front slat place in partiton panel. Place
eccentric bolts B in Pull Out Desk shelf 3
Assemble partition panal 5. Push partition
shelf 3, base 4 and panel 5 together and
insert locking nut C. Lock using Phillips
head screwdriver.
B x2
C x6
C x6
Assemble fixed shelf Push
back panel 2, together,
insert locking nuts C.
- 6/10 -
