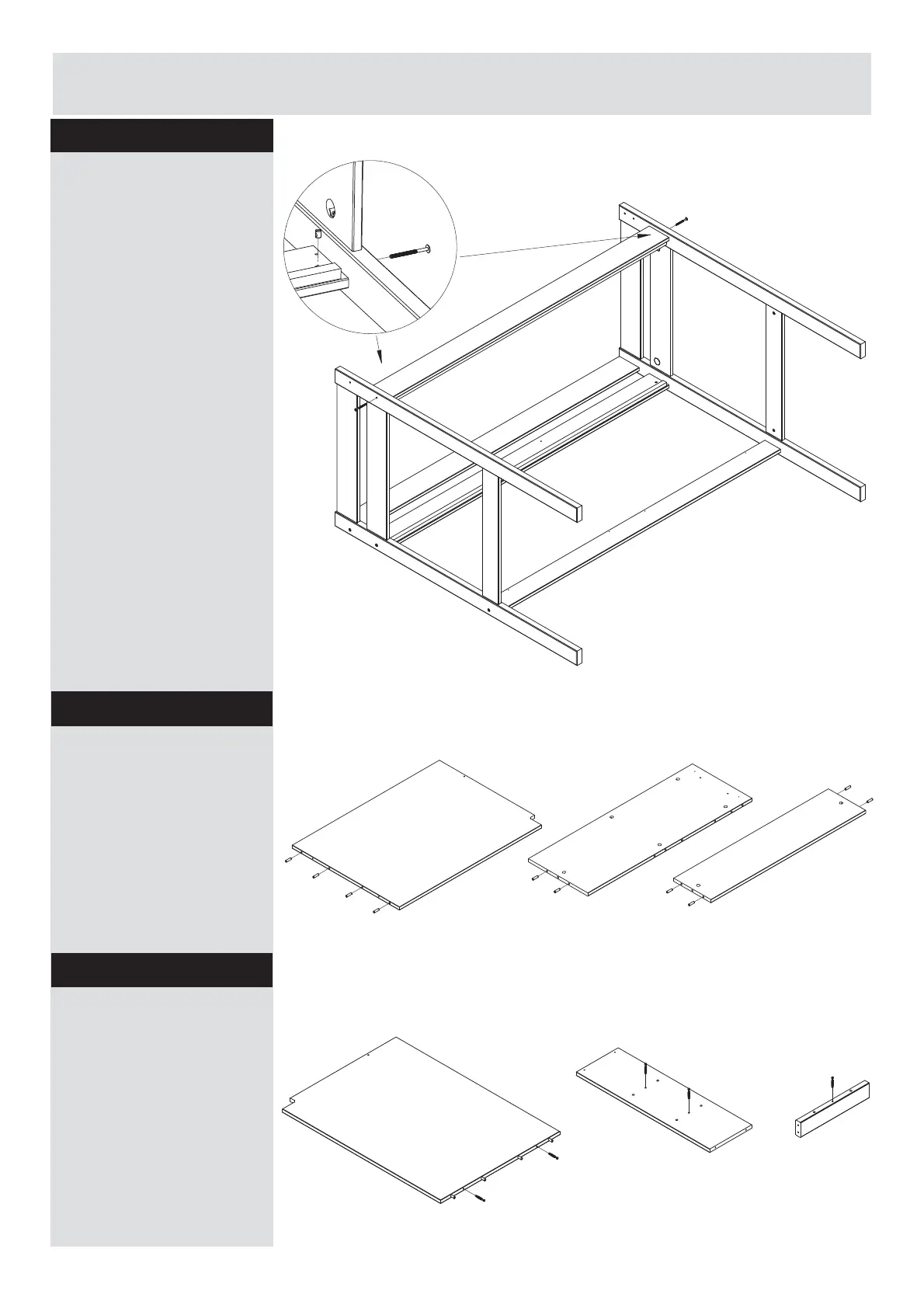

Assembly Instructions
Step 1
Fitting dowels
Insert wooden dowels
A
into the holes in bed rails
1
, headboard rails
2
,
3
, footboard
6
and
bottomrail
7
.
Note: It may be
nessesary to tap the
dowel in very gently with
small hammer.
Insert wooden dowels
H
into the holes in
headboard panels
4
and
5
.
Note: It may be
nessesary to tap the
dowel in very gently with
small hammer.
Assembling
headboard
Position details and
attach headboard panels
WRKHDGERDUGUDLOVOLNH
showed on illustration at
side.
Step 2
A
A
A
A
A
H
A
A
A
A
A
A
1
1
2
6
7
A
H
H
H
3
4
5
2
5
3 4
4
4
4
4
4
x 6
4
Step 5
Step 6
Step 7
In this step use this fitting:
In this step use this fitting:
In this step use this fitting:
D
D
E
D
H
A1
H
A1
H
A1
H
A1
G
G
G
G
G
C
1
C
16
C
16
C
17
C
19
C
18
C
14
E
D
H
A1
G
x2
x2
x14
x7
Insert dowels into the
holes in desks 16, 17 and
shelves 19.
Push Cross dowel into
hole in bed rail 1
the groove on Cross dowel
should be horizontal.
Push Bolt through each
leg to meet Cross dowel
and then fasten with the
Allen key.
E
D
Screw metal dowels into
holes of desk 16, vertical
shelf support 18 and steps 14
as shown using Phillips
screwdriver.
Do not overtighten.
G
H
A1
x4
x2
x2
x2
x2
x3
