Item Part No. Description Qty.
Item Part No. Description Qty.
REMARK:
1 30265 Engine 4.6 HP Robin 1
30159 Engine 5.5 HP Honda w/Oil Alert 1
30587 Engine 5.5 HP B & S Intek Pro 1
30294# 4.2 HP Yanmar (S-38's,S-52) 1
31236 Muffler Yanmar (S-38's,S-52,S-52D) 1
31237 Deflector Yanmar (S-38's,S-52,S-52D) 1
2 32288 Clutch 1
3 34711 V-Belt Kevlar Cord 1
47367 V-Belt (Yanmar) 1
4 29192 Belt Guard 1
5 29720-2 Deck Weld (Gas) 1
42361-2# Deck Weld (S-38's,S-52) (Diesel) 1
6 47014 Shock Mount 8
47014 Shock Mount (S-52T) 4
7 42702 Engine Brkt Adj Assy 1
8 27189-2 Bracket Handle (except S-52T) 2
9 32040 Urethane Bushing 2
10 21549-2 Handle 1
29382-2 Handle (S-52T) 1
11 46774 Plug 3/4 Npt Magnetic Sq. Hd. 1
12 29726-2 Base Machine (S-28's) 1
29725-2 Base Machine (S-38's) 1
29724-2 Base Machine (S-52's) 1
13 21542 Eccentric (S-28's) 1
21543 Eccentric (S-38's) 1
21544 Eccentric (S-52) 1
42726 Eccentric (S-52T) 1
14** 32033 O Ring (S-28's,S-38's) 2
32111 O Ring (S-52's) 2
15 22060 Cap & Brg Sheave End (S-28's) 1
22062 Cap & Brg Sheave End (S-38's) 1
22064 Cap & Brg Sheave End (S-52's) 1
16 22061 Cap & Brg Blind End (S-28's) 1
22063 Cap & Brg Blind End (S-38's) 1
22065 Cap & Brg Blind End (S-52's) 1
17* 32047 Oil Seal 2
18 28314 Offset Sheave (S-38's,S-52's) 1
34713 Sheave BK32H (S-28's) 1
19 35328 Bushing Taper Lock 1
20 55017 Decal 3400 RPM 1
21 55015 Decal Idle Engine 1
22 55141 Decal Front 1
23 55142 Decal Belt GD 1
24 21550-2 Bracket Engine 1
25 29107 Plate Trim (S-28, S-38,S-38D,S-52,S-52D) 1
26 47214 Water Tank (S-28A,S-38A,S-38DA) 1
27 38195 Cap (S-28A,S-38A,S-38DA) 1
28 46009 Valve & Strainer (S-28A,S-38A,S-38DA) 1
# Diesel Option (S-38D(A)and S-52D) - All parts are the same as S-38(A)and S-52 except for Items 1 and 5.
* Included in Item 15
** Included in Items 15 & 16

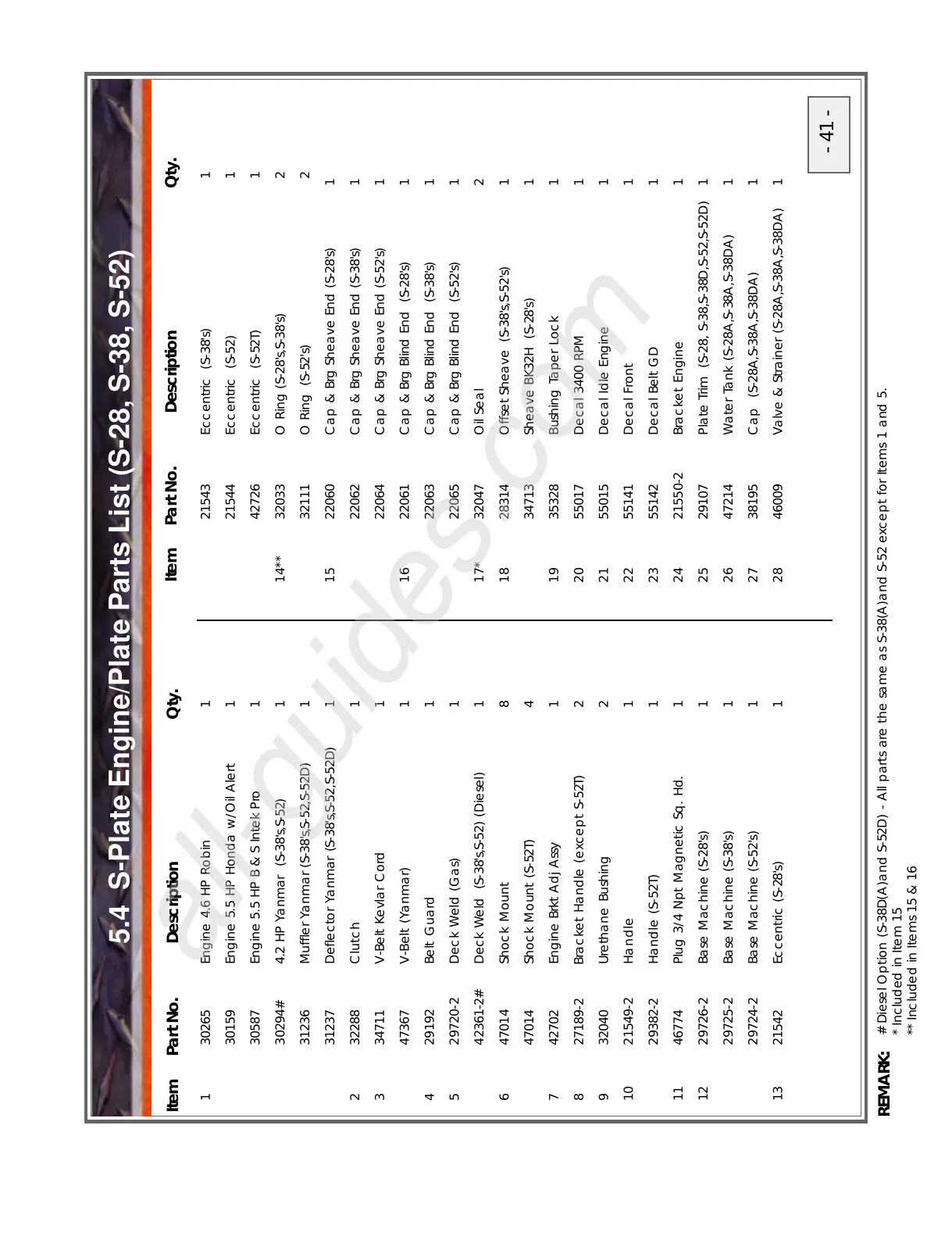

5.4 S-Plate Engine/Plate Parts List (S-28, S-38, S-52)
